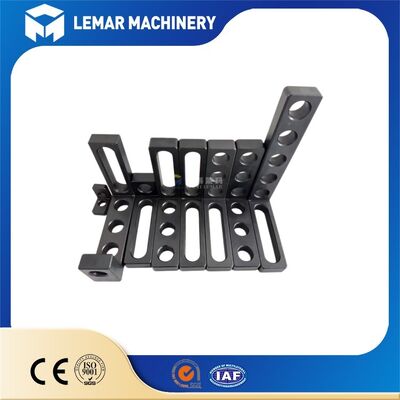

Positioning Angle Ruler and Positioning Flat Ruler for 3D welding tables
| MOQ: | 1 |
| Price: | 1-50 USD |
| Standard Packaging: | 3000*200*200mm |
| Delivery Period: | 3-7 work days |
| Payment Method: | L/C,D/A,T/T,Western Union,D/P |
| Supply Capacity: | 5000 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28/D16
Document
Compatible Hole System:
D16 / D28
Material:
High Quality 45# Carbon Steel
Surface Treatment:
Blackening / Gas Nitriding
Flatness:
≤ 0.05mm/1000mm
Verticality:
≤ 0.05mm/1000mm
Hardness:
HRC 35–42
Hole Tolerance:
H7 Precision Fit
Nitriding Layer Thickness:
0.3mm
Positioning Repeat Accuracy:
High Interchangeability For Batch Welding
Product Description
Positioning Angle Ruler and Positioning Flat Ruler for 3D Welding Tables
Product Specifications
- Material: 45# steel quenched and tempered, blackened and rust proof; Alternatively, 304 stainless steel available
- Hardness: HRC 35-40, resistant to impact and deformation
- Accuracy: Verticality ≤ 0.05mm/1000mm; Flatness ≤ 0.05mm/1000mm
- Aperture: D28 (diameter 28d10) or D16 (diameter 16d10), hole spacing 50mm ± 0.03mm
Product Specifications and Dimensions
| Description | Specifications and Dimensions | Weight (kg) | Explanation |
|---|---|---|---|
| Positioning angle ruler | 175x50x175-KC | 1.8 | Overall material processing |
| Positioning angle ruler | 175x50x275 | 2.4 | Overall material processing |
| Positioning angle ruler | 175x50x200 | 2.7 | Overall material processing |
| Positioning angle ruler | 150x75x75 | 2.9 | Overall material processing |
| Description | Specifications and Dimensions | Weight (kg) | Explanation |
|---|---|---|---|
| Positioning angle ruler | 175x50x300 | 3.2 | Overall material processing |
| Positioning angle ruler | 225x50x200 | 2.9 | Overall material processing |
| Positioning ruler | 100x50x25 | 0.7 | Overall material processing |
| Positioning ruler | 150x50x25 | 0.8 | Overall material processing |
| Description | Specifications and Dimensions | Weight (kg) | Explanation |
|---|---|---|---|
| Positioning ruler | 225x50x25 | 1.4 | Overall material processing |
| Positioning ruler | 300x50x25 | 1.6 | Overall material processing |
| Positioning ruler | 400x50x25 | 2.4 | Overall material processing |
| Positioning ruler | 500x75x25 | 5.8 | Overall material processing |
Besides the above specifications, our factory also supplies positioning flat rulers in other sizes. Please contact us for detailed information.
Product Comparison and Applications
| Item | Positioning Angle Ruler | Positioning Ruler |
|---|---|---|
| Shape | L-shaped (right angle) | Long strip (straight line) |
| Core Functionality | 90° right angle, vertical positioning | Line alignment, length/plane positioning |
| Installation Location | Platform plan/side (vertical positioning) | Platform plan/side (horizontal/straight) |
| Matching Usage | Square ruler + angle ruler = "L-shaped reference frame", quickly locates rectangular workpieces | |
Key Purchasing Considerations
- Hole matching: Must be consistent with the platform (D28 or D16), otherwise installation is not possible
- Accuracy priority: Verticality/flatness ≤ 0.05mm to avoid welding error accumulation
- Specification adaptation:
- Angle ruler: Choose according to the height/right angle size of the workpiece (150mm is most common)
- Flat ruler: Select according to the length of the workpiece/support span (150-300mm is commonly used)
- Material selection: 45# steel for ordinary welding; 304 stainless steel for corrosion-resistant scenarios
Frequently Asked Questions
What is the material and surface treatment?
Made of high-strength carbon steel, with black oxide / nitriding treatment for wear resistance, anti-rust and long service life.
What is the precision level?
Strict tolerance control: flatness and verticality within 0.05mm/1000mm, ensuring high-precision positioning for welding workpieces.
Can they be matched with other 3D welding table accessories?
Fully compatible with locking pins, support angles, clamping blocks and all standard 3D welding table accessories for quick assembly and positioning.
Do you accept OEM & custom logo?
Yes. OEM, custom sizes and laser logo are all available according to your requirements.
What is your delivery time?
Standard sizes are in stock; customized non-standard sizes take about 7-15 working days.
What payment terms do you accept?
We accept T/T, L/C, PayPal and other flexible payment terms.
