Industrial Grade 3D Welding Table Support Angle Iron
| MOQ: | 1 |
| Price: | 10-150 USD |
| Standard Packaging: | 3000*2000*200mm |
| Delivery Period: | 7-15 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 5000 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole System:
D16 / D28
Aperture:
D16: φ16mm；D28: φ28mm
Hole Pitch:
D16: 50mm；D28: 100mm
Wall Thickness:
10mm / 12mm / 14mm / 16mm
Material:
Q355 High Strength Steel / HT300 Cast Iron
Flatness:
≤0.1mm/m
Verticality:
≤0.15mm/200mm
Surface Treatment:
Gas Nitriding / Blackening
Load Capacity:
D16: 1–5 Ton；D28: 6-8 Ton
Structure Type:
Ordinary L-type / Reinforced Rib Triangle Type
Compatible Accessories:
Locking Pin, U-block, V-block, Clamp, Connecting Plate
Product Description

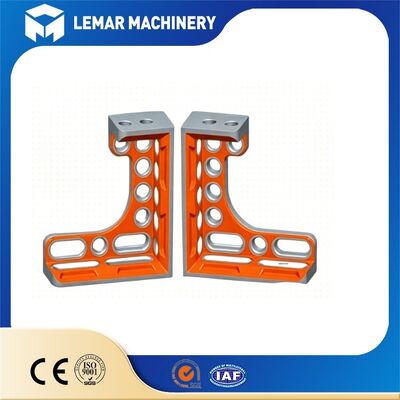

Industrial Grade 3D Welding Table Support Angle Iron
Industrial Grade 3D Welding Table Support Angle Iron
- Material: Q345/Q355 high-strength steel or HT300 cast iron, annealed and naturally aged for more than 6 months to eliminate internal stress and prevent deformation
- Main body shape: L-shaped (right angle) or right angled triangle (reinforced ribs), with the triangular version having stronger rigidity and impact resistance
- Hole layout: Standard holes are evenly distributed on both right angled surfaces, which can be combined with platforms, square boxes, and locking pins to achieve three-dimensional positioning
- Strengthening design: Thick wall + back reinforcement ribs to prevent deformation under heavy loads, industrial grade wall thickness is usually ≥ 12mm
Product Specifications
| Product Series | Hole Diameter | Flatness | Parallelism | Verticality | Finished Board Thickness |
|---|---|---|---|---|---|
| D28 | ∅28D10(+0.149/+0.065) | 0.1/1000 (mm) | 0.1/1000 (mm) | 0.1/200 (mm) | 24-25 (mm) |
| D16 | ∅16D10(+0.120/+0.050) | 0.1/1000 (mm) | 0.1/1000 (mm) | 0.1/200 (mm) | 12-12.5 (mm) |
- Equipped with panels for attaching upper structures.
- Connect with welding workbench or other components using connecting bolts, continuously adjust and lock.
- Three fully clamped surfaces with system holes, featuring rectangular holes for continuous adjustment, enabling precise scaling to adjust positioning dimensions.
- All system holes come with protective countersunk holes, perfect design, and ultimate functionality. Suggest ordering in pairs.
Production Process
- Whole CNC cutting, precision milling, drilling, hole spacing and angle forming in one go
- Stress relief annealing treatment eliminates internal stress during processing, ensuring long-term use without deformation
- Precision surface grinding ensures the accuracy of flatness and verticality
- Optional overall gas nitriding/blackening surface treatment
Core Functionality
- 90° Precise Positioning: Ensuring the verticality of the workpiece, with an angle error of ≤ 0.15mm after welding, replacing traditional angle gauges/fixtures
- Stereoscopic Support and Extension: Vertically/horizontally installed, extending the workbench, supporting large/ultra long workpieces (such as frames and bridges)
- Modular Combination: In combination with U-shaped/L-shaped square boxes, locking pins, V-shaped blocks and other accessories, specialized fixtures can be quickly built without the need for customized fixtures, reducing tooling time by 80%
- Heavy Duty Fixation: With the help of quick locking pins, firmly fix heavy workpieces to prevent welding displacement/deformation
Advantages (Compared to Traditional Tooling)
- High Precision: Geometric tolerance ≤ 0.15mm, ensuring welding consistency
- High Rigidity: Industrial grade material + reinforced design, no deformation under heavy load
- Strong Flexibility: Modular, versatile, adaptable to different workpieces, reducing tooling costs
- High Efficiency: Quick clamping/disassembly, no need for polishing/adjustment, improving welding efficiency by 30-50%
- Long Life: Nitrided treatment, wear-resistant and rust proof, with a service life of ≥ 10 years
Frequently Asked Questions
Q: What is the load capacity?
A: D16 series welding table: 1-5 tons; D28 series welding table: 6-8 tons for heavy duty workpieces.
Q: Can it match other brand welding tables?
A: Yes, our hole spacing, aperture and outer size follow international standard, compatible with most mainstream 3D welding table brands.
Q: Do you accept customized design?
A: Yes, we support custom size, special angle, thickened plate and logo engraving according to customers' drawings.
Q: What is the delivery time?
A: Standard sizes in stock within 3-7 days; customized order about 10-15 days.
Q: What is your MOQ?
A: Small order is acceptable, 1 piece for standard size; bulk order with better price.
