Disc horizontal quick clamp, square disc vertical quick clamp
| MOQ: | 1 |
| Price: | 10-50 USD |
| Standard Packaging: | 3000*2000*200mm |
| Delivery Period: | 7-10 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 5000 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28/16
Document
Clamping Force:
1.5–3.0 KN
Main Material:
45# Carbon Steel
Base Type:
Round Flange Disc
Surface Treatment:
Black Oxide / Galvanized
Weight:
0.8-1.3 Kg
Applicable Platform:
D16 (50mm Pitch) / D28 (100mm Pitch)
Adjustable Stroke:
20-35mm
Mounting Hole:
4×φ6.5 Mm
Operation Mode:
Horizontal Handle, 180° Rotation/Vertical Handle, 90° Rotation
Product Description

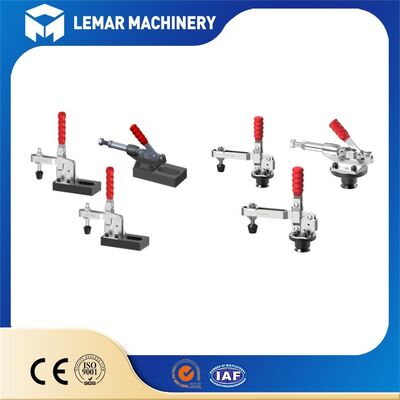

Disc Horizontal Quick Clamp & Square Disc Vertical Quick Clamp
Disc Horizontal Quick Clamp
Disc Base: A circular mounting base with 3-4 fixed holes, capable of 360° rotation and directional adjustment, suitable for curved/circular workbenches.
Horizontal: The handle swings horizontally, and the clamping force is parallel to the installation surface (lateral clamping).
Core components: disc base, elbow link, red PVC handle, adjustable pressure head (rubber/nylon anti-damage part).
Square Disc Vertical Quick Clamp
Square Disc Base: Square flange base with 4 fixing holes for more stable positioning, suitable for square/rectangular workbenches.
Vertical: The handle is pressed down vertically, and the clamping force is perpendicular to the installation surface (pressing down).
Core components: square base, elbow mechanism, vertical handle, adjustable travel pressure head.
Material and Specifications
Main body: SS400 carbon steel/45# steel, galvanized/chromate treated for rust prevention.
Handle: PVC red anti-slip sleeve, oil and temperature resistant.
Pressure head: Nylon/rubber (scratch resistant workpiece) or steel (heavy-duty).
| Model | Size (mm) | Weight (Kg) |
|---|---|---|
| D28 System | 50×20×28 | 0.8 |
| 68×20×28 | 0.8 | |
| 68×20×25 | 0.8 | |
| 130×60×25 | 1.3 | |
| 130×60×25 | 1.3 | |
| 130×20×25 | 1.3 | |
| D16 System | 50×20×16 | 0.8 |
| 68×20×16 | 0.8 | |
| 68×20×16 | 0.8 | |
| 130×65×12 | 1.3 | |
| 130×65×12 | 1.3 | |
| 130×50×12 | 1.3 |
Key Points for Installation and Use
- Base fixation: 3 bolts for discs and 4 bolts for squares, with a locking torque of 8-10N·m
- Pressure head adjustment: Fine tune the screw before clamping, pre-press 1-2mm to avoid overpressure damage to the workpiece
- Maintenance: Regularly apply lithium grease to the connecting rod/pin shaft to prevent jamming; Avoid using excessive force (≤ rated force)
Typical Applications
- Welding fixture: Tighten large frames/plates to prevent welding warping
- Machining fixture: Fixed blank/plate, used for drilling/milling/CNC machining
- Mold processing: Temporary fixation of mold plates/inserts for easy polishing/assembly
Core Differences and Selection
Base: Disc = 360° flexible; Square disk = more stable and resistant to vibration
Clamping direction: Horizontal = lateral, saving vertical space; Vertical = downward, with greater force
Force and stroke: Low horizontal force (200-1000N), short stroke; High vertical force (300-1500N) and long stroke
Selection suggestion: For low/round fixtures, choose a horizontal disc; For heavy/flat compression, choose a square disc vertically
Interested in purchasing Disc horizontal quick clamp and Square disc vertical quick clamp? Contact us for more detailed information.
