Accurate D16 Flexible 3D Welding Table With Standard 50mm Grid Holes
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Diameter:
16mm
Customization Capabilities:
Supports Customization/MultipleUnits Splicing
Working Face:
5-Sided Precision Machining
Verticality:
≤0.1mm/200mm
Countertop Material:
Q355 Steel/ Ht300 Cast Iron/Stainless Steel
Thickness:
12mm
Production Capacity:
50000PCS/Year
Flatness:
≤0.1mm/1000mm
Model NO:
D16
Highlight:
D16 flexible 3D welding table
,welding table with 50mm grid holes
,standard grid welding fixture table
Product Description

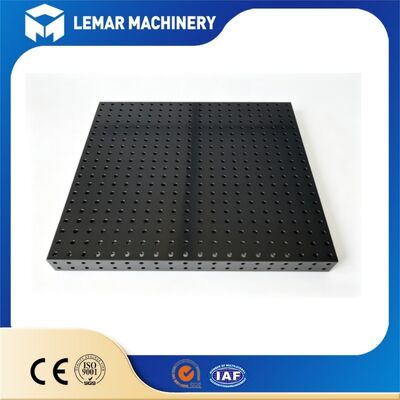

Accurate D16 Flexible 3D Welding Table With Standard 50mm Grid Holes
Product Overview
The Accurate D16 Flexible 3D Welding Table is a precision fixturing platform engineered for detailed metalwork, small assembly projects, and prototype fabrication. Built with the standard 16mm hole system on a 50mm grid pattern, this table delivers exceptional positioning accuracy and fine adjustment capability for delicate welding and assembly tasks.
The 3D five-sided design supports fixturing on the top surface and all four vertical edges, allowing fabricators to build complex small-scale structures with precision. The nitrided surface provides excellent hardness and spatter resistance, making it ideal for precision workshops, custom fabrication shops, and research and development facilities.
Product Parameters
| Parameter | Specification |
|---|---|
| Grid System | D16 - 16mm holes on 50mm centers |
| Hole Tolerance | H7 (16.000 ~ 16.018mm) |
| Positioning Accuracy | ±0.05mm repeatability |
| Tabletop Material | HT300 gray cast iron |
| Tabletop Thickness | 12mm |
| Surface Treatment | Nitrided (HV ≥ 550) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 3,000 kg |
| Working Height | 820mm (custom available) |
|
System |
Material |
Size(mm) |
Weight(kg) |
|
D28/D16 |
HT300 cast iron/Q355 steel |
1000*1000*200/150 |
300 |
|
D28/D16 |
HT300 cast iron/Q355 steel |
1000*2000*200/150 |
520 |
|
D28/D16 |
HT300 cast iron/Q355 steel |
1200*1200*200/150 |
400 |
|
D28/D16 |
HT300 cast iron/Q355 steel |
1200*2400*200/150 |
800 |
|
D28/D16 |
HT300 cast iron/Q355 steel |
1500*1000*200/150 |
420 |
|
D28/D16 |
HT300 cast ironQ355 steel |
1500*1500*200/150 |
600 |
|
D28/D16 |
HT300 cast iron/Q355 steel |
1500*2000*200/150 |
800 |
|
D28/D16 |
HT300 cast iron/Q355 steel |
1500*3000*200/150 |
1150 |
|
D28/D16 |
HT300 cast iron/Q355 steel |
2000*3000*200/150 |
1500 |
|
D28/D16 |
HT300 cast ironQ355 steel |
2000*4000*200/150 |
2100 |
Various sizes can be customized according to customer requirements.
Product Advantages
1. Superior Precision for Fine Work
With hole positioning accuracy of ±0.02mm and flatness tolerance below 0.03mm per meter, the D16 system delivers exceptional precision for small parts and delicate assemblies. The tighter 50mm grid spacing allows finer incremental adjustments than larger hole systems, making it perfect for detailed fabrication work where every millimeter counts.
2. Compact 50mm Grid Pattern
The standard 50mm grid provides twice the positioning density of 100mm systems, giving you more fixture placement options for small-scale projects. This denser pattern lets you secure smaller workpieces more effectively and create complex fixturing setups that would be impossible with wider grid spacing.
3. Five-Sided 3D Modular Capability
This table supports fixturing on the top surface and all four vertical side edges, providing five working surfaces in a single platform. This multi-directional clamping capability enables vertical welding, angled assemblies, and three-dimensional jig building, dramatically expanding what you can accomplish on a single work surface.
4. Universal D16 Accessory Compatibility
The 16mm hole system on a 50mm grid is a widely adopted industry standard for precision welding tables. It is fully compatible with all major brand D16 accessories including precision pins, mini clamps, angle stops, and support blocks, giving you access to a vast ecosystem of fixturing components.
5. Nitrided Surface for Durability
The nitrided surface treatment achieves hardness of HV600 to HV800, providing outstanding resistance to welding spatter, surface scratches, and corrosion. Weld spatter cleans off easily without damaging the precision surface, and the hardened layer maintains dimensional accuracy far longer than untreated or painted table tops.
6. Lightweight and Space Efficient
Designed for precision work rather than heavy load applications, the D16 table is more compact and lighter than D28 heavy-duty models. This makes it easier to position within your workshop, more affordable for small businesses, and ideal for dedicated precision workstations where floor space is at a premium.
Product Applications
Prototype Development – R&D departments, engineering labs, and new product development
Precision Sheet Metal – Thin gauge welding, sheet metal enclosures, and electronic chassis
Tube and Pipe Fabrication – Small diameter tubing, handrails, furniture frames, and bicycle frames
Custom Metal Furniture – Designer furniture, artistic metalwork, and decorative pieces
Aerospace Components – Lightweight structures, brackets, and small assembly fixtures
Automotive Customization – Roll cages, brackets, mounts, and custom vehicle modifications
Education and Training – Technical schools, welding training centers, and vocational programs
Jewelry and Small Parts – Fine metalwork, small assemblies, and precision component welding
Frequently Asked Questions
What is the main difference between D16 and D28 welding tables?
D16 tables use 16mm holes on a 50mm grid and are designed for precision work with lighter loads and smaller components. D28 tables use 28mm holes on a 100mm grid for heavy-duty fabrication with higher load capacity and stronger clamping forces. Choose D16 for detailed, small-scale work and D28 for heavy structural welding.
Can I use D16 accessories from other manufacturers on your table?
Yes. Our D16 system follows the international industry standard for hole diameter and 50mm grid spacing. It is fully compatible with D16 fixturing accessories from all major brands, so you can use your existing tooling or source components from any supplier that offers standard D16 products.
What is the maximum weight the D16 table can support?
Standard D16 tables support loads from 0.5 tons to 2 tons depending on the specific model and size. This capacity is more than sufficient for precision fabrication, sheet metal work, small assemblies, and prototype development. For heavier structural work, we recommend our D28 heavy-duty table series.
Do you offer custom sizes and configurations?
Yes. We can manufacture custom table sizes to match your specific workspace and project requirements. We also offer optional upgrades including casters for mobility, additional accessory kits, and special surface treatments. Contact our sales team with your specifications for a custom quotation.
How do I clean and maintain the D16 welding table surface?
The nitrided surface is very low maintenance. After each use, simply brush or scrape off welding spatter residue – it releases easily from the hardened surface. For extended storage periods, apply a thin coat of rust preventive oil to all machined surfaces. No special cleaners or treatments are required for regular daily use.
What warranty coverage do you provide for D16 welding tables?
We offer a 2-year warranty on the table structure and all accessories and optional components. Our technical support team is available to help with fixturing questions, setup guidance, and any issues that may arise. We also stock replacement parts for fast delivery if needed.
Contact Us
Contact us today for a free consultation and quote. Our team will help you select the perfect D16 welding table and accessory package for your shop.
Phone: +8615995269947
Email: evasummer@lemarmetal.com
Address: NO.280-25 Xicheng Road, Liangxi District Wuxi, CN
