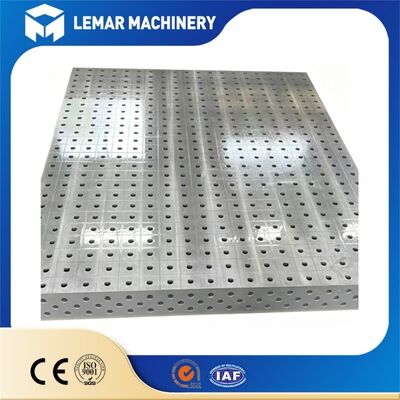

Professional Heavy Duty Flexible 3D Modular D28 Welding Table
| MOQ: | 1 |
| Price: | 500USD-1000USD |
| Standard Packaging: | 4000mm*2000mm*200mm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Heavy Duty D28 welding table
,Flexible 3D modular welding table
,Professional welding fixture table
Our Flexible 3D Modular D28 Welding Table redefines workshop efficiency with its highly adaptable fixturing system. Built on the industry-standard D28 hole platform with a 100×100mm grid, this heavy-duty table enables fast, tool-free reconfiguration for any workpiece geometry—from simple 2D brackets to complex 3D assemblies.
Constructed from premium Q355 structural steel with a 20mm thick tabletop and reinforced rib structure, it supports up to 30 tons of uniform load. The five-sided precision-machined surfaces allow clamping in any direction, giving you complete freedom to design and build fixtures in minutes, not hours. Cut setup time by up to 70% and maximize your workshop throughput with a system that grows with your business.
| Item | Parameters |
|---|---|
| Base Material | Q355 low-alloy high-strength steel |
| Surface Treatment | Five-sided full-depth integral nitriding |
| Surface Hardness | HV 450-1000 |
| Hole Specification | D28 (28mm diameter), grid spacing 100±0.05mm |
| Flatness Accuracy | ≤0.1mm / 1000mm |
| Hole Center Tolerance | ±0.03mm |
| Tabletop Thickness | 25mm |
| Max Static Load | 12 tons |
| Working Surfaces | Five-sided operation (top plus four vertical sides) |
| Custom Service | Multiple standard sizes |
Industry-standard 28mm fixture holes on a 100×100mm grid with 5-sided access. Build any fixture configuration in minutes—no drilling, no welding, no permanent modifications. Reconfigure for new projects as fast as you can unclamp and reposition.
High-strength Q355B structural steel construction with 20mm thick tabletop and reinforced internal ribs. 30-ton uniform load capacity—flexible doesn't mean flimsy. Built to handle heavy industrial fabrication day in and day out.
Full CNC finishing on all 5 working surfaces with ≤ 0.15mm/m flatness tolerance (ISO 2768-mK). Clamp horizontally, vertically, or at any angle—every surface is a precision reference for consistent, accurate results.
Works seamlessly with all major D28 fixturing brands: screw clamps, stop blocks, angle brackets, locating pins, V-blocks, riser blocks, and more. Start with a basic set and expand your tooling library as your needs grow.
- Job Shops and Custom Fabrication — Fast changeover between diverse customer projects
- Prototype development and research and development — Quick iteration and testing of new designs
- Mixed Production Lines — Handle multiple product types on one platform
- Heavy Equipment Manufacturing — Large, complex assemblies with frequent reconfiguration
- Automotive and Custom Builds — One-off and small-batch custom fabrication
- Training and Education Centers — Versatile platform for teaching welding and fixturing
- Tabletop: The main welding table body is packed in a heavy-duty, fumigation-free solid wood plywood crate, featuring internal foam protection and reinforced corner bracing to prevent damage during ocean transit.
- Fixture Kit: Components are individually wrapped in anti-rust paper and organized within a metal tool case.
- Legs and Accessories: Packed in separate boxes to prevent scratching the nitrided tabletop surface during transport.
