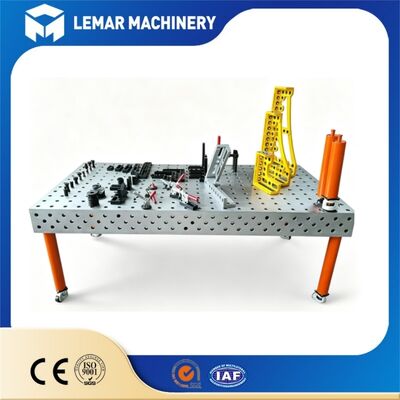

Deform-Resistant 3D D28 Welding Table With Standard 100mm Grid
| MOQ: | 1 |
| Price: | 500USD-1000USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 10-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Applicable Scenarios:
Mass Welding Production Line And Automated Workshop
Customization Service:
Customizable Size, Load Capacity And Table Combination
Table Surface Treatment:
Deep Nitriding Treatment, Anti-spatter And Anti-corrosion
Structural Feature:
Thickened Integrated Steel Base, Anti-deformation
Continuous Operation:
24 Hours Non-stop Stable Industrial Operation24 Hours Non-stop Stable Industrial Operation
Grid Hole Standard:
D28 Standard 3D Three-Dimensional Grid Hole System
Positioning Accuracy:
0.02mm Ultra High Repeat Positioning Precision
Supporting Accessories:
Complete Modular Clamp And Positioning Pin Kits
Production Advantage:
60% Less Manual Work, Lower Rework & Scrap Rate
Product Description
Deform-Resistant 3D D28 Welding Table With Standard 100mm Grid
Durable Mobile D28 Grid Full Accessory Organized Industrial Welding Table
Product Overview
Our Deform-Resistant 3D D28 Welding Table is engineered to maintain perfect flatness and structural integrity even under the heaviest loads and most demanding welding conditions. Built from thick solid steel plate with stress-relieved construction and reinforced ribbing, this table resists warping, sagging, and deformation — keeping your weldments accurate year after year.
The standard 100mm grid pitch with D28 holes ensures universal compatibility with industry-standard fixturing accessories. Five-sided 3D fixturing capability allows you to mount clamps, stops, and brackets on any surface, while the precision-machined grid guarantees consistent, repeatable positioning every time.
Ideal for heavy fabrication, structural steel, and high-volume production where dimensional accuracy and long-term structural stability are non-negotiable.
Product Advantages
1. Zero Deformation Under Heavy Load
Thick 100mm solid steel plate with internal rib reinforcement and full stress-relief treatment. The table stays flat and true even under maximum rated load — no sagging, no bowing, no gradual deformation over time.
2. Standard 100mm Grid — Universal Compatibility
The industry-standard 100mm grid pitch with D28 holes works with all major brands of fixturing accessories. Your existing clamps, stops, and brackets will fit perfectly — no need to replace your entire tooling inventory.
3. Five-Sided 3D Fixturing
Precision D28 holes on all five working faces enable true 3D modular fixturing. Build horizontal, vertical, and angled jigs for complex frames, boxes, and tubular structures in minutes.
4. Stress-Relieved for Long-Term Accuracy
Every steel plate undergoes full stress-relief heat treatment before machining. This eliminates internal stresses that cause warping and dimensional shift over time — the table stays accurate for years.
5. CNC Machined Grid Precision
All holes are CNC drilled in a single setup to ensure perfect 100mm spacing and perpendicularity. Every hole is consistent, every position is repeatable — no misalignment issues with accessories.
6. Nitrided Wear-Resistant Surface
Deep nitriding treatment creates a hard, spatter-resistant surface (≥HV600) that protects against daily wear, welding spatter, and corrosion. The table surface stays smooth and precise 3-5 times longer than untreated steel.
Product Applications
- Heavy Structural Steel Fabrication — Large beams, columns, heavy plate welding
- Bridge and Infrastructure — Structural component fabrication, heavy load assembly
- Automotive and Truck Frames — Chassis welding, frame straightening, heavy component assembly
- Shipbuilding and Marine — Hull sections, pipe racks, structural welding
- Railway and Rolling Stock — Bogie frames, car body structures, heavy component welding
- Mining and Heavy Equipment — Equipment frames, bucket fabrication, heavy repair work
- Pressure Vessel Manufacturing — Vessel supports, nozzle alignment, heavy assembly
- Tool and Die Shops — Large fixture building, precision assembly work
Customer Feedback
Shipping and Delivery
Frequently Asked Questions
Q1: What does "deform-resistant" actually mean? How is it tested?
A: Our tables are built with 100mm thick solid steel plate, stress-relieved before machining, and reinforced with internal ribbing. Under full rated load, deflection is ≤0.05mm — effectively zero deformation for practical welding purposes. Each table is load-tested and flatness-verified before shipment.
Q2: Is the 100mm grid compatible with other brands of D28 fixtures?
A: Yes. The 100mm grid pitch and D28 hole diameter follow industry standards. Fixtures from Siegmund, Demmeler, and other major brands will work on our table. No adapters or modifications needed.
Q3: Will the table warp or deform over time from welding heat?
A: No. The stress-relieved thick steel plate and nitrided surface are designed to handle welding heat without warping. While localized heating can cause minor temporary expansion, the table returns to its original flatness once cooled.
Q4: How thick is the tabletop? Can I get a thicker plate?
A: Standard thickness is 100mm, which is sufficient for most heavy industrial applications. We can manufacture tables with 120mm, 150mm, or thicker plates for extreme heavy-duty requirements. Contact us for custom pricing.
Q5: What is stress relief, and why is it important?
A: Stress relief is a heat treatment process that removes internal stresses from the steel plate caused by rolling and cutting. Without stress relief, these internal stresses can cause the table to warp or deform over time — especially after welding heat. Our stress-relieved tables stay flat for years.
Q6: How do you guarantee flatness over time?
A: Three factors: (1) Stress-relieved steel plate — no internal stresses to cause warping. (2) Thick solid construction — rigid enough to resist deflection under load. (3) Nitrided surface — resists wear and surface degradation. We guarantee flatness within ±0.1mm/m² for 5 years.
