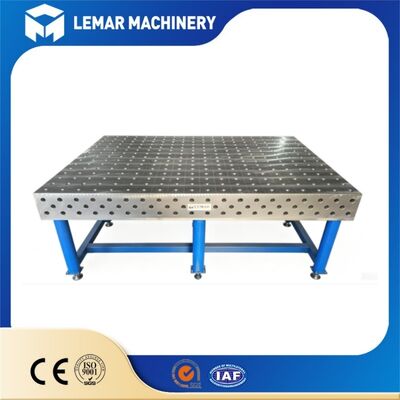

Industrial Precision D28 Flexible 3D Steel Modular Welding Table
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Model NO:
D28
Diameter:
28mm
Countertop Material:
Q355 Steel/ Ht300 Cast Iron/Stainless Steel
Payment Currency:
Dollar
Exporting Country:
The Whole World
Flatness:
≤0.1mm/1000mm
Thickness:
25mm
Customization Capabilities:
Supports Customization/MultipleUnits Splicing
Verticality:
≤0.1mm/200mm
Highlight:
Industrial D28 steel welding table
,Flexible 3D modular welding table
,Precision welding fixture table
Product Description
Industrial Precision D28 Flexible 3D Steel Modular Welding Table
Product Overview
Our Industrial Precision D28 Flexible 3D Steel Modular Welding Table is built for professional manufacturing environments where accuracy and adaptability matter equally. Crafted from premium structural steel with full five-sided CNC machining, this heavy-duty platform delivers ≤0.15mm/m flatness precision — meeting ISO 2768-mK standards for consistent, reliable performance.
The industry-standard D28 hole system on a 100×100mm grid enables rapid, tool-free reconfiguration for any workpiece geometry. Build 2D or 3D fixtures in minutes, not hours, and reconfigure instantly for new projects. With up to 30 tons of uniform load capacity and full compatibility with all major D28 fixturing brands, this table combines industrial strength with modular flexibility — one platform that adapts to every job.
Product Parameters
| Parameter | Specification |
|---|---|
| Grid System | D28 – 28mm holes on 100mm centers |
| Hole Tolerance | H7 precision |
| Tabletop Material | HT300 gray cast iron / Q355 steel |
| Tabletop Thickness | 100mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 5,000 kg per table |
| Standard Sizes | 1500×1000, 2000×1000, 3000×1500mm |
| Leg Height | 850mm (custom heights available) |
| Leg Construction | 80×80mm square tube, 5mm wall |
| Leveling Feet | M24 threaded, 50mm pad |
Product Sizes
| System | Material | Size(mm) | Weight(kg) |
|---|---|---|---|
| D28/D16 | HT300 cast iron/Q355 steel | 1000*1000*200/150 | 300 |
| D28/D16 | HT300 cast iron/Q355 steel | 1000*2000*200/150 | 520 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*1200*200/150 | 400 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*2400*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1000*200/150 | 420 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1500*200/150 | 600 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*2000*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*3000*200/150 | 1150 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*3000*200/150 | 1500 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*4000*200/150 | 2100 |
Product Advantages
-
10+ Year Rigidity — 20mm Q355 steel with reinforced ribs. Zero warpage, decade-long precision.
-
5-Sided 360° Fixturing — Clamp any direction, all from one precision reference. No custom jigs needed.
-
70% Faster Setup — Reconfigure in minutes, not hours. More billable welding time, less fixture building.
-
Spatter-Resistant Surface — Weld beads pop off easily. Low maintenance, gets smoother with use.
Product Applications
- Heavy Equipment Manufacturing — Precision assembly of construction machinery, agricultural equipment, mining machinery
- Automotive and Transportation — Chassis fabrication, frame welding, custom vehicle builds
- Structural Steel Fabrication — Steel structures, beams, columns with precision requirements
- Robotic Welding Cells — Automated production lines, consistent batch fixturing
- Job Shops and Custom Fabrication — Fast changeover between diverse customer projects
- General Industrial Manufacturing — Heavy-duty assemblies, precision component production
Customer Feedback
Shipping and Delivery
Why Choose Our Industrial Flexible D28 welding Table?
-
✅ Industrial Precision — ISO 2768-mK certified flatness for consistent, accurate results every time✅ Ultimate Flexibility — Reconfigure in minutes; one table replaces dozens of custom jigs✅ Heavy-Duty Strength — 30-ton load capacity with premium steel construction✅ Standard Compatibility — D28 system works with all major brands; no vendor lock-in✅ Scalable Design — Add tables, accessories, and upgrades as your production grows✅ Proven ROI — Cut setup time by up to 70%, reduce fixture costs, increase workshop throughput
FAQ
Q1: What does "industrial precision" mean exactly?
A: It means the table is CNC machined on all five sides with ≤0.15mm/m flatness tolerance, certified to ISO 2768-mK standards. This level of precision ensures consistent alignment and repeatable positioning for critical manufacturing applications.
Q2: How flexible is the modular system really?
A: You can build virtually any 2D or 3D fixture configuration using standard D28 accessories. Most setups can be reconfigured in 5–30 minutes — compared to hours or days for custom welded jigs.
Q3: What's the difference between this and the Nitrided series?
A: This Industrial Flexible series focuses on precision and modular versatility with a standard machined surface. The Nitrided series adds premium nitriding surface treatment for enhanced wear resistance and spatter protection. Both use the same D28 hole system and precision standards.
Q4: Can multiple tables be joined together?
A: Yes. All four sides are precision-machined for seamless joining using locating pins. Tables can be arranged side-by-side, end-to-end, or in T/L configurations for oversized workpieces.
Q5: Are D28 accessories from other brands compatible?
A: Absolutely. Our D28 system follows the industry-standard 28mm hole diameter and 100×100mm grid pitch, so it's fully compatible with all major D28 fixturing brands.
Q6: What warranty do you provide?
A: We offer a 1-year warranty against manufacturing defects and lifetime technical support.
Ready to build the perfect welding setup?
Our engineering team specializes in custom fixturing solutions for industrial manufacturing. Send us your workpiece drawings, production requirements, or workshop layout today for a free technical consultation and factory-direct quote. One flexible platform — unlimited production possibilities.
