Modular Nitrided Positioning D28 Welding Table For Metal Fabrication Shops
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI,CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Model NO:
D28
Condition:
New
Flatness:
≤0.1mm/1000mm
Precision:
0.1
Thickness:
25mm
Working Face:
5-Sided Precision Machining
Export Port:
Shanghai
Customization Capabilities:
Supports Customization/MultipleUnits Splicing
Verticality:
≤0.1mm/200mm
Product Description

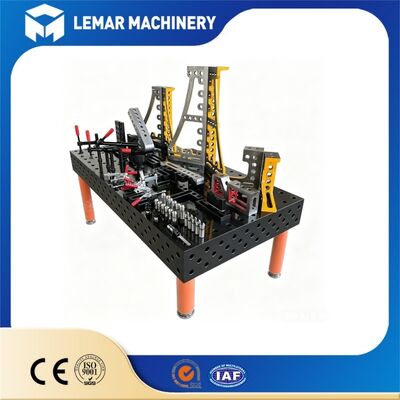

Modular Nitrided Positioning D28 Welding Table For Metal Fabrication Shops
Product Overview
Engineered for professional metal fabrication shops, our D28 Modular Nitrided Positioning Welding Table delivers unmatched versatility, precision, and durability. Built from premium Q355 structural steel with a state-of-the-art nitrided surface treatment, this 3D welding table system features a 28mm grid hole pattern that enables rapid fixturing, accurate positioning, and repeatable setups for every welding project.
Whether you're producing custom metal frames, industrial enclosures, automotive components, or structural assemblies, the D28 modular system adapts to your workflow — reducing setup time by up to 70% compared to traditional flat tables.
Product Specifications
D16 System (50x50mm Grid)
Hole diameter: d16mm (H7 high precision tolerance)
Matching bolt: M12Single pin clamping force: 4.5T, shear resistance: 22T
Best for: Sheet metal, aluminum frames, small chassis, stainless steel parts, robot
small workstation
Feature: Dense grid, ultra-precise positioning for small and medium workpieces
Hole diameter: d16mm (H7 high precision tolerance)
Matching bolt: M12Single pin clamping force: 4.5T, shear resistance: 22T
Best for: Sheet metal, aluminum frames, small chassis, stainless steel parts, robot
small workstation
Feature: Dense grid, ultra-precise positioning for small and medium workpieces
D28 System (100x100mm Grid)
Hole diameter: o28mm (H7 high precision tolerance)
Matching bolt: M20
Single pin clamping force: 8T, shear resistance: 40T
Best for: Thick steel plates, chassis, construction machinery, vehicle frames, heavy
structural parts
Feature: Super load-bearing, strong rigidity for heavy industrial welding
Hole diameter: o28mm (H7 high precision tolerance)
Matching bolt: M20
Single pin clamping force: 8T, shear resistance: 40T
Best for: Thick steel plates, chassis, construction machinery, vehicle frames, heavy
structural parts
Feature: Super load-bearing, strong rigidity for heavy industrial welding
Key Advantages
01 — Precision Engineering: Micron-Level Flatness for Zero Welding Defects
✅ Overall table flatness controlled within ±0.1mm/m, verified by CMM inspection before shipment
✅ D28 holes machined with CNC precision boring — position tolerance ±0.05mm for consistent, repeatable fixturing every time
✅ Minimal surface distortion after nitriding treatment — maintains original accuracy even after years of heavy use
✅ Eliminates the industry pain point of welded parts coming out distorted or misaligned
02 — Efficiency Boost: 70% Faster Setup, 3x Daily Throughput
✅ 28mm bore size + 100mm grid system — plug-and-play, no marking, drilling, or tack welding required for positioning
✅ 200+ standard fixture accessories in stock — clamps, stops, and locating pins ready when you need them
✅ Modular design means fixtures are reusable — switching jobs only takes a few adjustments
✅ Cuts setup time from "half a day per fixture" to "10 minutes flat" — dramatically increases equipment uptime
03 — Durability: Nitrided Surface Lasts 10+ Years Like New
✅ Surface hardness of 60–65 HRC — 3 to 5 times harder than ordinary steel plate
✅ Weld spatter doesn't stick to the table surface — chips off easily with a single tap, no frequent grinding needed
✅ Wear-resistant, rust-proof, and corrosion-resistant — holds up even in humid workshop environments
✅ One-time investment with long service life — total cost of ownership is far lower than replacing standard tables every year
04 — Versatility: One System for All Welding Jobs
✅ Supports 3D fixturing — build horizontally, vertically, or at any angle
✅ Works for everything from small parts to large structures, from one-off custom jobs to batch production
✅ Expandable by joining multiple tables — grow your work surface as your business scales
✅ Compatible with industry-standard D28 series accessories — no vendor lock-in for future purchases
Applications
- Custom Metal Fabrication — Frame welding, enclosure assembly, and prototype development
- Automotive and Transportation — Chassis fabrication, roll cages, and exhaust systems
- Industrial Machinery — Equipment frames, conveyor systems, and structural components
- Agricultural Equipment — Implement frames, brackets, and structural weldments
- Architectural Metalwork — Handrails, gates, structural beams, and decorative elements
Customer Feedback
Shipping & Delivery
Ready to enhance your workshop productivity?
Invest in our Nitrided D28 Modular Welding Table for repeatable accuracy, faster setup and long-lasting performance.
Send us an inquiry to receive your tailored offer
Invest in our Nitrided D28 Modular Welding Table for repeatable accuracy, faster setup and long-lasting performance.
Send us an inquiry to receive your tailored offer
