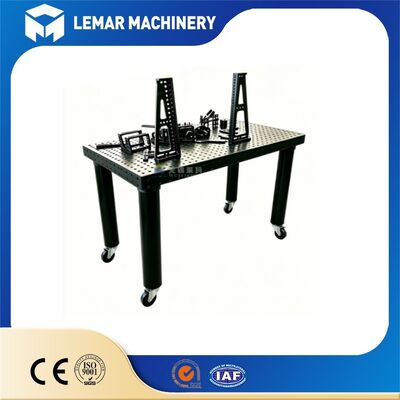

D16 3D Welding Table with Fixture Accessories Set
| MOQ: | 1 |
| Price: | 500-3000 USD |
| Standard Packaging: | 3000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole Diamete:
16mm
Table Material:
HT300 High-strength Cast Iron / Q355 Structural Steel
Flatness Tolerance:
±0.1mm / 1000mm
Positioning Accuracy:
±0.02mm
Working Surface:
5-sided Full Hole Design (top + Four Side Faces)
Load Capacity:
2000kg–5000kg
Surface Treatment:
Gas Nitriding + Black Oxide Anti-rust Treatment
Grid Pitch:
50mm × 50mm
Feature:
Modular Combination, Fast Clamping, No Marking Required
Product Description
D16 3D Welding Table with Fixture Accessories Set
Product Overview
- Table Material: High quality cast iron HT250/HT300 or Q355 steel, with strong rigidity, wear resistance, and deformation resistance
- Surface Treatment: Gas nitriding, hardness HV450-500, rust proof, high temperature resistant, anti welding slag adhesion, life increased by 3-5 times
- Plane Accuracy: Levelness ±0.1mm/1000mm, verticality ±0.1mm, ensuring welding consistency
- 5 Side Openings: D16 holes evenly distributed on top and sides for expanding clamping, vertical positioning, or connecting auxiliary platforms
- Grid Reference: 50mm x 50mm grid line with measuring ruler for direct coordinate reading without marking or aligning
Specifications and Dimensions
| NO. | Product Type | Size (mm) | Height (mm) | Number of Compatible Support Legs |
|---|---|---|---|---|
| 1 | 3D Steel / Cast iron Welding table | 1000x1000 | 200/150/100 | 4 |
| 2 | 3D Steel / Cast iron Welding table | 1000x1200 | 200/150/100 | 4 |
| 3 | 3D Steel / Cast iron Welding table | 1000x1500 | 200/150/100 | 4 |
| 4 | 3D Steel / Cast iron Welding table | 1000x2000 | 200/150/100 | 4 |
| 5 | 3D Steel / Cast iron Welding table | 1500x1500 | 200/150/100 | 4 |
| 6 | 3D Steel / Cast iron Welding table | 2400x1200 | 200/150/100 | 4 |
| 7 | 3D Steel / Cast iron Welding table | 3000x1500 | 200/150/100 | 4 |
| 8 | 3D Steel / Cast iron Welding table | 4000x2000 | 200/150/100 | 4 |
| 9 | 2D Steel / Cast iron Welding Table | 1000×1000 | 200/150/100 | 4 |
| 10 | 2D Steel / Cast iron Welding Table | 1200×1200 | 200/150/100 | 4 |
| 11 | 2D Steel / Cast iron Welding Table | 1500×1500 | 200/150/100 | 4 |
| 12 | 2D Steel / Cast iron Welding Table | 2000×1000 | 200/150/100 | 4 |
Standard Fixture Accessory Set
Our company provides a basic fixture accessory package that meets customers' basic tooling requirements.
Flexible Configuration Options
We provide complete standard basic accessories to meet one-stop needs for beginners and small factories, while also supporting individual retail of any accessory for replacement, repair, or expansion.
Complete specifications, sufficient inventory, fast delivery, and we can recommend reasonable configurations according to your actual working conditions.
Cost Savings and Efficiency Benefits
- Replaces traditional marking, modeling, and self-made simple fixtures
- Faster clamping and more accurate positioning
- Significantly reduces tooling construction time
- Reduces reliance on manual labor and experienced welder requirements
- High reuse rate with one-time investment and long-term cyclic use
- Lower overall production costs
Frequently Asked Questions
Q: Do you provide complete set or only separate parts?
A: We supply complete basic fixture accessory sets, and also support single fixture & spare parts separate sales. You can buy as your actual need.
Q: What is the positioning accuracy?
A: Precision CNC machined, positioning accuracy up to ±0.02mm, stable clamping, no displacement during welding, effectively avoid welding deformation.
Q: What is your MOQ?
A: Standard fixture set 1 set MOQ. Separate small parts support small batch order, no strict MOQ.
Q: What is your delivery time?
A: Standard sets and regular parts are in stock, delivery within 3-7 working days. Custom package needs 10-15 working days.
Q: Which shipping terms do you support?
A: We support FOB, CIF, CFR, EXW, DDP all terms. We can quote sea freight, air freight or express as your request.
Q: Do you provide after-sales support?
A: Yes. We provide professional installation guidance, usage instruction and lifetime technical consultation. Spare parts can be supplied at any time.
Q: Is the fixture easy to install and use?
A: Modular design, quick assembly and disassembly, no professional skills needed. We also provide operation manual for reference.
For more information on the D16 3D Welding Table with Fixture Accessories Set, get in touch with our team today.
