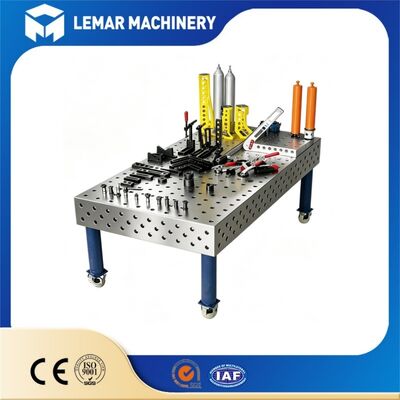

Modular Expandable D28 Welding Fixture Table For All Fabrication Projects
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Modular welding fixture table
,Expandable D28 fabrication table
,Welding fixture table for fabrication
One table. Endless possibilities. Our Modular Expandable D28 Welding Fixture Table is the most versatile work surface you'll ever own. Built around the industry-standard 28mm grid system on 100mm centers, this table adapts to every project—from small custom parts to large structural weldments.
Start with a single table and expand as your business grows. Bolt tables together side-by-side, add extension leaves, swap out accessories, and reconfigure your workstation in minutes. No more buying a new table every time your needs change—invest once, scale forever.
| Parameter | Specification |
|---|---|
| Grid System | D28 – 28mm holes on 100mm centers |
| Hole Tolerance | H7 precision |
| Tabletop Material | HT300 gray cast iron / Q355 steel |
| Tabletop Thickness | 100mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 5,000 kg per table |
| Standard Sizes | 1500×1000, 2000×1000, 3000×1500mm |
| Leg Height | 850mm (custom heights available) |
| Leg Construction | 80×80mm square tube, 5mm wall |
| Leveling Feet | M24 threaded, 50mm pad |
| System | Material | Size(mm) | Weight(kg) |
|---|---|---|---|
| D28/D16 | HT300 cast iron/Q355 steel | 1000*1000*200/150 | 300 |
| D28/D16 | HT300 cast iron/Q355 steel | 1000*2000*200/150 | 520 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*1200*200/150 | 400 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*2400*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1000*200/150 | 420 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1500*200/150 | 600 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*2000*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*3000*200/150 | 1150 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*3000*200/150 | 1500 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*4000*200/150 | 2100 |
Most welding tables are a fixed size—outgrow it, and you're stuck buying a whole new table. Ours is different. Start with a 1500×1000mm table for small jobs, then add a second when you take on larger projects. Need a 6-meter long workstation for structural steel? Bolt four tables together. Your investment grows with your business.
Different jobs need different setups. With our modular system, you can:
- Rearrange tables into L-shapes, U-shapes, or long straight runs
- Swap in specialized tops for specific jobs
- Add risers, outriggers, and material supports exactly where you need them
- Break down and reconfigure for each new project—no tools required for most changes
The 28mm hole diameter on 100mm centers is the global industry standard for heavy-duty welding tables. That means:
- Works with all major brand fixturing accessories
- Your existing clamps, stops, and angles fit perfectly
- No proprietary lock-in—use the tools you already own
- Easy to add more accessories as your needs evolve
No matter what you're welding, this table handles it:
- Sheet metal fabrication—clamp and square panels quickly
- Structural steel—large, heavy weldments on a rigid platform
- Pipe & tube—V-blocks and clamps hold round stock securely
- Custom prototyping—reconfigure for every new design
- Production runs—repeatable setups, consistent results
- Maintenance & repair—versatile enough for any job that comes in
- Future-Proof Investment—Buy once, expand forever. No more replacing tables as your business grows.
- Industry Standard Compatibility—D28 grid works with all major accessory brands—no proprietary lock-in.
- Precision That Lasts—Nitrided surface + cast iron construction = years of accurate fixturing.
- Factory Direct Pricing—We manufacture our own tables. No middlemen, no markup—just quality at a fair price.
- Customization Available—Need a special size, height, or feature? We build tables to your exact specs.
Whether you're setting up a new shop or upgrading your existing workspace, our Modular Expandable D28 Welding Fixture Table is the smart choice. Start with one table and add more as you need them—or go all-in with a full workstation from day one.
Ready to build the perfect welding setup?
Contact us today for a free consultation and custom quote. Our engineers will help you design the exact modular system your fabrication projects need.
