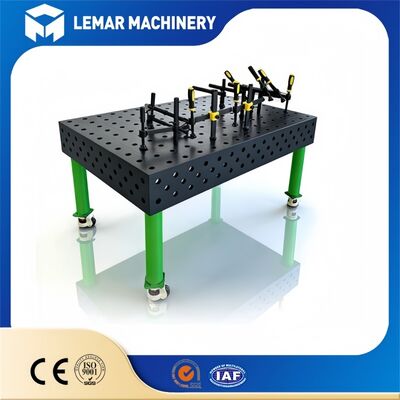

High Precision Nitrided D28 Modular Metal Welding Work Table
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
D28 modular welding table
,nitrided metal work table
,high precision welding fixture
Precision, durability, and versatility—all on one table. Our High Precision Nitrided D28 Modular Metal Welding Work Table delivers certified flatness, a wear-resistant nitrided surface, and the industry-standard D28 modular fixturing system. Built from solid steel for industrial use, it's the workhorse table that professional welders, fabricators, and manufacturing shops rely on for accurate, efficient welding day after day.
Every table is precision machined to ± 0.1mm/m flatness tolerance and inspected before shipment. No wobbly setups, no shimmed workpieces, no guessing. Square joints fit perfectly, parallel surfaces stay aligned, and every weld goes where it's supposed to. When precision matters, this table delivers.
Professional nitriding treatment hardens the steel surface to 60+ HRC—3-5 times harder than untreated steel. The result: exceptional wear resistance, superior rust protection, and welding spatter that chips off cleanly with a simple chisel. A nitrided table stays accurate and looks better for years longer than a standard painted or ground table.
The 28mm diameter hole system with 100mm grid spacing is the European industrial standard—and for good reason. It accepts a massive range of heavy-duty clamping accessories, handles high clamping forces, and is compatible with most major fixturing brands. Drop in a bolt, slide on a bracket, and you're set up in seconds.
Why settle for a fixed table when you can have a modular one? Our D28 system works with hundreds of fixturing accessories—clamping bolts, angle brackets, stop blocks, V-blocks, quick-release pliers, riser blocks, and more. Weld tubes, frames, brackets, sheets, and custom profiles all on the same table. Set up once, weld perfectly, then reconfigure for the next job.
This isn't a hobby table. It's a professional welding work table built from solid Q355 steel plate with heavy welded leg structure. Rigid, stable, and vibration-damping—exactly what you need for consistent, high-quality welding. Built to take daily industrial use and keep performing year after year.
| Parameter | Specification |
|---|---|
| Product Name | High Precision Nitrided D28 Modular Metal Welding Work Table |
| Table Top Material | Q355 Structural Steel (solid plate) |
| Surface Treatment | Nitrided (Hardness ≥ 60 HRC) |
| Hole System | D28 (28mm diameter) – 100mm × 100mm grid |
| Flatness Tolerance | ± 0.1 mm / meter (certified) |
| Table Top Thickness | 25 mm (customizable) |
| Load Capacity | 3,000 - 8,000 kg (depends on size & thickness) |
| Standard Sizes | 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 mm |
| Custom Sizes | Available on request |
| Leg Construction | Heavy-gauge steel tube, fully welded & braced |
| Table Height | 800 - 900 mm (customizable) |
| Fixturing Compatibility | D28 standard – compatible with most major brands |
| Available Accessories | Clamping bolts, angle brackets, stop blocks, V-blocks, clamping pliers, riser blocks, and more |
| Application | Welding, assembly, positioning, fixturing, jigging |
- General Fabrication – Frame welding, bracket fabrication, general metalwork
- Structural Steel – Medium structural frames, beam assembly, steel construction
- Tube and Pipe Welding – Square tube, round pipe, angle iron, handrail systems
- Automotive and Trailer – Chassis work, trailer frames, roll cages
- Machine Building – Equipment frames, bases, enclosures, structural components
- Job Shops – High-mix, low-volume production, custom work
- Manufacturing and Production – Repeatable fixturing, batch welding, consistent quality
- Training and Education – Welding schools, vocational training, technical colleges
Whether you run a small job shop or large structural fabrication plant, our high precision D28 nitrided welding table fits all heavy-duty welding scenarios. No more frequent table replacement or messy workpiece positioning.
Feel free to contact us for free technical consultation, size recommendation and exclusive package discount. We provide full after-sales technical support and global delivery service to help you boost welding quality effortlessly.
