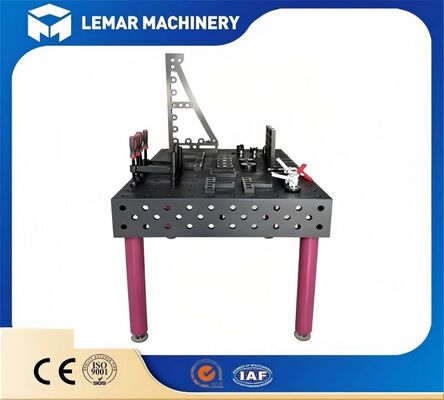

Ultra Stable Universal 3D D28 Metal Welding Positioning Table
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,T/T,D/P,Western Union |
| Supply Capacity: | 500 units/month |
3D metal welding table
,universal welding positioning table
,D28 welding fixture table
Rock-solid stability, universal fixturing versatility, and true 3D welding capability—all on one professional platform. Our Ultra Stable Universal 3D D28 Metal Welding Positioning Table delivers exceptional rigidity, industry-standard D28 modular clamping, and multi-axis positioning accuracy for welders, fabricators, and manufacturing teams who demand consistent, repeatable results on every job.
| System | Material | Size(mm) | Weight(kg) |
|---|---|---|---|
| D28/D16 | HT300 cast iron/Q355 steel | 1000*1000*200/150 | 300 |
| D28/D16 | HT300 cast iron/Q355 steel | 1000*2000*200/150 | 520 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*1200*200/150 | 400 |
| D28/D16 | HT300 cast iron/Q355 steel | 1200*2400*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1000*200/150 | 420 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*1500*200/150 | 600 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*2000*200/150 | 800 |
| D28/D16 | HT300 cast iron/Q355 steel | 1500*3000*200/150 | 1150 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*3000*200/150 | 1500 |
| D28/D16 | HT300 cast iron/Q355 steel | 2000*4000*200/150 | 2100 |
Why buy multiple tables when one does it all? The universal D28 hole grid works with hundreds of standard fixturing accessories, so you can tackle everything from thin sheet metal to heavy structural steel on the same surface. Square tubes, round pipes, angle irons, custom brackets, flat plates—if you can weld it, you can fixture it on this table. One table replaces jigs, fixtures, and makeshift setups.
Welding isn't flat, and neither is this table. Our 3D positioning system lets you fixture workpieces horizontally, vertically, and at any angle—all on the same table surface. Build frames, weld corners, assemble 3D structures, and get perfect 90° joints every time. The D28 grid extends consistently across the entire surface, so positioning is accurate no matter where you work.
The 28mm diameter hole system with 100mm grid spacing is the European industrial standard for professional welding tables. It handles heavy clamping forces, works with all major accessory brands, and gives you the flexibility to expand your fixturing setup anytime. Drop-in bolts, slide-on brackets, quick-release clamps—everything fits perfectly and locks down solid.
Every hole is precision drilled to ±0.1mm positioning accuracy, and the table surface is machined flat to ±0.1mm/m. That means you can set up a job today, take it apart, and set it up identical next week—and it will be exactly the same. For production welding, batch work, and repeat orders, this level of repeatable positioning saves hours of setup time and eliminates human error.
- Frame and Structural Welding – Square tube frames, angle iron structures, truss assembly
- 3D Fixture and Jig Work – Complex 3D weldments, multi-angle assemblies, precision fixtures
- Batch Production – Repeatable setups, consistent quality, fast changeover between jobs
- Pipe and Tube Fabrication – Round pipe, square tube, handrail systems, guardrails
- Automotive and Chassis – Frame jigging, roll cages, suspension brackets, chassis work
- General Job Shop – High-mix work, diverse projects, quick setup changes
- Prototype Development – Fast iteration, accurate positioning, flexible fixturing
- Welding Training and Education – Teaching proper fixturing, 3D positioning, and quality welding
Universal means the table can handle virtually any welding or fixturing job without needing custom jigs. The D28 grid system works with hundreds of standard accessories—clamps, brackets, blocks, V-blocks, risers, and more—so you can fixture flat parts, round parts, square tubes, angles, frames, and 3D structures all on the same table. One table replaces many specialized fixtures.
3D positioning means you can accurately fixture parts in all three dimensions—not just flat on the table surface. You can hold parts vertically, at angles, at different heights, and in complex spatial relationships. This matters because most real weldments are three-dimensional—frames, chassis, structures, brackets—and you need to position and weld them accurately in all axes, not just on a flat plane.
D28 refers to the 28mm diameter hole system with 100mm grid spacing—the European industrial standard for professional welding tables. It's important because: ① It's strong—handles heavy clamping forces. ② It's compatible—works with accessories from multiple manufacturers. ③ It's versatile—hundreds of different accessory types available. ④ It's expandable—you can add more accessories anytime without being locked into one brand.
The hole positions are accurate to ±0.1mm, and the table surface is flat to ±0.1mm per meter. Combined with properly made fixturing accessories, this gives you repeatable positioning accuracy well within the tolerance requirements of most structural and general fabrication work. Set up a job today, take it apart, and set it up next month—it will be in the exact same position.
For daily professional use—absolutely. Nitriding hardens the surface to 60+ HRC, making it 3-5 times more wear-resistant, highly rust-resistant, and much easier to clean welding spatter from. Over the 15+ year life of the table, nitriding protects your investment and keeps the surface accurate far longer. For occasional or hobby use, a standard ground or painted table works great and saves money.
Yes, we warmly welcome clients to visit our production facility. You can inspect raw materials, see the full production process including machining and nitriding, check finished tables of all sizes, and verify flatness, stability, and surface quality on site.
Tired of setups that shift, weldments that don't repeat, and tables that can't keep up with the diversity of your work? Upgrade to an ultra-stable, universally versatile, truly 3D D28 welding positioning table—and get consistent, accurate, repeatable results on every single job. Contact us today for a free quotation—tell us your size and accessory requirements, and we'll configure the perfect positioning table for your fabrication operation.
