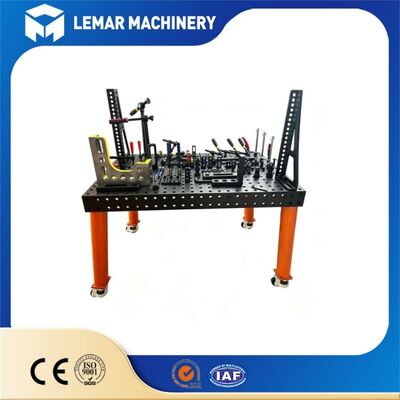

Accurate Grid Positioning High Flatness D16 3D Welding Fixture Work Table
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
D16 3D welding fixture table
,high flatness welding work table
,accurate grid positioning fixture table
Precision meets versatility. Our D16 3D Welding Fixture Work Table delivers pinpoint grid positioning and ultra-high flatness in a compact, affordable package. Built around the 16mm grid system on 50mm centers, this table gives you the fixturing accuracy of a professional 3D welding table—perfect for small parts, detailed assemblies, and shops that demand precision without the heavy-duty price tag.
Every hole is drilled to tight tolerances. Every surface is machined flat. Every clamping point is exactly where you need it. Set up once, weld perfectly, repeat forever.
| Parameter | Specification |
|---|---|
| Grid System | D16 – 16mm holes on 50mm centers |
| Hole Tolerance | H7 (16.000 ~ 16.018mm) |
| Positioning Accuracy | ±0.05mm repeatability |
| Tabletop Material | HT300 gray cast iron |
| Tabletop Thickness | 60mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 3,000 kg |
| Standard Sizes | 1000×750, 1200×800, 1500×1000mm |
| Working Height | 820mm (custom available) |
D16 50mm grid with H7 tolerance holes – ±0.05mm repeatable accuracy for consistent, error-free fixturing every time.
Stress-relieved + double-surface milled to ±0.1mm/m². Stays flat for years – no warping, no rework.
Build vertically and horizontally. Full accessory ecosystem for complex multi-level weldments.
HV 600+ nitriding repels spatter, resists wear, and keeps holes precise 10+ years.
Industry-standard D16 grid works with Siegmund/Demmeler accessories – no proprietary lock-in.
Bolt tables together for larger work. Start small, grow as your business does.
Contact us today for a free consultation and quote. Our team will help you select the perfect D16 welding table and accessory package for your shop.
