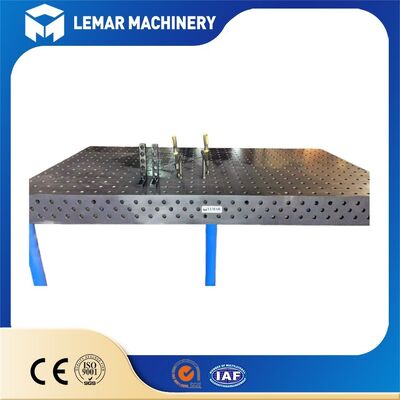

Modular steel welding platen for assembly and fixture applications
| MOQ: | 1 |
| Price: | 500-1000 USD |
| Standard Packaging: | 3000*2000*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
modular 2d welding table
,modular welding fixture table
,steel 2d welding table
Modular steel welding platen for assembly and fixture applications
The modular steel welding platen for assembly and fixture applications is a highly flexible and expandable industrial welding fixture system. Unlike traditional one-piece welding tables, its core advantage lies in its "modular assembly," allowing it to adapt to the welding and assembly needs of workpieces of different sizes and shapes.
| Tabletop thickness | 25mm |
| Locating hole specifications | φ28mm locating pin holes |
| Flatness accuracy | Precision grade ≤0.05mm/m; Standard grade ≤0.1mm/m |
| Main body material | Q355 |
| Surface hardness (nitriding treatment) | ≥HV800 |
| Nitriding layer depth | 0.3–0.5mm |
Core Features and Advantages (Suitable for assembly and fixturing scenarios)
Flexible Expansion, Adaptable to Various Workpiece Sizes
Compared to traditional fixed-size welding tables, the modular design allows for free combination of table sizes according to workpiece dimensions – from small hardware parts to large engineering machinery components. This eliminates the need for custom-made platforms,significantly reducing tooling costs.
Fast Clamping, Improved Assembly Efficiency
The T-slots and positioning holes on the module surface can be directly used with quick clamps, positioning blocks, pressure plates, rotating fixtures, and other accessories, enabling rapid positioning and clamping of workpieces. For irregularly shaped workpieces, multiple modules can be combined to create a working surface that conforms to the workpiece's contour, reducing the tooling customization cycle.
Multi-functional Use, Reduced Space Requirements
It can be used as a welding platform, as well as a reference platform for workpiece assembly, inspection, and grinding; after use, the modules can be disassembled and stacked for storage, saving workshop storage space, especially suitable for small to medium-batch, multi-variety production models.
Stable Precision, Guaranteed Welding Quality
Each module undergoes precision machining before leaving the factory, and the overall flatness error after assembly can be controlled within 0.05mm/m, providing a stable reference surface for welding and reducing problems such as workpiece welding deformation and dimensional deviations.
Applicable scenarios
Multi-variety, small-batch production: such as non-standard equipment manufacturing, mold welding, and aerospace component assembly, where frequent changes in workpiece specifications do not require platform replacement.
Large component welding: such as engineering machinery frames and steel structure building components, where oversized work surfaces are created by assembling modular units, replacing traditional large welding platforms and reducing procurement costs.
High-precision assembly welding: such as automotive parts and precision instrument casing welding, enabling standardized operations with the help of positioning fixtures.
Flexible production lines in workshops: can be integrated with welding positioners and robotic welding arms to form automated welding workstations.
Export packaging commitment
Professional Packaging, Preventing Damage
All platform modules are packaged with triple protection: custom-made plywood crates + PE protective film + foam corner protectors. Positioning holes and T-slots are filled with moisture-proof sponge, and accessories are independently waterproofed and packaged with a packing list. International shipping labels are clearly affixed to the outside of the wooden crates to ensure that the goods are free from scratches, deformation, and corrosion during loading, unloading, and transit.
Moisture and Rust Protection, Suitable for Sea Freight
To address the humid environment of sea freight, all products are sprayed with anti-rust oil before leaving the factory, and sufficient desiccant is placed inside the wooden crates. Dry cargo containers are prioritized for shipment to mitigate the risk of seawater and condensation damage, ensuring that the goods arrive in the same condition as when they left the factory.
Efficient Customs Clearance, Full Traceability
We will prepare a complete set of compliant customs clearance documents in advance, including commercial invoices, packing lists, bills of lading, certificates of origin, and CE/ANSI certification certificates, ensuring that all document information is accurate. After the goods are shipped, we will provide the logistics tracking number immediately, allowing you to track the shipment status at any time.
On-Time Delivery, After-Sales Guarantee
We promise to arrange shipment according to the delivery time stipulated in the contract. If the goods are damaged due to improper packaging or loading on our part, we will provide free repair or replacement services. In case of logistics delays, we will proactively coordinate with the carrier to resolve the issue and provide you with timely updates on the progress.
Contact Us
If you are looking for a precise, durable, and flexible modular steel welding platform, or if you would like to learn more about product customization and export shipping solutions, please feel free to contact us!
We have an experienced technical team that can provide one-on-one selection guidance; our comprehensive foreign trade service system can help you with customs clearance and logistics concerns.
Whether you require bulk purchases or customized solutions, we are committed to integrity and quality, and we look forward to working with you to build a future of precision engineering in the welding industry!
