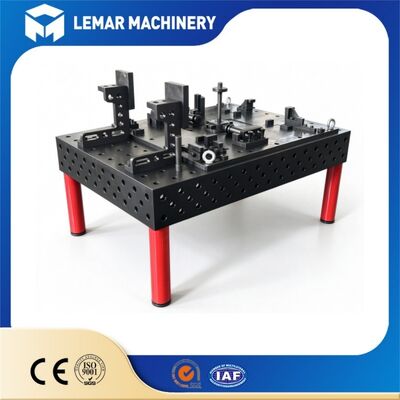

Welding Table D28 for Automotive Chassis Welding Fixture Bench
| MOQ: | 1 |
| Price: | 500USD-1000USD |
| Standard Packaging: | 4000mm*2000mm*200mm |
| Delivery Period: | 10-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding table
,automotive chassis welding fixture
,welding fixture bench
Our Welding Table D28 is a robust 3D modular fixture bench specially engineered for automotive chassis welding. Built with a standardized D28 hole grid system, this welding platform supports fast fixture layout, flexible reconfiguration and consistent precision during chassis assembly and welding work. It delivers stable flatness under heavy clamping load and fits perfectly for small batch production as well as prototype development in auto workshops. All contact surfaces go through nitriding treatment to boost wear resistance and extend service life in high-frequency welding environments.
- High reconfigurable D28 hole grid allows operators to rearrange clamps and stops quickly for different chassis styles without extra machining.
- Nitrided working surface resists scratches, spatter adhesion and corrosion after long-time continuous welding operation.
- Strict flatness control keeps chassis parts aligned accurately and reduces welding deformation during assembly.
- Solid Q355 steel structure bears heavy load and maintains stability under strong clamping force for large chassis components.
- Compatible with the full series of D28 standard accessories to build custom fixture sets for diverse automotive welding tasks.
- Adjustable support legs help level the table easily on uneven factory floors and guarantee reliable positioning results.
This D28 welding table is widely adopted for automotive chassis frame welding, suspension component assembly, vehicle prototype development, light commercial vehicle fixture setup, auto repair workshop fabrication and new energy vehicle frame welding projects. It also works well for related metal frame fabrication jobs that demand high positioning repeatability.
| Item | Standard Parameter |
|---|---|
| Base Material | Q355 steel |
| Surface Treatment | Five-sided full-depth integral nitriding |
| Surface Hardness | HV 550–650 |
| Hole Specification | D28 (28 mm diameter), grid spacing 100 ± 0.05 mm |
| Flatness Accuracy | ≤ 0.1 mm / 1000 mm |
| Hole Center Tolerance | ± 0.03 mm |
| Tabletop Thickness | 25 mm |
| Working Surfaces | Five-sided operation (top plus four vertical sides) |
| Custom Service | Multiple standard sizes |
The main welding table body is packed in a heavy-duty, fumigation-free solid wood plywood crate, featuring internal foam protection and reinforced corner bracing to prevent damage during ocean transit.
Components are individually wrapped in anti-rust paper and organized within a metal tool case.
Packed in separate boxes to prevent scratching the nitrided tabletop surface during transport.
Yes. It follows the standard D28 hole system and can work with most mainstream D28 modular fixture parts on the market.
Standard sizes are ready for quick shipment. Custom dimension orders normally take 20 to 25 working days for production.
No. The nitriding layer combines tightly with the steel substrate and offers stable protection against welding spatter and abrasion.
Yes. Equipped with adjustable support legs, you can fine-tune the table height to fit different working heights for chassis assembly.
We can provide basic technical drawings and professional layout advice once you share your chassis welding requirements with our team.
We use sturdy wooden case packaging to protect the table surface and avoid deformation during long sea transportation.
Send your detailed requirements and workpiece drawing to our team. We are ready to offer a suitable fixture solution and a competitive quotation for your automotive chassis welding project.
