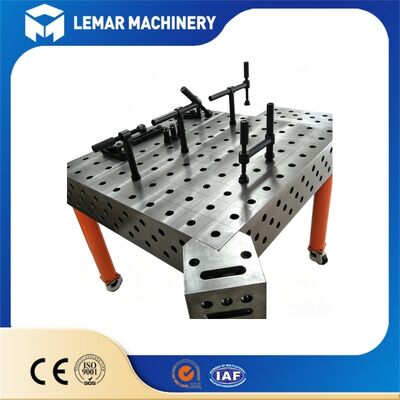

3D Modular Welding Table D28 For Steel Structure Fabrication Projects
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
3D modular welding table D28
,welding table for steel fabrication
,modular welding fixture table
The 3D Modular Welding Table D28 is a professional flexible tooling solution engineered specifically for steel structure fabrication industries. Designed to solve common pain points such as low positioning efficiency, single processing mode and poor repeatability of traditional welding platforms, this D28 modular table adopts a three-dimensional combinable structure with standard hole grid layout.
It supports multi-angle clamping, multi-directional assembly and free tooling rearrangement to fit various steel structure production scenarios. With premium steel material and precision mechanical processing, the platform maintains stable structural rigidity and accurate positioning performance during long-term fabrication of heavy steel frames, brackets and structural components. It effectively standardizes steel structure welding procedures and improves overall workshop production consistency.
| Parameter | Specification |
|---|---|
| Model | 3D Modular Welding Table D28 |
| Table Top Material | Q355 Structural Steel |
| Surface Treatment | Nitrided (Hardness ≥ 60 HRC) |
| Hole Diameter | 28 mm (D28 System) |
| Hole Grid Spacing | 100 mm × 100 mm |
| Flatness Tolerance | ±0.1 mm / m |
| Load Capacity | Up to 5,000 kg (depending on size) |
| Table Thickness | 25 mm |
| Available Sizes | 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 mm (custom sizes available) |
| Compatible Accessories | D28 clamping bolts, angle brackets, stop blocks, V-blocks, clamping pliers, riser blocks |
| Application | Welding, assembly, positioning, jigging, inspection |
The unified D28 standard hole system enables full compatibility with all supporting fixtures, positioning blocks and clamping accessories. It allows arbitrary combination and quick disassembly, completely breaking the limitation of fixed tooling. Manufacturers can freely adjust tooling layout according to different steel structure shapes and sizes.
Different from ordinary two-dimensional flat workbenches, this 3D structural platform supports spatial multi-angle assembly and welding. It can handle complex three-dimensional steel frames, bent structures and multi-branch structural parts that are difficult to position on traditional platforms.
The table body adopts integrated welding and multi-layer reinforcing rib design. After professional stress relief treatment, the overall structure is firm and stable. It will not produce bending or sinking deformation under long-term pressure of heavy steel structural workpieces.
After integral quenching treatment, the table surface features high hardness and strong thermal stability. It effectively resists welding spatter adhesion, high-temperature burning and metal friction, maintaining smooth surface and original accuracy for long-term workshop use.
- Structural Steel Fabrication – Frame welding, beam assembly, bracket fabrication
- Pipe and Tube Welding – Square tube, round pipe, angle iron positioning
- Automotive and Chassis Work – Frame jigging, suspension brackets, roll cages
- Machine Manufacturing – Equipment frames, base structures, enclosures
- Agricultural Equipment – Implement frames, brackets, structural components
- General Job Shop – High-mix low-volume production, prototype development
- Training and Education – Welding training centers, vocational schools
No middlemen, no markup. You get industrial-grade quality at factory-direct prices.
We specialize in welding and fixturing solutions. Our team understands what fabricators actually need on the shop floor.
We export to 50+ countries. Whether you need one table or a full workshop setup, we handle the logistics.
Standard sizes in stock, custom sizes on demand. We build tables to fit your specific production requirements.
Ready to upgrade your workshop with a welding table that delivers accuracy, speed, and years of reliable service? Contact us today for a free quote – tell us your size and accessory requirements, and we'll put together a package that fits your budget and your production needs.
