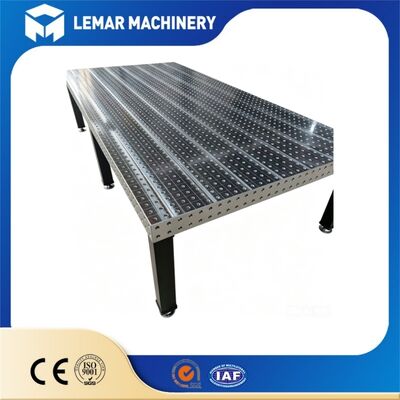

Flexible Welding Table D16 for Multi‑Purpose Metal Component Welding Tasks
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Flexible Welding Table D16
,Multi-Purpose Welding Fixture Table
,Metal Component Welding Table
Our Flexible Welding Table D16 delivers reliable positioning performance for diverse metal component welding tasks. Built with high‑strength steel substrate and advanced surface treatment, this modular work platform supports fast fixture setup and flexible workpiece adjustment. The D16 hole system enables quick locking of clamps, angles and blocks without complex modification. Designed for small‑batch production as well as repeated assembly jobs, it lowers preparation time and improves overall welding consistency. Every table undergoes flatness inspection before shipment to guarantee stable working conditions for daily fabrication work.
| Parameter | Specification |
|---|---|
| Grid System | D16 - 16mm holes on 50mm centers |
| Hole Tolerance | H7 (16.000 ~ 16.018mm) |
| Positioning Accuracy | ±0.05mm repeatability |
| Tabletop Material | HT300 cast iron/Q355 Steel |
| Tabletop Thickness | 60mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 3,000 kg |
| Standard Sizes | 1000×750, 1200×800, 1500×1000mm |
| Working Height | 820mm (custom available) |
-
High Compatibility for Multi‑Scenario Work
The D16 hole grid matches full sets of standard modular accessories. Operators can reconfigure fixture layouts freely for different metal components, eliminating the need for dedicated single‑use jigs.
-
Excellent Surface Wear Resistance
After professional nitriding treatment, the tabletop resists welding spatter burn‑in and scratches. Daily heavy‑load operation will not easily damage the working plane, extending the whole service cycle.
-
Strict Flatness Control for Precise Assembly
Controlled flatness within 0.01 mm per meter keeps workpieces level during welding processes. It effectively reduces assembly error and improves finished part dimensional accuracy.
-
Fast Setup Saves Production Time
Locating pins and clamping tools fit D16 holes directly. Workers complete workpiece positioning in short periods instead of spending hours building temporary support structures.
-
Robust Steel Structure Bears Heavy Loads
Solid steel body handles heavy metal workpieces without obvious deformation. The platform maintains stable performance under continuous long‑hour workshop fabrication.
-
Flexible Size Option Fits Different Workshops
We support non‑standard dimension customization. Whether users need compact tables for small workshops or large platforms for oversized parts, proper solutions can be provided.
This D16 flexible welding table fits wide‑ranging metal fabrication scenarios. It works for manual welding of structural metal components, small batch frame assembly, general metal part repair jobs, prototype development work, mechanical equipment component manufacturing and auxiliary positioning for semi‑automatic welding procedures. It serves independent repair shops, custom metal workshops and small‑to‑medium manufacturing factories perfectly.
If you have technical inquiries, dimension requirement or accessory matching questions about our Flexible Welding Table D16, please feel free to send your message to our sales team. We will reply to your request promptly and offer professional support for your metal‑working projects. Get your tailored fabrication solution right now.
