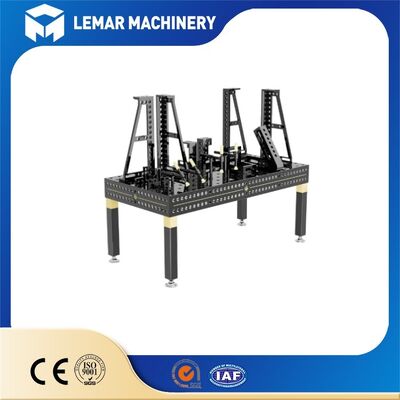

D16 Welding Table Fixture System for Metal Fabrication Professionals
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D16 Welding Table Fixture System
,3D Welding Table for Metal Fabrication
,Welding Table Fixture System Professionals
The D16 Welding Table Fixture System for Metal Fabrication Professionals offers reconfigurable 3D fixturing for metal fabrication workshops. Featuring Φ16mm holes and a 50mm grid, it removes the need for costly one-off welding jigs. Stress-relieved raw material, strict flatness tolerance and anti-spatter nitriding surface preserve long-term precision. All standard D16 accessories are interchangeable, suitable for manual welding and automated robotic welding stations. Multiple tables can be connected to expand working area for large assemblies.
| Item | Standard Precision | Grade 0 High Precision (For Robotic Welding Only) |
|---|---|---|
| Table Flatness | ≤0.1mm /1000mm | ≤0.05mm /1000mm, up to 0.02mm/m |
| Locating Hole Tolerance | Φ16 H7, +0.018 / 0 mm | Φ16 H7, Position Tolerance ±0.03mm |
| Cumulative Tolerance of Grid Pitch | ±0.05mm/m | ±0.03mm/m |
| Center Distance Tolerance of Adjacent Holes | ±0.02mm | ±0.01mm |
| Perpendicularity of Working Surface (Side Wall to Top Surface) | ≤0.05mm/m | ≤0.03mm/m |
- Flexibility and reduced tooling costs: Eliminates the need to fabricate dedicated welding jigs for new products; instead, standard modular components are assembled to form the fixture, thereby shortening development cycles.
- High positioning accuracy and repeatability: Precision-machined hole patterns ensure consistent dimensions in batch welding, making the system ideal for high-mix, low-volume production.
- Fine 50mm grid pattern: High-density hole layout allows for precise positioning adjustments, even for small workpieces and sheet metal parts.
- Usable on all five faces: D16 holes on all four side faces enable 3D spatial clamping and welding configurations.
- Wear and weld-spatter resistant: Nitriding treatment ensures high surface hardness, protecting the reference surfaces from damage caused by weld spatter.
- Expandable through modular connection: Multiple platforms can be freely joined together to accommodate workpieces of various sizes.
| Lemar welding table to UK | Lemar welding table to Spain |
- Inspection tools: Marble straightedge, dial indicator, laser interferometer, and CMM (Coordinate Measuring Machine) for spot-checking hole position accuracy.
- Inspection reports available: Flatness inspection certificate and ex-factory dimensional inspection record (can be supplied with the shipment for the customer's incoming material acceptance).
- Certifications: CE certification for the complete machine (EU); material documentation available (Mill Test Certificate), including material certificates for HT300 and Q355.
A: Single leg static load: 700–1000kg. Total static load ranges from 3 to 10 tons depending on table size. Uniform load placement is required. Heavy impact or hammering is not recommended.
A: Clear welding spatter inside holes after use and blow holes clean with compressed air. Avoid direct long-time arc burning on the reference surface. Apply anti-rust oil on locating pins regularly. Check flatness and re-level legs every 6–12 months, especially for robotic welding stations.
A: Yes. We can supply MTC material certificates and flatness inspection reports upon request, which is widely required by European clients and robotic welding projects. CE certification is available.
A: Ideal for sheet metal enclosures, small steel frames, motorcycle/bicycle frames, aluminum weldments, low-volume high-mix fabrication, prototype work and robotic welding stations. Not recommended for extra heavy large steel structures (choose D28 system instead).
A: Standard size tables normally take 2–4 weeks. Custom dimensions, Grade 0 high precision or full nitriding treatment will need longer production time. Contact us for an exact schedule.
Interested in our D16 Welding Table Fixture System for Metal Fabrication Professionals?
Send your project specifications to us. We will provide professional technical recommendations and a competitive quote for your metal fabrication workshop.
