D16 Professional 3D Welding Table with Jigs for Precise Metal Assembly

D16 Professional 3D Welding Table with Jigs for Precise Metal Assembly

MOQ: 1 PCS
Price: 500-1500 USD
Standard Packaging: 4000*2000*200mm
Delivery Period: 15-25 work days
Payment Method: D/A,L/C,D/P,T/T
Supply Capacity: 500 units/month
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
CE certificate.pdf
Hole Specification:
Φ16 mm H7 Precision Hole
Grid Pitch:
50 mm × 50 mm
Machined Surfaces:
5‑sided Full CNC Machined (top + Four Vertical Sides)
Tabletop Thickness:
12mm
Material Options:
Q355 High‑Strength Steel / HT300 Grey Cast Iron
Surface Treatment:
Gas Nitriding
Nitrided Layer:
0.3‑0.5 mm
Hardness:
HV550‑900
Hole‑position Tolerance:
±0.05 mm
Highlight:

D16 3D welding table with jigs

,

professional welding fixture table

,

precise metal assembly welding table

Product Description
D16 Professional 3D Welding Table with Jigs for Precise Metal Assembly

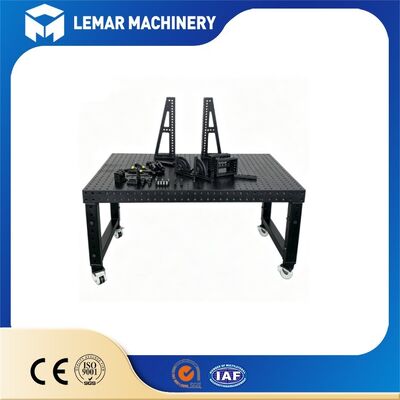

D16 Professional 3D Welding Table overview

Elevate your metal fabrication efficiency with our D16 Professional 3D Welding Table with Jigs for Precise Metal Assembly. This fully modular five-sided flexible fixturing system delivers reliable, repeat-accurate positioning for manual welding, prototype builds, small-batch production and robot welding cells. Equipped with a complete set of interchangeable jigs and clamping accessories, it eliminates costly custom-built tooling and lets you reconfigure workholding setups in minutes for diverse metal assemblies. Built with stress-relieved tabletop, precision H7 hole system and durable nitrided surface treatment, it maintains outstanding flatness and long-term stability for your precision welding tasks.

D16 Welding Table in use D16 Welding Table close-up detail
D16 Professional 3D Welding Table Size Chart
Table Size (L × W mm) Table Top Thickness Approx. Weight Q355 Steel Approx. Weight HT300 Cast Iron
1000 × 800 12 mm 280 kg 420 kg
1200 × 800 12 mm 330 kg 500 kg
1200 × 1000 12 mm 410 kg 620 kg
1500 × 1000 12 mm 510 kg 770 kg
2000 × 1000 12 mm 680 kg 1020 kg
2000 × 1200 12 mm 820 kg 1230 kg
2400 × 1200 12 mm 980 kg 1470 kg
3000 × 1500 12 mm 1530 kg 2300 kg
Main Features
3D Flexible Clamping: The table and four sides are all perforated, allowing for multi-angle clamping of complex frame-like workpieces in planar, vertical, and tilted configurations, not limited to 2D planar welding.
High Precision and Repeatability: CNC machining and stress-relief aging treatment prevent welding deformation; ensures good dimensional consistency of workpieces within the same batch, suitable for small-batch, multi-variety, and robotic welding workstations.
Nitrided Durable Surface: Weld slag does not easily adhere to the table surface, making it easy to clean, wear-resistant, and long-lasting.
Cost Reduction and Efficiency Improvement: Eliminates the cost and time required for custom-made welding fixtures; product switching only requires rearranging the fixtures, shortening changeover time.
Scalability: Multiple welding tables can be combined to expand the processing range; fixtures can be continuously added to accommodate future new products.
Our Advantages
Competitor vs D16 welding table comparison D16 welding table reinforced rib structure

Left: Competitor's welding table back-side structure; Right: Our D16 3D welding table reinforced rib framework.

Many low-cost suppliers adopt thin-simplified rib structures for their welding tables. Insufficient reinforcing ribs lead to poor rigidity. After long-term heavy-load use, the tabletop is prone to deformation and flatness loss, ruining your welding assembly accuracy.

Our welding table is built with dense, thickened grid-style reinforcing ribs on the back. Optimized whole-plate structural design greatly improves overall rigidity and anti-deformation performance. Combined with complete stress-relief treatment, our table resists bending and twisting under heavy-duty workshop loads. Long-term stable flatness is well-guaranteed to sustain your precision metal welding production.

Product Certification
CE Certification for D16 Welding Table

Our D16 Professional 3D Welding Table with Jigs for Precise Metal Assembly conforms to EU safety regulations. Critical safety features including grounding system and edge protection are implemented for safe daily operation in European fabrication workshops. Official CE documents can be supplied upon request.

FAQ
What surface treatment do you apply?
Shot-blasting + gas nitriding. Nitrided layer 0.35-0.5 mm, hardness HV550-900. Both top surface and inner hole walls are nitrided for anti-spatter and long-term wear resistance.
What documents can you provide?
Measurement & flatness inspection report is available upon request. The product is CE compatible.
What is your lead-time?
Standard sizes: 15-25 working days. Custom dimensions or 0-grade precision versions take extra production time.
What are the terms of payment and shipping?
We accept T/T payment. Trade terms including EXW, FOB, CIF, DAP, DDP are all available.
Do you supply spare parts?
Yes, spare jigs, locating pins and connecting accessories can be ordered separately at any time.

Get your D16 Professional 3D Welding Table with Jigs for Precise Metal Assembly for consistent-accuracy welding and assembly.

Whether you need standard specifications or fully customized solutions, we are ready to assist you. Drop your inquiry with your exact needs, and we will reply with professional suggestions and pricing without delay.
