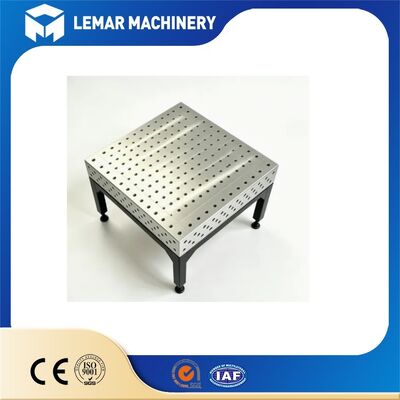

Heavy-Gauge D28 Welding Table for Industrial and Garage Use
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/P,L/C,D/A,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole Diameter:
Φ28 mm, H7 Tolerance
Grid Pitch:
100 mm ±0.05 mm
Tabletop Thickness:
25mm
Side Height:
200 mm, Five‑sided Usable Working Surfaces
Flatness:
0.02mm/m
Single Leg:
900-1000kg
Surface Treatment:
Gas Nitriding
Hardness:
HV550‑900
Material Option:
Q355 Steel / HT300 Cast Iron
Highlight:
Heavy-Gauge D28 welding table
,Industrial welding fixture table
,Garage welding table with warranty
Product Description
Heavy-Gauge D28 Welding Table for Industrial and Garage Use
The Heavy-Gauge D28 Welding Table for Industrial and Garage Use is a heavy-duty 3D modular fixturing platform designed for factory-scale production and garage-based metalworking. With 25 mm thick reinforced top, five-sided D28 φ28 mm hole grid, stress-relieved base and nitrided anti-spatter surface, it guarantees high flatness and heavy static load capacity. Interoperable with worldwide D28 fixtures and expandable via table-to-table connection, it serves chassis fabrication, structural welding and robot welding applications. Key Technical Parameters
| Item | Specification |
|---|---|
| Hole Diameter | Φ28 mm, H7 tolerance |
| Grid Pitch | 100 mm ±0.05 mm |
| Tabletop Thickness | 23-25 mm (Heavy-Gauge thick plate) |
| Side Height | 200 mm, five-sided usable working surfaces |
| Flatness | 0.02mm/m |
| Static Load Capacity | Single leg: 700-1000 kg Whole table: 3-10 tons, depends on table size & structure |
| Compatible Bolt | M16 standard fixture bolt, fully interchangeable with global D28 tooling accessories |
| Available Sizes | 1000×800 mm, 1000×1000 mm, 1500×1000 mm, 2000×1000 mm, 2000×1500 mm. Multiple tables can be connected for enlarged working area |
Main Features
- Modular Rapid Tooling: No custom-made fixtures are needed. Using standard D28 clamping parts, locating pins, squares, and V-blocks, workpiece positioning can be completed in minutes. Different products can be switched on the same table, significantly reducing tooling fabrication time.
- Suitable for Industrial and Garage Scenarios:
- Industrial applications: vehicle frames, construction machinery, steel structures, robotic welding, batch component welding
- Garage/Small Workshop applications: vehicle frame modification, motorcycle frames, guardrails, supports, custom hardware, repair welding
- Wear-Resistant and Slag-Resistant: Nitriding treatment prevents weld slag from adhering to the table surface, simplifying cleaning and extending the workbench's lifespan.
- Expandable and Connectable: Multiple workbenches can be connected to create a large welding work surface; adjustable feet are available for the legs, and casters are optional for mobility.
- Comparison of D16 (Lightweight) Welding Table: The D16 has a hole diameter of 16mm and a hole spacing of 50mm, making it more suitable for small, precision sheet metal parts; the D28 welding table has greater load-bearing capacity and clamping force, making it suitable for medium to large-sized heavy-duty processing, and is the most common model in workshops and factories.
Usage Notes
- Do not directly initiate an arc with high current on the worktable, as this will burn away the nitrided layer and create pits; try to initiate the arc on the workpiece.
- Cast iron workpieces must not be directly welded onto the worktable, as this will cause thermal deformation and localized cracking; steel Q355 welding tables can be used for small-scale spot welding of stop blocks.
- When hoisting and lowering heavy workpieces onto the worktable, handle them gently to avoid impact damage to the worktable and openings.
Routine Maintenance
- Welding slag: Clean with a copper spatula/wire brush. Do not use an angle grinder to grind the surface, as this will damage the nitrided hardened layer.
- Regularly blow away metal shavings from holes and spray a thin layer of anti-rust oil to prevent rust from causing pins to jam.
- Regularly check the levelness and readjust the anchor bolts.
- Do not place several tons of heavy objects on the surface for extended periods, as this can cause permanent deformation.
Expected Lifespan
Under normal operating conditions: 8-12 years for steel nitriding welding tables; 10-15 years for HT300 cast iron welding tables; violent grinding and frequent arcing will significantly shorten the lifespan.
