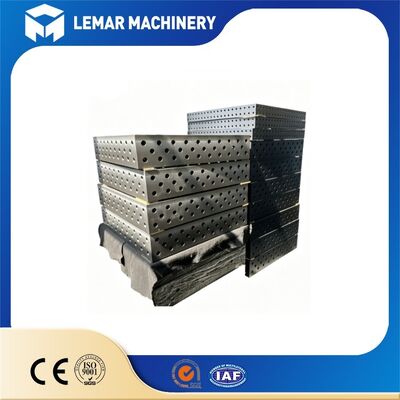

D28 Welding Table with Heavy Gauge Steel Frame and Casters
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding table with casters
,heavy gauge steel welding table
,welding fixture table with steel frame
D28 Welding Table with Heavy Gauge Steel Frame and Casters delivers high-precision 3D modular fixturing together with flexible workshop mobility. Featuring Φ28 mm H7 machined holes on 100 × 100 mm grid, heavy-gauge stress-relieved steel under-frame and heavy-duty leveling casters, this moving welding platform lets you re-arrange workstations quickly while maintaining stable working accuracy once locked down.
Nitrided wear-resistant tabletop, interchangeable D28 accessories and size customizations make it ideal for heavy-duty welding and robotic production environments.
| Item | Specification |
|---|---|
| Hole System | D28, Hole Diameter Φ28 mm H7, Grid 100 × 100 mm, Positioning Accuracy ±0.05 mm |
| Tabletop Material | Q345/Q355 High-Strength Steel or HT300 Grey Cast Iron; Tabletop Thickness 23-25 mm, Back Reinforcing Ribs/Keil, Stress-Relief Treatment |
| Flatness | Standard Grade ≤0.1 mm/1000 mm; High-Precision Grade-0 ≤0.05 mm/1000 mm |
| Surface Treatment | Gas Nitriding, Hardness HV550-900; Resist Welding Spatter, Wear-Resistant & Anti-Corrosion |
| Frame | Heavy-Gauge Welded Steel Frame with Reinforced Legs; Single-leg Load Capacity 700-1000 kg, Total Unit Load 3-10 Tons (Subject to Table Size & Leg Quantity) |
| Casters | Heavy-Duty Industrial Swivel Casters with Dual Brakes (Wheel Lock + Swivel Lock); Easy for Workshop Movement; Optional Leveling Feet to Unload Casters for Stable Working Accuracy |
| Available Size | Customizable from 1000×800 mm to 4000×2000 mm; Working Height 800-900 mm (Custom Height Available) |
| Structure | 3D Five-Sided Hole Design: Holes on Tabletop & Four Side Faces, Realize 3-Dimensional Fixturing & Positioning |
- Modular Flexible Tooling: D28 standard holes, paired with locating pins, clamps, squares, and pads, eliminating the need for specialized tooling and enabling quick switching between different workpieces, significantly reducing changeover time.
- Heavy-duty Steel Structure: Thick-walled square tube frame with reinforced back keel, stress-relieved for resistance to deformation under heavy-duty welding; the mobile version does not sacrifice overall rigidity.
- Casters with Locking Function: Unlocking casters for easy workshop movement and flexible production line adjustment; locking casters (or lowering leveling pads) restore worktable rigidity, preventing wobbling during welding and ensuring dimensional accuracy.
- Nitrided Tabletop: High hardness, preventing weld slag adhesion, corrosion resistance, and long service life, suitable for MIG/TIG and robotic welding.
- Customizable Options: Custom size, height-adjustable legs, engraved rulers, and choice between cast iron and steel materials.
We provide a professional limited warranty for our D28 welding table under standard industrial operation.
The tabletop and heavy-gauge steel frame enjoy 24 months warranty against manufacturing defects, including flatness error, hole tolerance, structural failure and nitriding quality issues.
Casters and standard accessories are covered by 12 months warranty for factory defects only. Normal wear and tear is excluded.
Warranty does not cover damage from overloading, improper installation, incorrect operation, impact, unauthorized modification, and wrong storage. No onsite labor charges or shipping fees are included in the warranty service.
Looking for a reliable D28 Welding Table with Heavy Gauge Steel Frame and Casters for your fabrication workshop?
We support custom dimensions, precision grades and complete D28 fixture packages. Feel free to send us your requirements, and our team will reply with a detailed quotation promptly. Get in touch today!
