High Precision Nitrided Surface D28 Modular Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/P,D/A,L/C,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Available Material:
Q355 High‑Strength Steel / HT300 High‑Grade Cast Iron
Tabletop Thickness:
25 mm (standard)
Hole System:
D28, Φ28 mm H7 Tolerance
Grid Pitch:
100 mm ±0.05 mm
Max. Overall Dimension:
4000 × 2000 mm
Standard Flatness:
0.02mm/m
Hole Perpendicularity:
≤0.1°
Static Even‑distributed Load:
5‑10 Tons
Single‑leg Load Capacity:
900‑1000 kg
Highlight:
D28 modular welding table
,nitrided surface welding table
,high precision welding fixture table
Product Description

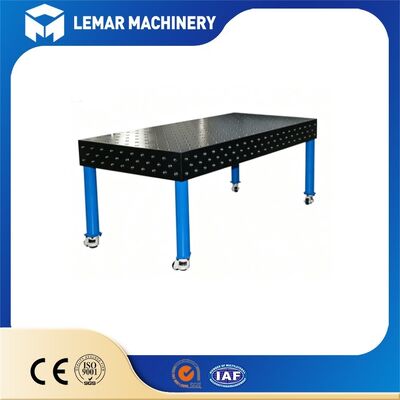

High Precision Nitrided Surface D28 Modular Welding Table
High Precision Nitrided Surface D28 Modular Welding Table is a heavy-duty 3D modular fixturing solution for modern metal fabrication. Adopting D28 Φ28mm hole system with 100 mm grid pitch, the tabletop undergoes full five-sided nitriding treatment for outstanding wear-resistance and anti-spatter performance. With strict CNC machining and artificial stress-relief, it maintains long-term flatness and positioning accuracy. Compatible with global D28 clamping accessories, it supports quick setup, multi-table splicing and robotic welding applications. Available in Q355 steel and HT300 cast iron to satisfy different workshop working conditions.
Product Specifications
| Material | Q355 steel / HT300 cast iron |
| Hole diameter | Φ28mm H7, hole grid 100±0.05mm |
| Tabletop thickness | 25mm |
| Surface treatment | Full gas / plasma nitriding, hardness HV550-900 |
| Flatness | ≤0.02mm/m |
| Static load capacity | 5-10 tons evenly distributed |
| Additional Features | 5-sided working faces for 3-axis fixturing, compatible with international D28 clamping system. Stress relieved by artificial aging, CNC engraved metric scale, chamfered holes. Custom sizes available, can be connected for large-size workpieces. |
Main Features
- Modular Flexible Tooling: No need for customized special fixtures; standardized fixture components can be freely combined. Only the fixture needs to be changed when changing products, significantly reducing tooling preparation time; compatible with mainstream international D28 fixture accessories.
- Five-Sided 3D Clamping: Standard holes on the top surface and four sides allow for multi-angle positioning and welding of workpieces from the sides and elevations, suitable for frame and rack assembly welding.
- Splicing and Expansion: Multiple welding stations can be spliced together using positioning pins and connecting blocks to handle oversized workpieces.
- Matching Adjustable Support Legs: Adjustable height legs and optional movable legs with casters are available.
- Artificial Aging Stress Relief: Eliminates internal material stress, preventing deformation of flatness over long-term use—a key process missing in low-priced, inferior workbenches.
Delivery Information
- Certifications: CE, ISO9001, meeting EU market requirements; SGS/BV third-party testing reports available.
- Trade Terms: Supports EXW/FOB/CIF/DAP/DDP; sea and rail transport; large sizes can be repackaged to reduce sea freight costs.
- Delivery Time: Standard sizes 15-20 days; custom sizes 20-25 days.
- Warranty: Standard 12-month warranty; extended warranty negotiable; warranty only covers material and processing defects, excluding damage caused by impacts or grinding that damages the nitrided layer.
- Customization Options: Non-standard dimensions, laser engraving of customer logo, special hardness nitriding, 2D single-sided welding table, base with robot interface.
Potential Fault Checklist
- Fixture insertion/removal jamming: Check for metal filings inside the hole; verify the hole's H7 tolerance; misalignment of the hole grid after splicing requires readjustment of the splicing locking pins.
- Stubborn weld slag adhering to the worktable: The nitriding layer has been damaged by grinding; continue large-area grinding is prohibited; localized nitriding can be repaired.
- Dimensional deviation of the workpiece after welding: Recheck the flatness of the worktable; check for loose support feet; confirm whether the ground has settled.
- Locating pin wobbling: Wear on the inner wall of the hole, generally due to insufficient nitriding layer or prolonged overload use.
Contact us today for detailed specifications and competitive offers of the High Precision Nitrided Surface D28 Modular Welding Table.
Custom sizes, full fixture kits and measurement protocols are available upon your request.
We are ready to support your welding-automation projects.
