D16 Modular 3D Welding Table with Precision Surface
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole System:
Φ16 mm (H7 Tolerance)
Grid Pitch:
50×50 mm
Hole Position Tolerance:
±0.03‑0.05 mm
Tabletop Thickness:
12mm
Available Table Sizes:
1000×800 mm ~ 4000×2000 mm (customizable)
Surface Treatment:
Gas Nitriding, Hardness HV550‑900
Nitriding Depth:
0.25‑0.5 mm
Flatness:
0.02
Perpendicularity:
≤0.1 mm / 200 mm
Highlight:
D16 modular welding table
,3D welding fixture table
,precision surface welding table
Product Description

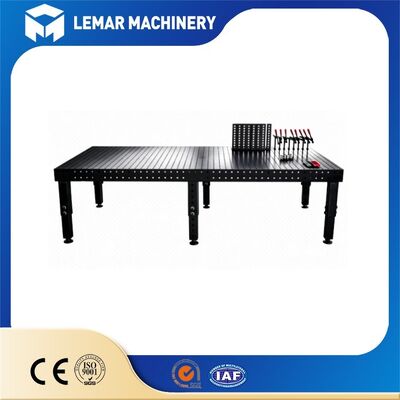

D16 Modular 3D Welding Table with Precision Surface
Upgrade your welding workflow with the D16 Modular 3D Welding Table with Precision Surface. This 5-face fixture system adopts Φ16 mm holes on 50 mm grid, combining stress-relief treatment, CNC machining and nitrided surface for stable accuracy and spatter resistance. Compatible with full range of D16 clamping accessories, it enables fast fixture change-over for varied workpieces. Splicing capability allows larger working surface. Suitable for manual welding and robotic automation. Q355 steel / HT300 cast-iron optional, OEM & ODM are welcome. Dimensions & Specifications
| Table Top Size (L×W mm) | Hole Diameter | Grid Pitch | Static Load Capacity (kg) | Single Leg Load (kg) |
|---|---|---|---|---|
| 1000 × 800 | Φ16 mm H7 | 50×50 mm | 2200 | 900-1000 |
| 1000 × 1000 | Φ16 mm H7 | 50×50 mm | 2500 | 900-1000 |
| 1200 × 800 | Φ16 mm H7 | 50×50 mm | 2500 | 900-1000 |
| 1500 × 1000 | Φ16 mm H7 | 50×50 mm | 2800 | 900-1000 |
| 2000 × 1000 | Φ16 mm H7 | 50×50 mm | 3000 | 900-1000 |
| 2500 × 1200 | Φ16 mm H7 | 50×50 mm | 3500 | 900-1000 |
| 3000 × 1500 | Φ16 mm H7 | 50×50 mm | 4000 | 900-1000 |
| 4000 × 2000 | Φ16 mm H7 | 50×50 mm | 5000 | 900-1000 |
Working Principle & Characteristics
- 5-Sided 3D Hole System: The top surface and four sides are all machined with Φ16 through holes, allowing for horizontal and vertical multi-angle positioning and clamping of workpieces. Ideal for frames, boxes, and sheet metal parts, eliminating the need for additional tooling supports.
- 50mm Fine Grid Advantage: Compared to the D28 welding table (28mm hole diameter, 100mm hole spacing), the D16 welding table has a denser hole grid and more positioning points, suitable for small parts, precision sheet metal, and batch production of small workpieces. The disadvantage is that the load-bearing capacity per hole is weaker than the D28 welding table, making it unsuitable for ultra-large and heavy components.
- Modular Fixture System: Comes with D16-specific accessories: positioning pins, right-angle positioning blocks, clamps, support blocks, and angle blocks. Quick assembly and disassembly allow for product changes only by replacing the fixture, eliminating the need for re-welding tooling. High repeatability and positioning accuracy.
- Precision Machining Table: CNC milling combined with manual aging to relieve stress reduces welding heat deformation. Nitriding treatment prevents weld slag from adhering to the table, facilitating cleaning.
Industry Application Cases
- Sheet Metal Processing Industry: Chassis, cabinets, equipment shells, guardrails, supports; thin sheet metal welding, 50mm fine mesh for convenient multi-point positioning.
- New Energy Industry: Battery trays, small racks, equipment frames; high requirements for dimensional consistency.
- Engineering Machinery Support: Small accessories, component frames; sample production, small-batch production.
- Automotive Parts: Car seat brackets, sheet metal parts.
- Robotic Welding Workshop: Automated welding workstations for small and medium-sized workpieces.
- Prototype and R&D Workshop: New product prototyping, frequent workpiece changes, rapid tooling assembly.
Selection Recommendations
- Workpiece Size: Maximum workpiece size less than 1500mm, mainly sheet metal and small to medium-sized frames → D16 welding table
- Workpiece Weight: Total weight of a single workpiece is recommended to be ≤2 tons; avoid excessive stress at a single point.
- Precision Requirements: For manual welding, choose ordinary precision (≤0.1mm/m); for robotic welding, choose grade 0 high precision (≤0.05mm/m).
- Material Selection: For limited budgets, choose HT300 cast iron welding table; for heat deformation resistance and robotic workstations, choose Q355 steel welding table.
- Table Dimensions: The table surface should be 150-200mm larger on each side than the largest workpiece for easy clamping and fixture operation.
