D28 Welding Fixture Table with CNC Machined Grid Lines and Scales
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | T/T,D/P,L/C,D/A |
| Supply Capacity: | 500 units/month |
CNC machined welding fixture table
,welding table with grid lines
,scaled welding fixture table

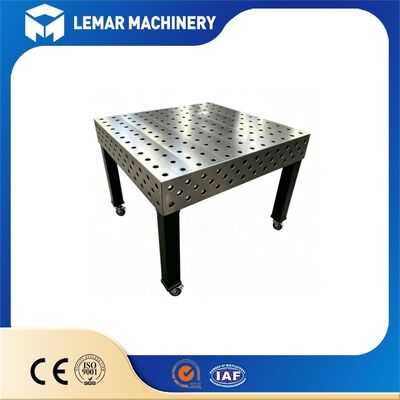

The D28 Welding Fixture Table with CNC Machined Grid Lines and Scales is a robust industrial 3D welding workbench built upon System 28 industry standards. CNC-cut recessed grid patterns and measuring scales on the tabletop accelerate workpiece placement and alignment. Featuring multi-side hole distribution, it supports creative multi-angle clamping configurations. Its nitrided finish protects against spatter adhesion and surface wear. Capable of being combined with other tables and paired with matching D28 tooling, it serves well for both manual welding operations and automated robotic welding lines.
- CNC Engraved Grid + Graduated Scale: Grid lines are CNC milled, not printed; millimeter-level graduations on the sides allow for direct reading of dimensions when placing workpieces, significantly reducing tooling setup time and making it suitable for batch workpiece positioning.
- 5-Sided 3D Fixture System: The top surface and four vertical sides of the D28 welding table all have 28mm holes, allowing for the construction of 3D fixtures. This enables not only planar welding but also multi-angle positioning and flip-over fixtures.
- Nitrided Surface: Weld slag does not easily adhere to the table surface and can be easily removed by tapping; it is deformation-resistant and wear-resistant, and does not easily warp or deform during long-term high-temperature welding.
- Modular Interchangeability: The entire D28 fixture set (positioning pins, quick clamps, support blocks, angle blocks) is universal, eliminating the need for customized tooling. Changing products only requires reassembling the fixtures, shortening changeover time.
- Compatible Accessories: Adjustable height support legs, shock-absorbing feet, casters, hydraulic lifting legs.
| Grade | Flatness | Application |
|---|---|---|
| Standard Grade | ≤0.02mm/1000mm | Suitable for manual welding |
| Grade 0 High Precision | ≤0.01mm/1000mm | Specifically designed for robotic welding workstations, ensuring consistent and repeatable positioning for batch workpieces |
Measurement Protocol available upon delivery: Includes measured data for flatness, hole spacing, perpendicularity, and hole diameter, third-party testing reports, and CE Machinery Directive certification.
The D28 Welding Fixture Table with CNC Machined Grid Lines and Scales has garnered consistent rave reviews from our global clientele. Many manufacturing workshops have expressed great satisfaction with its dependable performance, practical design and long-term service life. It has become a trusted choice for numerous factories across different industries.
Contact us today to get your customized offer for the D28 Welding Fixture Table with CNC Machined Grid Lines and Scales.
Share your project demands, and we will reply promptly with professional solutions.
