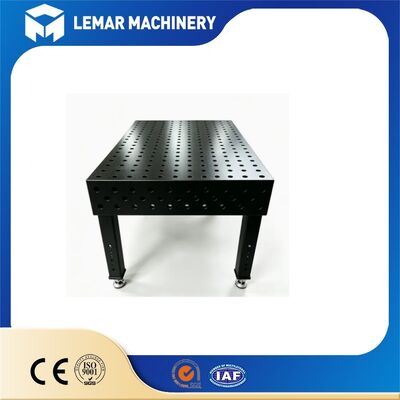

D28 Welding Table with Interchangeable Top Plates for Flexibility
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,T/T,D/P,D/A |
| Supply Capacity: | 500 units/month |
D28 welding table with interchangeable plates
,welding fixture table with flexible top
,interchangeable top welding table D28
Optimize your workshop adaptability with the D28 Welding Table with Interchangeable Top Plates for Flexibility. This modular 3D welding platform divides the working surface into independent interchangeable top plates sitting on a heavy-duty permanent base frame. Quickly switch between perforated fixture plates and solid blank plates, or change only damaged segments instead of the whole table. Featuring D28 standard hole layout, high-hardness nitrided finish and precise repeat positioning, it is a cost-effective fixturing choice for heavy fabrication workshops.
| Item | Specification |
|---|---|
| Hole Diameter | Φ28 mm H7 |
| Grid Pitch | 100×100 mm |
| Accessory Compatibility | Full set of M16 D28 fixtures, locating pins and clamps |
| Standard Top Plate Thickness | 25 mm |
| Top Plate Material | ① HT300 Grey Cast Iron ② Q355 High-Strength Structural Steel Optional upgrade: Tool Steel |
| Surface Treatment | CNC Milling, Stress-Relieving, Nitriding Treatment Hardness: HV550-900, anti-spatter & wear-resistant |
| Flatness | Standard Grade: ≤0.1 mm/1000 mm Grade-0 High Precision: ≤0.05 mm/1000 mm (for robotic welding) |
| Hole Position Accuracy | ±0.05 mm |
| Load Capacity | Single support leg: 900-1000 kg Whole-table static load: 5-10 tons |
| Top Plate Type | Segmented independent top plates, bolt-locked to base frame. Single-plate removable, replaceable and spliceable for dimension extension |
| Base & Support Legs | Heavy-duty box-type base. Optional: fixed legs, height-adjustable legs, mobile casters with brakes |
- High Flexibility: One base plate adapts to various top plates, allowing for quick switching between different welding workpiece production. Suitable for small-batch, multi-variety orders, eliminating the need for customized tooling and fixtures.
- Compatible with the Complete D28 Standard Package: Quick clamps, positioning blocks, angle blocks, and supports are all universally compatible, enabling 360° multi-angle clamping and positioning of workpieces.
- Heavy-Duty and Deformation-Resistant: Nitriding and stress-relief processes withstand the thermal shock of heavy steel structure welding, reducing dimensional deviations caused by welding deformation.
- Expandable: Top plate modules can be added later, expanding the welding worktable from small to large sizes.
We provide a 12-month limited warranty starting from shipment for our D28 Welding Table. Damage from welding spatter burn, heavy impact, overload and incorrect operation is not within warranty scope.
Free remote technical support is available throughout product lifecycle. We supply PDF manuals and operation videos for table assembly, top-plate swapping, bolt torque setting and flatness inspection. Our engineering team replies to technical inquiries within 24 working hours.
Spare-part stock guarantees fast delivery of interchangeable top plates, locating pins, locking bolts and related accessories. After-warranty spare parts are offered at factory cost. Measurement reports, material certificates and maintenance guidelines are included with each order. On-site calibration and operator training can be arranged as optional paid service.
Upgrade your welding workflow with our high-performance D28 Welding Table with Interchangeable Top Plates for Flexibility. Custom sizes, materials and full D28 accessory packages are available.
