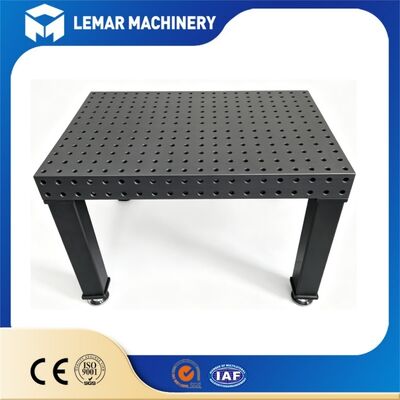

Flexible D16 3D Welding Table for Assembly of Machinery Frame Parts
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
Flexible D16 welding table
,3D welding fixture table
,Machinery frame assembly table
This flexible D16 3D welding table is a modular locating solution designed for assembly of machinery frame parts. Built with high-strength steel material, it supports fast fixture layout and multi-angle workpiece positioning. The standardized D16 hole grid allows various clamps, jigs and locators to be installed freely without extra machining. It greatly reduces custom fixture cost and shortens setup time for small-batch and diversified welding tasks. Suitable for manual welding stations as well as semi-automated production environments, this table brings high repeat positioning accuracy and stable performance for daily metal fabrication work.
| Parameter | Specification |
|---|---|
| Grid System | D16 - 16mm holes on 50mm centers |
| Hole Tolerance | H7 (16.000 ~ 16.018mm) |
| Positioning Accuracy | ±0.05mm repeatability |
| Tabletop Material | HT300 cast iron/Q355 Steel |
| Tabletop Thickness | 60mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1mm per m² |
| Static Load Capacity | 3,000 kg |
| Standard Sizes | 1000×750, 1200×800, 1500×1000mm |
| Working Height | 820mm (custom available) |
- Flexible modular design supports quick reconfiguration for assembly of machinery frame parts and different workpieces
- Precise D16 hole grid ensures reliable repeat positioning for repeated welding production
- High-strength Q355 steel structure resists welding deformation and guarantees long service life
- Wide compatibility with various clamps, jigs and locators from mainstream accessory systems
- Adjustable leveling feet help correct horizontal status even on uneven workshop ground
- Reduce custom fixture investment and cut down workpiece clamping preparation time effectively
This D16 3D flexible welding table is widely used for assembly of machinery frame parts. It fits machinery equipment workshops, small and medium metal fabrication factories, custom metal processing workshops, manual welding stations, semi-automatic welding lines and prototype trial-production projects. Typical workpieces include mechanical frames, equipment supports, metal brackets, chassis components and general steel structural parts.
If you are looking for reliable 3D flexible welding table for assembly of machinery frame parts or other metal fabrication projects, please feel free to send your requirements to us. We can offer proper solution, detailed quotation and matching accessory suggestion based on your workpiece size and workshop condition. We look forward to establishing long-term cooperative relationship with you.
