Heavy Duty D28 Welding Bench With Nitrided Anti Spatter Steel Surface
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |

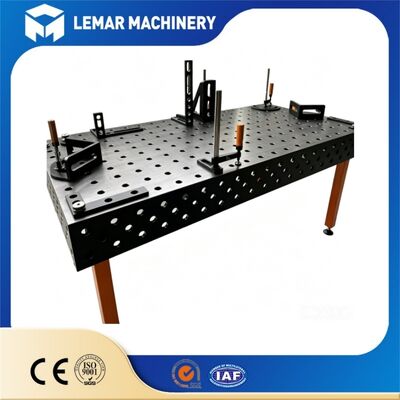

Heavy Duty D28 welding bench
,Nitrided anti spatter welding table
,Steel surface welding fixture table
The D28 Heavy Duty Welding Bench is engineered for professional fabricators, welding workshops, and manufacturing facilities requiring precision, durability, and maximum workspace flexibility. Built with premium nitrided steel surfaces, this welding table delivers exceptional anti-spatter performance, ensuring clean welds and minimal cleanup between projects.
Featuring a 28mm thick precision-machined tabletop with a grid of D28 diameter holes on 100mm centers, this welding bench accommodates a full range of clamping and fixturing accessories, allowing you to set up complex jigs in minutes. Whether you are working on small batch production or large structural assemblies, the D28 welding table provides the flatness, rigidity, and versatility your operation demands.
| System | Material | Size(mm) | Weight(kg) |
|---|---|---|---|
| D28/D16 | cast iron/Q345 steel | 1000*1000*200/150 | 300 |
| D28/D16 | cast iron/Q345 steel | 1000*2000*200/150 | 520 |
| D28/D16 | cast iron/Q345 steel | 1200*1200*200/150 | 400 |
| D28/D16 | cast iron/Q345 steel | 1200*2400*200/150 | 800 |
| D28/D16 | cast iron/Q345 steel | 1500*1000*200/150 | 420 |
| D28/D16 | cast iron/Q345 steel | 1500*1500*200/150 | 600 |
| D28/D16 | cast iron/Q345 steel | 1500*2000*200/150 | 800 |
| D28/D16 | cast iron/Q345 steel | 1500*3000*200/150 | 1150 |
| D28/D16 | cast iron/Q345 steel | 2000*3000*200/150 | 1500 |
| D28/D16 | cast iron/Q345 steel | 2000*4000*200/150 | 2100 |
| Model | D28 Series Welding Bench |
| Tabletop Material | HT300 Cast Iron / Q355 Steel (optional) |
| Surface Treatment | Nitriding (anti-spatter) |
| Tabletop Thickness | 28 mm |
| Hole Diameter | D28 (28 mm) |
| Hole Grid Spacing | 100 mm × 100 mm |
| Surface Flatness | ≤ 0.1 mm / m |
| Surface Hardness | HRC 58-62 (nitrided layer) |
| Load Capacity | 5,000 kg / 11,000 lbs |
| Standard Sizes | 1000×1000, 1500×1000, 2000×1000, 2000×1500, 3000×1500 mm (custom sizes available) |
| Leg Height | 800-900 mm (adjustable) |
| Net Weight | 250-850 kg (depends on size) |
The tabletop undergoes a rigorous nitriding treatment process that creates a hard, wear-resistant surface layer with excellent welding spatter release properties. Weld spatter beads up and wipes away easily, reducing post-weld grinding and cleanup time by up to 70% compared to untreated steel tables.
- Surface hardness: HRC 58-62
- Superior corrosion and oxidation resistance
- Extends tabletop service life by 3-5 times
The 28mm diameter holes are precision-bored and arranged on a standard 100mm by 100mm grid pattern, fully compatible with industry-standard D28 welding table clamping systems and jig accessories.
- Hole tolerance: ±0.1mm for consistent fit
- 100mm grid spacing for flexible fixturing
- Works with all major brand D28 clamps, stops, and positioning pins
Constructed from high-strength HT300 gray cast iron or Q355 structural steel (depending on model), the D28 welding bench handles heavy workloads and high-impact use without warping or losing flatness.
- Tabletop thickness: 28mm (solid, not hollow)
- Load capacity: Up to 5,000 kg / 11,000 lbs
- Precision ground flatness: ≤ 0.1mm per meter
Need more workspace? Multiple D28 welding tables can be seamlessly joined together side-by-side or end-to-end to create larger work surfaces for oversized projects.
- Compatible table extension kits available
- Integrated T-slots and clamping rails on table sides
- Adjustable height legs for ergonomic working positions
