D28 Welding Fixture Table with Clamps High Precision 3D Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1000 USD |
| Standard Packaging: | 30000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,D/P,Western Union,T/T |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Standard Hole Diameter:
Φ28mm
Standard Grid Pitch:
100×100mm
Working Surface:
5 Sides (top + Four Side Faces)
Standard Working Height:
630mm
Surface Treatment:
Gas Nitriding
Table Top Thickness:
25mm
Perpendicularity:
≤0.1mm / 200mm
Hole Position Accuracy:
±0.03mm
Flatness:
≤0.3mm / 1000mm
Highlight:
D28 welding fixture table with clamps
,high precision 3D welding table
,welding fixture table with warranty
Product Description

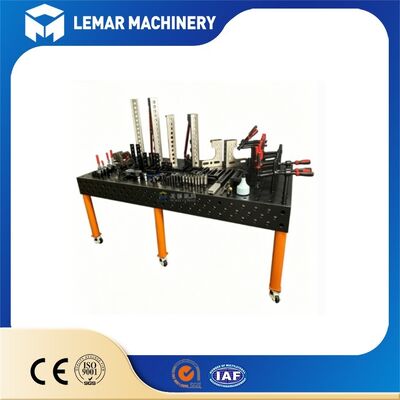

D28 Welding Fixture Table with Clamps High Precision 3D Welding Table
Product Overview
The D28 Welding Fixture Table with Clamps is a modular, porous high-precision welding fixture platform designed for metal welding, assembly, positioning, and inspection. This versatile solution is widely used across steel structures, engineering machinery, automotive manufacturing, and rail transit industries.
Material Specifications
- Steel: Q355/S355J2N, thickness 25-30mm - offering excellent toughness and impact resistance
- Cast Iron: HT300 - providing strong rigidity, superior shock absorption, and stable accuracy
Surface Treatment
Gas nitriding treatment with hardness HV450~650 ensures rust prevention, slag resistance, and wear resistance, increasing service life by 3-5 times.
Grid & Hole Specifications
- 100 × 100mm grid pattern
- Hole spacing tolerance: ±0.05mm
- Aperture: 28mm with chamfered design
- Compatible with D28 standard pins and clamps
Available Dimensions
| Type | Length × Width (mm) | Regular Table Height (mm) |
|---|---|---|
Small Size Model |
1000×1000 | 630 |
| 1200×800 | 630 | |
| 1200×1000 | 630 | |
Medium Size Model |
1500×1000 | 630 |
| 2000×1000 | 630 | |
| 2000×1200 | 630 | |
Large Size Model |
2000×1500 | 630 |
| 2500×1500 | 630 | |
| 3000×1500 | 630 | |
| 3000×2000 | 630 | |
| 4000×2000 | 630 |
Core Advantages
- High Precision Positioning: Hole grid with precision machining ensures welding/assembly consistency and reduces rework
- Flexible & Versatile: No need for custom fixtures - one platform adapts to multiple varieties and small batch production
- 3D Operation: 5 working faces allow clamping, welding, and inspection from any angle
- Efficient & Durable: Nitrogen-infiltrated surface resists welding slag and rust with easy maintenance
- Cost Optimization: Long-term replacement for specialized fixtures reduces design, manufacturing, and storage costs
Standardization & Industry Compliance
- Strictly follows international D28 universal standard for 3D flexible tooling
- Compatible with mainstream European and American brands of tooling accessories
- No monopoly on accessories - easy matching without being bound by original factory pricing
- Standard dimensional modulus compatible with global universal welding fixture designs
After-Sales Service & Warranty
- Main structure guaranteed against deformation for life with multi-year regular warranty
- Universal accessories easily available with individual replacement options
- Comprehensive support including installation guidance, user tutorials, and tooling matching solutions
Frequently Asked Questions
What shipping terms can you offer?
FOB, CFR, CIF, DDP door-to-door service available.
Do you support OEM / Custom logo?
Yes. Custom size, surface color, laser logo and customized accessory package are all available.
Do you provide CE certificate and inspection documents?
Yes. We can provide CE, material certificate, dimension inspection report and factory audit documents.
What is the load capacity of D28 welding table?
Standard size load capacity: 6-8 tons, depending on table thickness and base structure. Suitable for heavy-duty fabrication.
Can you help me match a full set of clamp kits?
Yes. We can recommend the most suitable full clamp package based on your workpiece type (frame, tube, chassis, steel structure) to optimize your costs.
We don't just supply the D28 Welding Fixture Table with Clamps, High Precision 3D Welding Table.
We deliver one-stop professional solutions to fully support your welding tooling layout and production efficiency.
Get in touch with us today for full specifications and customized recommendations.
