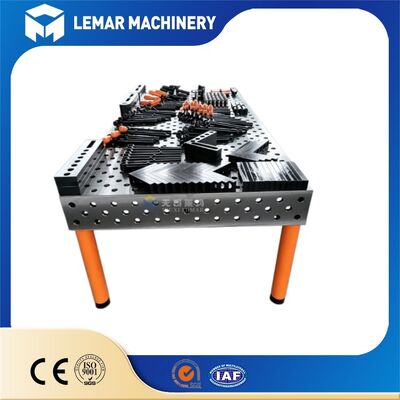

D28 3D welding table for metal assembly workholding
| MOQ: | 1 |
| Price: | 500-1500 USD |
| Standard Packaging: | 3000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
The D28 3D welding table for metal assembly fixture is a high-precision, modular, and flexible fixture platform designed for metal assembly and welding applications. Its core functionality enables rapid positioning, clamping, and welding of workpieces in three-dimensional space through standardized hole systems and accessories.
- High precision: Ensures consistent welding dimensions and reduces rework
- High efficiency: Eliminates custom fixtures, completes tooling construction within 1 hour
- Strong flexibility: Suitable for workpieces of any shape, enables quick product switching
- Low cost: One-time investment with long-term reuse, reducing tooling costs
- Durable and stable: Nitriding surface with strong rigidity, suitable for harsh welding environments
| Hole Diameter | φ28mm |
| Hole Pitch | 100mm ± 0.05mm (grid size 100 × 100mm) |
| Working Face | 5 sides (3D) |
| Material | Q355 steel/HT300 cast iron |
| Surface Hardness | Nitriding HV500-650 |
| Flatness | 0.1mm/1000mm |
| Positioning Accuracy | ±0.03mm |
| Table Size (L×W) mm | Standard Height (mm) | Load Capacity |
|---|---|---|
| 1000×1000 | 620 | 5 tons |
| 1000×1500 | 620 | 6 tons |
| 1200×1200 | 620 | 7 tons |
| 1200×2400 | 620 | 10 tons |
| 1500×1500 | 620 | 10 tons |
| 1500×2000 | 620 | 12 tons |
| 1500×3000 | 620 | 15 tons |
| 4000×2000 | 620 | 20 tons |
- Height customization: 800mm/850mm/900mm available
- Custom length and width dimensions, supporting seamless splicing of multiple units
- Material options: Q355 steel structure or HT300 cast iron with surface gas nitriding
- Accessories: Adjustable feet or brake mobile casters available
Suitable Workshop Environments: The D28 3D welding table is designed for long-term use in welding, gas shielded welding, argon arc welding, and laser welding positions. It withstands high temperatures, welding slag splashes, and abrasive wheel collisions. Ideal for heavy-duty workshop lifting, frequent tool switching, and multi-variety rotation production scenarios.
Load Performance: Engineered for static heavy loads, capable of withstanding crane lifting pressure and manual hammering correction without table depression or hole deformation. Features multi-layer reinforced structure with minimal welding vibration to prevent post-weld deformation.
Equipped with CE certification and ISO9001 production system as standard. Some models can also obtain IATF16949 automotive industry certification. Suitable for import customs clearance and industry access for customers in Europe, America, the Middle East, Australia, and South America.
