High Quality D16 3D Welding Table - Best Soldering Station
| MOQ: | 1 |
| Price: | 500-1500 USD |
| Standard Packaging: | 3000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,D/P,T/T,Western Union,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole System:
D16 (16mm Diameter Holes)
Grid Pitch:
50 × 50 Mm
Working Faces:
5-sided Working Surface (top + 4 Sides)
Max Load Capacity:
2,000 Kg (evenly Distributed)
Reinforced Load Option:
Up To 5,000 Kg
Table Flatness:
≤ 0.1mm / 1000mm
Hole Pitch Tolerance:
±0.05mm
Perpendicularity Of Sides:
≤ 0.1mm / 200mm
Parallelism Of Opposite Sides:
≤ 0.1mm / 1000mm
Product Description
High Quality D16 3D Welding Table - Best Soldering Station
Product Overview

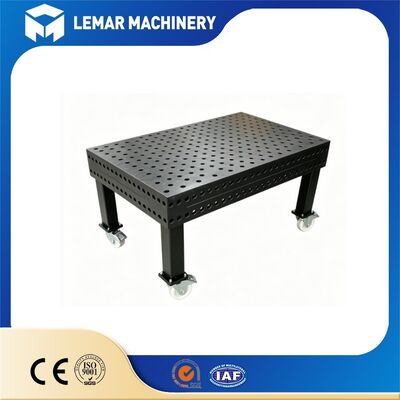

High Quality D16 3D Welding Table - Best Soldering Station
- Tabletop: Grid holes with laser engraved scale (1mm accuracy), with rulers around for easy measurement and positioning
- Support: Adjustable horizontal feet (±50mm) or with caster support, suitable for uneven ground and easy to move
- Standard accessories:
- Positioning/clamping components: locking pin, quick clamp, L-shaped block, V-shaped block, square ruler, extended crossbeam
- Auxiliary tools: U-shaped square box, angle support, height gauge, reference block
Technical Specifications (D16 Standard Version)
Material: Q355 steel (mainstream)/HT250/HT300 cast iron; The tabletop is about 12mm thick
Working face: 5 fully machined surfaces (top surface + 4 side surfaces), with optional side heights of 100mm/200mm
Hole system: Aperture 16mm, hole spacing 50 ± 0.05mm, positioning accuracy ± 0.03mm
Flatness: Countertop ± 0.1mm/1000mm, side ± 0.1mm/200mm
Hardness: HV450-630 (wear-resistant and rust proof)
Load bearing capacity: Standard 2 tons, frame version can reach 5 tons
Available Sizes
| No. | Size (mm) | Height (mm) | Material |
|---|---|---|---|
| 1 | 4000x2000 | 150 | Q355/HT300 Cast iron/Stainless steel |
| 2 | 3000x2000 | 150 | Q355/HT300 Cast iron/Stainless steel |
| 3 | 3000x1500 | 150 | Q355/HT300 Cast iron/Stainless steel |
| 4 | 2500x2000 | 150 | Q355/HT300 Cast iron/Stainless steel |
| 5 | 2500x1500 | 150 | Q355/HT300 Cast iron/Stainless steel |
| 6 | 2000x2000 | 150 | Q355/HT300 Cast iron/Stainless steel |
| 7 | 2400x1200 | 150 | Q355/HT300 Cast iron/Stainless steel |
| 8 | 2000x1500 | 150 | Q355/HT300 Cast iron/Stainless steel |
| 9 | 1500x1500 | 150 | Q355/HT300 Cast iron/Stainless steel |
| 10 | 2000x1000 | 150 | Q355/HT300 Cast iron/Stainless steel |
| 11 | 1200x1200 | 150 | Q355/HT300 Cast iron/Stainless steel |
| 12 | 1200x1000 | 150 | Q355/HT300 Cast iron/Stainless steel |
| 13 | 1000x1000 | 150 | Q355/HT300 Cast iron/Stainless steel |
| 14 | 1000x800 | 150 | Q355/HT300 Cast iron/Stainless steel |
Manufacturing Process
- Cutting: High power laser overall cutting, no deformation, no burrs in the hole position
- Bending/riveting welding: Overall frame fully welded and reinforced with internal reinforcing plates
- Annealing to relieve stress: Entire machine undergoes secondary high-temperature annealing process
- Precision machining: Five sided CNC milling machine for precision machining
- Two types of surface technology:
- Regular model: rust removal → phosphating → electrostatic spraying
- High end model: treated with gas nitriding for high surface hardness and temperature resistance
Certifications and Standards
Compliant with CE industrial machinery safety standards, with direct customs clearance for exports to Europe, the Middle East, and South America.
The process is benchmarked against German 3D welding tables, with precision and workmanship that can replace imports.
The welding table can provide material reports and factory precision testing reports.
Customer Reviews
"Here is my first Project off your magnificent Welding Table. Has changed my life! So calm knowing every measurement is perfect. Thank you!"
"The quality is outstanding, and the precision is exactly what I needed. This table has completely transformed my workflow. Every measurement locks in perfectly, no more guesswork or rework. Worth every penny!"
FAQ
Q: How much weight can the table support?
A: The standard table supports 2,000 kg evenly distributed. For larger or heavier workpieces, we offer reinforced frame options with a capacity of up to 5,000 kg.
Q: Are your accessories compatible with other brands?
A: Yes! Our tables follow the international standard for 16mm hole systems. Accessories from other major brands will work with our table, and our accessories are also fully interchangeable with other standard D16 systems.
Q: How is the table packed for shipping?
A: The table is securely packed in a fumigated wooden crate or steel frame for maximum protection during sea or air freight. We also offer export-standard packaging to meet all international shipping regulations.
Q: Do you ship worldwide?
A: Yes! We ship to most countries via sea, air, or rail freight. We can also work with your preferred forwarder or provide DDP/DDU service to your door.
Q: What warranty do you offer?
A: We provide a 1-year warranty on manufacturing defects for the table. Accessories are covered under a 1-year warranty. The warranty does not cover wear and tear from normal use, misuse, or modification.
Q: What if I need technical support after delivery?
A: Our technical team is available to provide video calls, assembly guides, and operational tips. If you have any questions about setup, calibration, or using accessories, just send us an email or WhatsApp message.
Q: Can I order replacement parts later?
A: Absolutely! We keep all standard accessories in stock. You can order replacement pins, clamps, or other parts at any time, and we can ship them to you separately.
