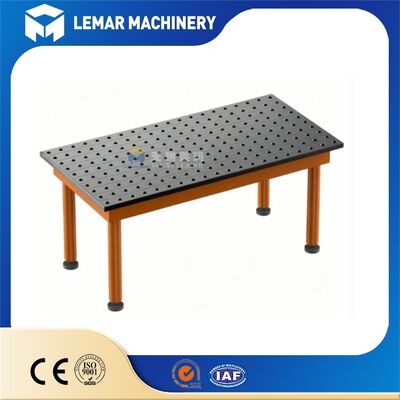

Surface nitriding treatment of D16 2D welding table
| MOQ: | 1 |
| Price: | 500-1500 USD |
| Standard Packaging: | 3000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole Diameter:
Φ16 Mm
Grid Spacing:
50 × 50 Mm
Surface Treatment:
Gas Nitriding Treatment
Material:
Q355B / S355JR High Strength Steel/HT300 Cast Iron
Nitriding Layer Depth:
0.3–0.5 Mm
Flatness:
≤0.1 Mm Per Square Meter
Hole Diameter Tolerance:
D10 Grade
Salt Spray Resistance:
Over 500 Hours
Deformation After Treatment:
≤0.02 Mm Per Square Meter
Product Description
Surface Nitriding Treatment of D16 2D Welding Table
Product Overview
- Durable Precision: Positioning holes show no wear even after long-term use; hole spacing and flatness remain unchanged for years.
- Superior Wear Resistance: Frequent clamping and tooling changes will not cause scratches or roughening of the surface.
- Minimum Maintenance Required: No need for frequent application of rust-preventive oil; resistant to rust even in humid workshops or outdoor storage.
- Double lifespan: Surface Nitriding Treatment of D16 2D Welding Table is more than three times more durable than regular blackened countertops
- Premium Appearance: Uniform matte gray-black surface with superior texture.
Customization & Specifications
| Any size can be customized | |
| Specifications (LxWxH) | |
| 1000x1000x50mm； | 2000x1000x50mm； |
| 1200x1200x50mm； | 2400x1200x50mm； |
| 1500x1500x50mm； | |
| Material:B, Q355 steel plate welding, c, high hardness steel plate welding, d, stainless steel plate welding | |
| Aperture:A = φ16.065 -- φ16.149mm. | |
| Hole spacing:L1=50±0.05mm. | |
| Engraved line:The scribe pitch W1 = 50±0.05mm. | |
| Flatness:0.1/1000mm. | |
| Verticality:0.05/200mm. | |
| Surface roughness:Ra3.2. | |
| Bearing:Standard type 2T, frame type: 5T. | |
| Hardness:Hardness of material body | |
Surface Nitriding Treatment Process
Process Principle
In a low-temperature sealed furnace at 500-580°C, ammonia gas (NH₃) or nitrogen gas is introduced to decompose active nitrogen atoms [N], which penetrate into the surface layer of the steel (depth 0.2-0.5mm) and combine with iron/alloy elements to form high hardness nitride layers.
Mainstream Process Types
- Gas Nitriding: Most commonly used, 510-550°C, NH₃ atmosphere, hardness HV600-700, takes 20-60 hours, suitable for mass production.
- Plasma/Ion Nitriding: Vacuum glow discharge, 350-450°C, N₂/H₂ plasma, hardness HV1000-1200, time-saving 30-50%, more environmentally friendly, suitable for high-precision/stainless steel parts.
- Corrosion Resistant Nitriding: Low temperature for short period, forming dense nitride film, salt spray resistance ≥500h, rust prevention is primary focus.
Core Performance (After Nitriding)
- Surface Hardness: HV600-700, 2-3 times higher than untreated steel (HV280-320)
- Wear Resistance Life: Increased by 3-5 times, positioning holes/tabletops less prone to wear and maintain accuracy long-term
- Corrosion Resistance: Dense nitride layer isolates water vapor/acid and alkali, increasing rust prevention ability by 5-10 times
- Dimensional Stability: Low temperature treatment, deformation ≤0.02mm/m, minimal change in flatness and hole spacing accuracy
- Fatigue Strength: Surface compressive stress (200-400MPa) increases fatigue life by 3-5 times
Frequently Asked Questions
What industries use this D16 2D welding tables?
Construction machinery, railway/automotive manufacturing, new energy (battery trays, storage cabinets), and general metal fabrication.
What is the lead time?
Standard sizes: 7-15 working days. Custom sizes: 15-25 working days.
What is the warranty?
12-month warranty against manufacturing defects.
Do you provide export documents?
Yes, including material test reports, heat treatment certificates, dimensional inspection reports, and CE declarations.
Do you provide technical support?
Yes, our team can provide guidance on table installation, accessory selection, and workpiece positioning via email, WhatsApp, or video call.
Maintenance and Lifespan
Routine Maintenance
Nitriding countertops do not require frequent brushing of rust proof oil. Daily cleaning of welding slag and iron filings is sufficient. Avoid prolonged scratching by hard objects. Regularly clean debris in positioning holes to prevent iron filings from blocking and affecting pin installation.
Service Life
Under normal operating conditions, the Surface Nitriding Treatment of D16 2D Welding Table service life can reach 8-10 years, which is more than three times longer than ordinary blackened versions (2-3 years), providing higher overall cost-effectiveness.
