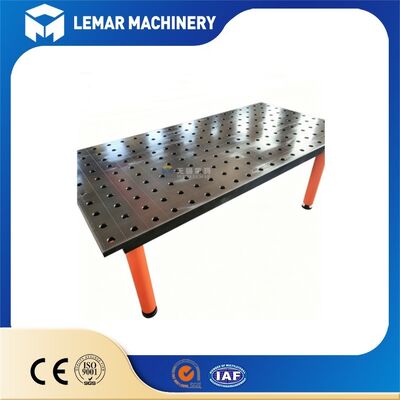

High Flatness D28 2D Welding Table for Quality Welding
| MOQ: | 1 |
| Price: | 500-1500 USD |
| Standard Packaging: | 3000*2000*200mm |
| Delivery Period: | 7-15 work days |
| Payment Method: | L/C,D/P,D/A,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole System:
D28 (φ28mm)
Grid Spacing:
100×100mm (±0.05mm)
Flatness:
≤0.1mm/m
Hole Pitch Accuracy:
±0.05mm
Hole Tolerance:
H7
Perpendicularity:
≤0.1mm/200mm
Repeat Positioning Accuracy:
±0.05mm
Table Material:
Q355 High‑Strength Steel / HT300 Cast Iron
Nitriding Depth:
0.3mm
Surface Hardness:
HRC 42–52 (HV450–630)
Process:
Stress Relief + CNC Milling + Gas Nitriding
Product Description
High Flatness D28 2D Welding Table for Quality Welding
Product Overview
Premium Quality Welding Tables | Global Professional Welding Table Manufacturer
- High-precision positioning: Hole system + high flatness allow for multiple welding passes in a single workpiece clamping, avoiding cumulative errors and improving product consistency.
- High-efficiency flexible tooling: Equipped with D28 standard fixtures, positioning solutions can be quickly established without the need for customized tooling, reducing changeover time by 70%+, suitable for multi-variety, small-batch production.
- Stable welding quality: High rigidity and no deformation; no workpiece displacement during welding, reducing welding deformation and rework, and improving the pass rate.
- Durable and easy to maintain: Nitrided surface prevents weld slag and rust; simple daily cleaning; stable accuracy over long-term use.
Core Parameters (D28 Standard)
- Hole Specifications: Hole diameter φ28mm (tolerance +0.065/+0.149mm), hole spacing 100±0.05mm, grid 100×100mm
- Flatness: ≤0.1-0.3mm/m (high flatness version ≤0.1mm/m)
- Perpendicularity: ≤0.05-0.1mm/200mm
- Material: High-quality cast iron (HT300) or Q355 steel, overall aging treatment to eliminate internal stress
- Surface Treatment: Gas nitriding (depth 0.25-0.35mm), hardness HRC42-52, anti-weld slag, rust-proof, wear-resistant
- Working Surface: 2D single-sided, five-sided usable, side height 200mm, with positioning holes/grooves
Common Sizes
| Product Name | Picture | Dimension(mm) |
|---|---|---|
| Basic 2D welding table | |
1000×600 1000×800 1000×1000 1200×800 1200×1000 1200×1200 1500×800 1500×1000 1500×1500 2000×1000 |
We offer non-standard customization services; please contact us for consultation if needed.
Quality and Craftsmanship Advantages
- All welding tables adopt stress relief aging treatment to avoid deformation for long-term use
- Precision CNC machining ensures strict flatness and hole position tolerance
- Surface with gas nitriding treatment, high hardness, anti-wear, anti-welding slag, rust-proof and long service life
- Every product is strictly inspected for flatness, verticality and hole accuracy before shipment, to keep stable and consistent quality for every batch
After-Sales Service and Support
- Professional technical team provides product selection guidance, layout suggestion and usage instruction
- Long-term after-sales support, spare parts supply and fixture matching service for all customers
Global Markets and Cooperation
- Our welding tables are exported to Europe, South America, Australia, Middle East and Central Asia markets
- We have rich experience in international trade, support multiple payment terms and shipping terms (CIF / DDP / FOB)
Trade Service Advantages
- Multilingual business team, fluent English communication
- Support customized logo, packaging and export standard wooden case
- Complete export documents, easy customs clearance
