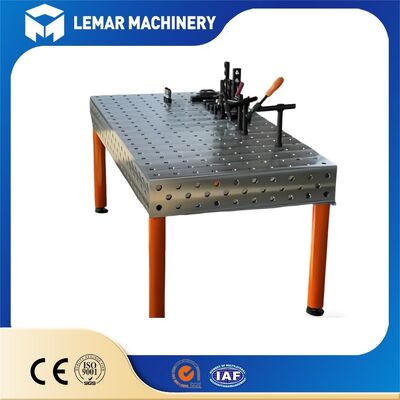

System 16 5 x5 (60 x60 ) Welding Table with Plasma Nitration
| MOQ: | 1 |
| Price: | 500-1000 USD |
| Standard Packaging: | 2000*3000*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,D/P,Western Union,T/T,L/C |
| Supply Capacity: | 500 units/month |
50mm x 50mm diagonal grid Welding Table
,Plasma Nitrided Surface Welding Table
,Precision Machined Surfaces System 16 Welding Table
The System 16 5x5 (60x60) Welding Table with Plasma Nitration features a small hole spacing and a plasma nitrided surface, making it suitable for precision welding of small workpieces and metal processing and assembly (such as motorcycle frames, electronic equipment brackets, and small mechanical parts). It is a lightweight adaptation of the System 28 series.
| Tabletop Dimensions | 5' x 5' (60" x 60", approximately 1500mm x 1500mm) |
| Hole Diameter | 16mm (Tolerance +0.05–+0.12mm) |
| Hole Pattern | 50mm x 50mm diagonal grid |
| Working Surfaces | 5 precision machined surfaces (top surface + 4 sides) |
| Edge Treatment | 45° chamfer + R2mm radius |
| Tabletop Weight | Approximately 600–800kg |
- Modular Fixture System
- Fixtures compatible with 16mm hole patterns:
- Positioning components: Small V-blocks, miniature locating pins, angle blocks;
- Clamping components: Quick-release pins (suitable for small-pitch hole patterns), small screw clamps;
- Auxiliary components: Miniature height support blocks, grounding plates.
- Application Scenarios
Covers light to medium-duty applications such as motorcycle/electric vehicle frame welding, electronic equipment metal bracket assembly, precision welding of small mechanical parts, and laboratory metal processing.
- Modular Expansion
M8/M10 threaded holes are reserved on the sides (150mm spacing), allowing multiple units to be joined together to form an extra-large work surface, suitable for mass production.
- More precise positioning: 50mm hole spacing is suitable for small workpieces, with a positioning accuracy of ≤±0.08mm;
- Lightweight and flexible: Lighter weight, and can be quickly moved with a wheeled stand;
- Controllable cost: Lower cost than System 28, suitable for small and medium-batch production needs;
- Strong durability: Plasma nitrided surface resists corrosion and thermal deformation, with a service life of 5–8 years.
