Load 10000kg Welding Fixture Table Steel Frame Welding Fab Table Adjustable Clamps
| MOQ: | 1 |
| Price: | 500-1000 USD |
| Standard Packaging: | 1500*2000*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
LEMAR
Certification
CE
Model Number
D28
Document
Material:
Steel
Application:
Welding And Fabrication
Assemblyrequired:
Yes
Surfacetreatment:
Powder Coated
Overall Load-bearing Capacity:
3000-10000kg
Surfaceflatness:
±0.2mm
Positioning Dimensions:
Five-axis Positioning (linear Positioning Along The X, Y, And Z Axes + Rotational Positioning Around The X And Y Axes)
Legmaterial:
Steel
Surface Hardness:
HRC 55-60
Legtype:
Adjustable
Holediameter:
28mm
Highlight:
load 10000kg Welding Fixture Table
,Welding Fixture Table Steel Frame
,welding fab table Adjustable Clamps
Product Description
D28 Welding Table Robust Modular Steel Frame with Adjustable Clamps and Work Surface

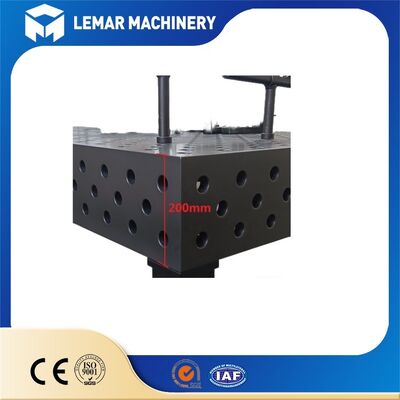

The D28 Welding Table features a robust modular steel frame with adjustable clamps and work surface. The D28 designation indicates a table surface with 28mm diameter grid holes. Constructed from high-strength steel, the table features a precise grid of D28 holes on its surface and sides, enabling rapid fixture installation and workpiece positioning in three dimensions (X/Y/Z). This system is ideal for heavy-duty, high-precision welding of medium to large steel components, serving as core equipment for achieving universal tooling with precise positioning in flexible manufacturing applications.
| Material | Q355/HT300/HT250 |
|---|---|
| Hole Pattern Design | 100mm hole spacing with five-sided clamping capability |
| Supporting Structure | Heavy-duty support legs with single leg load capacity of 500-1000kg |
| Positioning Accuracy | ±0.05mm |
| Load Capacity | 3000-10000kg |
| Service Life | Overall service life: 10-15 years, accuracy retention period: ≥5 years |
Strong Universal Compatibility
The D28 is the mainstream hole pattern standard in the global welding fixture field, compatible with most brands of fixtures including ratchet F-clamps, locating pins, support blocks, and hydraulic clamps. This eliminates the need for custom fixtures and significantly reduces tooling costs.
Three-Dimensional Flexible Clamping
The grid holes cover the table surface and sides, allowing fixtures to be installed at any position on the X/Y/Z axes. This enables dead-angle-free positioning of complex-shaped steel parts such as irregularly shaped frames and multi-faceted welded components, significantly shortening tooling changeover time.
Balancing Heavy Load and Precision
The thick steel plate structure and heat treatment process ensure both the stability of heavy workpieces and maintain high-precision positioning capabilities, solving the problem of low precision under heavy load commonly found in traditional welding tables.
Safety and Compliance Design
Structural Safety
The support legs utilize a triangular stable structure with anti-slip footpads, combined with ground fixing holes to prevent tipping when placing heavy workpieces. Table edges are beveled to prevent operator injuries.
Industry Certifications
Compliant with ISO 9001 quality management system, CE certification (European Union), and ANSI B5.57 standard (North America). Some models are also certified to IATF 16949 (automotive industry) and AS9100 (aerospace) standards, meeting the quality and safety requirements of high-end industries.
