Assembly Porous High-Precision 4'*4' Welding Fixture Tab

The Assembly Porous High-Precision 4'x4' Welding Fixture Table is a standardized tooling platform developed by LEMAR for welding small and medium-sized workpieces. It features a modular, assembly-based design, allowing for quick assembly without on-site welding. The table surface is covered with a precise grid of holes, enabling rapid three-dimensional positioning and clamping of workpieces. The compact 4'x4' size balances operational flexibility with space efficiency, making it particularly suitable for production environments with limited workspace and relatively consistent workpiece sizes.

• 1. Easy Assembly and Flexible Deployment
  The modular design eliminates the need for a professional installation team; ordinary workers can complete the assembly using bolts. The workstation layout can be quickly adjusted according to production needs, and disassembly facilitates workshop relocation or use in different locations.
• 2. Imperial Standard, Suitable for Overseas Markets
  The 4'×4' size is a common workbench size in overseas markets such as North America and Europe, directly matching existing workstation spacing and material rack dimensions in customer workshops, eliminating the need for additional space adjustments.
• 3. Multi-Hole High Precision, Improving Welding Efficiency
  The three-dimensional grid hole system supports rapid positioning and clamping of workpieces. Compared to traditional welding platforms, tooling changeover time is reduced by more than 70%, making it especially suitable for flexible production of multiple varieties and small to medium batch workpieces.
• 4. Cost-Effective and Compact
  Compared to large-sized welding tables, this model offers lower cost and smaller footprint while maintaining precision, making it a cost-effective solution for welding small to medium-sized workpieces.

Precision you can see, quality you can trust.

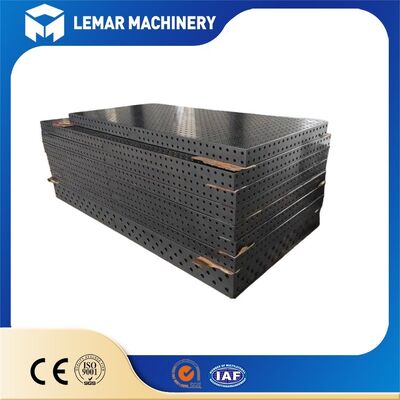

These actual product shots of LEMAR’s 3D modular welding tables showcase the core of our craftsmanship: CNC-machined D28 grid holes with ±0.05mm positioning accuracy, high-strength alloy steel tabletop with nitriding treatment, and a rigid modular structure built for heavy-duty applications.
Every hole, every edge, every connection is engineered to deliver repeatable precision and long-lasting durability. No renderings, no exaggerations – just the real performance of a 16-year professional manufacturer’s product.

• 1.Customization: Supports customization of tabletop thickness, hole specifications (D28/D16), and number of support legs; can integrate auxiliary functions such as tool hanging boards and waste trays.
• 2.Certification: CE, ANSI B5.57, and ISO 9001 certified, meeting international market access standards.
• 3.After-sales service: 2-year warranty on core structure, 1-year warranty on accuracy, 24-hour technical support, and global on-site installation services.

These actual product photos showcase the true quality of LEMAR’s 3D modular welding tables – a reflection of our 16 years of dedication to precision engineering and reliable manufacturing.
We take pride in delivering products that not only meet but exceed your expectations, with every detail designed to enhance your welding accuracy and productivity.
Should you wish to learn more about our product specifications, customize a solution, or request a quote, please don’t hesitate to contact me directly.
