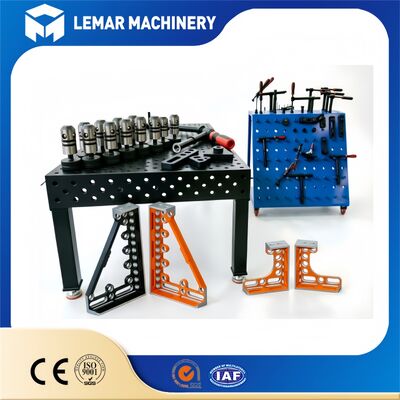

Modular Welding Table D28 for vehicle frame modification projects
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 modular welding table
,welding table for vehicle frames
,welding fixture table D28
This Modular Welding Table D28 is specially engineered for vehicle frame modification, chassis fabrication and off‑road build projects. Built around the standard D28 modular hole grid, it delivers repeatable positioning and precise alignment when cutting, fitting and welding frame rails, cross members and suspension mounts. The nitrided tabletop withstands frequent grinding impacts and welding spatter common in custom vehicle shops. The flexible fixture system lets builders quickly reconfigure stops, clamps and supports to suit truck frames, buggy chassis, roll cages and custom trailer frames without building dedicated one‑off jigs. It is designed to help frame modifiers keep all reference points consistent and reduce alignment errors.
Every table is precision machined to ± 0.1mm/m flatness tolerance and inspected before shipment. No wobbly setups, no shimmed workpieces, no guessing. Square joints fit perfectly, parallel surfaces stay aligned, and every weld goes where it's supposed to. When precision matters, this table delivers.
Professional nitriding treatment hardens the steel surface to 60+ HRC—3-5 times harder than untreated steel. The result: exceptional wear resistance, superior rust protection, and welding spatter that chips off cleanly with a simple chisel. A nitrided table stays accurate and looks better for years longer than a standard painted or ground table.
The 28mm diameter hole system with 100mm grid spacing is the European industrial standard—and for good reason. It accepts a massive range of heavy-duty clamping accessories, handles high clamping forces, and is compatible with most major fixturing brands. Drop in a bolt, slide on a bracket, and you're set up in seconds.
Why settle for a fixed table when you can have a modular one? Our D28 system works with hundreds of fixturing accessories—clamping bolts, angle brackets, stop blocks, V-blocks, quick-release pliers, riser blocks, and more. Weld tubes, frames, brackets, sheets, and custom profiles all on the same table. Set up once, weld perfectly, then reconfigure for the next job.
This isn't a hobby table. It's a professional welding work table built from solid Q355 steel plate with heavy welded leg structure. Rigid, stable, and vibration-damping—exactly what you need for consistent, high-quality welding. Built to take daily industrial use and keep performing year after year.
| Parameter | Specification |
|---|---|
| Product Name | Modular Welding Table D28 |
| Table Top Material | Q355 Steel |
| Surface Treatment | Nitrided (Hardness ≥ 60 HRC) |
| Hole System | D28 (28mm diameter) – 100mm × 100mm grid |
| Flatness Tolerance | ± 0.1 mm / meter (certified) |
| Table Top Thickness | 25 mm (customizable) |
| Load Capacity | 3,000 - 8,000 kg (depends on size & thickness) |
| Standard Sizes | 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 mm |
| Custom Sizes | Available on request |
| Leg Construction | Heavy-gauge steel tube, fully welded & braced |
| Table Height | 800 - 900 mm (customizable) |
| Fixturing Compatibility | D28 standard – compatible with most major brands |
| Available Accessories | Clamping bolts, angle brackets, stop blocks, V-blocks, clamping pliers, riser blocks, and more |
| Application | Welding, assembly, positioning, fixturing, jigging |
This D28 modular welding table is ideal for vehicle frame modification workshops, off‑road chassis fabrication shops, classic car restoration garages, roll cage manufacturing, custom trailer frame building and small batch recreational vehicle frame upgrades. It supports fitting, tack welding and final assembly of almost all custom metal vehicle structures
If you run a vehicle modification shop and need a dependable modular welding platform for chassis and frame builds, send us your preferred table size and accessory requirements. Our sales team will prepare a custom quotation that fits your frame modification workflow. We look forward to helping you deliver accurate high quality custom vehicle frames.
