HJ2525 Column & Boom Welding Manipulator for Vessel & Tank Fabrication
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 300.00cm * 130.00cm * 270.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Column Boom Welding Manipulator
,Welding Manipulator for Tank Fabrication
,Vessel Welding Manipulator Fixture

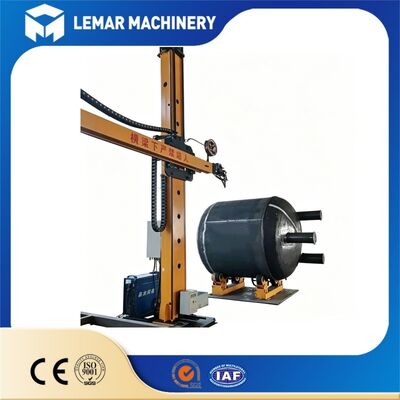

The HJ2525 welding manipulator, also known as a column and boom welding manipulator, is an automatic welding moving carriage designed for tank, pressure vessel, and tubular component fabrication. It features a 2500 mm boom lifting stroke and a 2500 mm boom telescoping stroke, with medium load capacity at the boom end and VFD infinitely variable speed for boom movement. This cross arm manipulator can be paired with turning rolls or a welding positioner to form a complete automatic welding station, and is compatible with SAW, MIG, and TIG welding processes. CE certified, it is widely adopted in boiler, petrochemical, and steel structure workshops for longitudinal and inner/outer seam welding.
- The HJ2525 manipulator offers a 2500 mm lifting stroke and a 2500 mm horizontal telescoping stroke, covering most medium vessel welding working ranges.
- Heavy box-type column and boom structure, after stress relief annealing, ensures low deflection and stable running under rated boom end load.
- VFD stepless speed regulation for boom lifting and extension provides smooth movement and precise positioning of the welding torch.
- A built-in anti-fall safety protection device on the vertical lifting system effectively prevents sudden falling of the cross arm, enhancing workshop safety.
- The boom tip is equipped with a cross slide fine adjustment unit, allowing operators to adjust welding torch position accurately during welding operations.
- Supports linkage control with welding turning rolls and welding positioners, enabling coordinated automatic welding for cylindrical workpieces.
- Multiple optional accessories are available, including a seam oscillator, weld monitoring camera, and flux recovery system for submerged arc welding.
| Item | Specification |
|---|---|
| Model | HJ2525 Welding Manipulator |
| Boom Effective Lifting Stroke | 2500 mm |
| Boom Effective Telescopic Stroke | 2500 mm |
| Max Load at Boom End | 50 kg |
| Boom Lifting Speed | 80 mm/min |
| Boom Telescoping Speed | 150~2500 mm/min, VFD stepless adjustable |
| Column Rotation | Manual / Electric optional |
| Base Type | Fixed base / Motorized trolley optional |
| Control System | Separate control box + remote controller |
| Applicable Welding Process | SAW, MIG, MAG, TIG optional |
| Power Supply | 380V 3Phase 50/60Hz customizable |
| Certification | CE |
| Condition | New |
- Welding of medium pressure vessel shells, matched with turning rolls for inner and outer seam welding in pressure vessel workshops.
- Longitudinal seam welding for stainless steel and carbon steel tank barrels in water tank and storage tank manufacturing factories.
- Boiler component welding in boiler workshops, enabling automatic welding on boiler tubes and boiler shells.
- Petrochemical equipment component fabrication, including automatic welding for tubular and cylindrical process equipment.
- Steel structure tubular member welding, improving weld consistency and reducing manual welding labor costs.
- Wind power small tower section welding, cooperating with rotary equipment to complete continuous welding work.
- Heavy mechanical part surfacing repair, equipped with a SAW welding source for hardfacing on workpiece surfaces.
- Column and boom main structural parts are wrapped with thick stretch film to prevent scratches, dust, and rust during ocean shipping.
- The electrical cabinet, remote controller, and fine adjustment cross slide are packed into a solid export plywood case with shockproof foam.
- The whole package is seaworthy and moisture-proof, suitable for long-distance sea transportation to global metal fabrication buyers.
- Split packing design for the large frame makes it easy to load into a 20GP or 40GP container together with turning rolls and positioners.
- Standard production lead time is 22 working days after deposit; shorter delivery time is negotiable for urgent manufacturing projects.
- Complete machine running inspection is performed before shipment; test video and photos will be sent for your confirmation before packing.
- Third-party inspection service is available; customers or appointed inspectors can witness the machine test and loading at the factory.
Q: What is the stroke of the HJ2525 welding manipulator?
A: 2500 mm lifting stroke and 2500 mm telescoping stroke — a medium-duty column and boom manipulator.
Q: What is the max load at the boom end?
A: Rated load is 50 kg for mounting the welding torch, wire feeder, and auxiliary accessories.
Q: What welding processes can this manipulator match?
A: It is compatible with SAW, MIG, MAG, and TIG welding sources for vessel and tank welding.
Q: Can we choose a motorized trolley base for this HJ2525?
A: Yes, fixed base and motorized traveling trolley are the two optional base types.
Q: What is the lead time of the HJ2525 column boom manipulator?
A: 22 working days after deposit; negotiable for urgent orders.
Q: Will you send a machine test video before shipment?
A: Yes, a full running test video and photos will be sent for confirmation before packing.
Q: Does this welding manipulator hold a CE certificate?
A: Yes, it is CE certified and meets European safety standards for metal fabrication workshops.
