1200mm Automatic Longitudinal Seam Welder For Cylinder Tank Fabrication
| MOQ: | 1 |
| Price: | 500-1000USD |
| Standard Packaging: | 150.00cm * 80.00cm * 100.00cm |
| Delivery Period: | 10-20 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
1200mm automatic seam welder
,longitudinal seam welder for cylinder tanks
,automatic tank fabrication welder

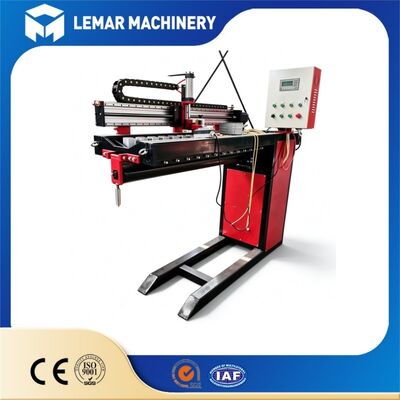

The ZF-1200 automatic longitudinal straight seam welding machine features pneumatic clamping and PLC touch screen control. With a maximum effective welding length of 1200 mm, it is purpose-built for automatic longitudinal seam welding of cylindrical shells, stainless steel tanks, air ducts, and pressure vessel segments. The machine is compatible with TIG, MIG, and plasma welding sources, delivering a uniform weld bead with low deformation while greatly improving welding consistency and production efficiency. CE certification is available.
- Maximum 1200 mm effective welding stroke, ideal for medium-length cylinder shell longitudinal seams.
- Pneumatic fast clamping system ensures sheets are tightly fixed to avoid welding deviation.
- PLC + touch screen control with digitally adjustable welding speed and welding parameters.
- Cantilever heavy welded frame, stress relieved for stable running in continuous batch production.
- Supports TIG / MIG / plasma welding sources to match different metal material requirements.
- Water-cooled welding torch system for long continuous working time.
| Item | Specification |
|---|---|
| Model | ZF-1200 |
| Effective Welding Length | 1200 mm |
| Workpiece Thickness | 0.5–6 mm |
| Applicable Workpiece Diameter | Φ100–Φ1200 mm |
| Welding Speed | 0.2–2 m/min stepless adjustable |
| Clamping Type | Pneumatic clamping |
| Control System | PLC + Touch Screen |
| Welding Source | TIG / MIG / Plasma optional |
| Power Supply | 380V 50Hz, customizable |
| HS Code | 84688000 |
| Certification | CE |
| Warranty | 12 months |
| Optional Parts | Weld oscillator, wire feeder, torch swing unit |
- Longitudinal seam welding of stainless steel water tanks and storage tank cylinders.
- Manufacturing of air ducts, fan barrels, and thin-wall cylinder shells.
- Longitudinal welding of small pressure vessels and heat exchanger segments.
- Fabrication of carbon steel, stainless steel, and aluminum alloy sheet cylinders.
- Production of metal barrels, filter cylinders, and tubular components.
- Integration with turning rolls to build a fully automatic cylinder welding workstation.
- Weld oscillator for a wider weld bead.
- Automatic wire feeder matching MIG welding source.
- Torch height tracking system for thickness fluctuation.
- Special fixture for small-diameter thin-wall cylinders.
- Dust and welding fume extraction hood.
- Robot communication module for automated production lines.
- Replaces manual straight seam welding with stable weld quality and less rework.
- Pneumatic fast clamping shortens workpiece positioning time.
- Digital parameter storage with one-click recall for repeated batch orders.
- Low workpiece thermal deformation reduces post-weld grinding workload.
- Easy integration with roller beds for a full cylinder welding cell.
- Simple operation — workers can master the machine quickly after short training.
A1: Stainless steel, carbon steel, aluminum alloy, and other metal sheets with a thickness of 0.5–6 mm.
A2: Yes, the machine can match your existing TIG / MIG / plasma welding source.
A3: The standard minimum workpiece diameter is Φ100 mm; a smaller-size fixture can be customized.
A4: The weld oscillator is an optional extra accessory and is not part of the standard equipment.
A5: A 12-month warranty against manufacturing defects, excluding wearing spare parts.
A6: Yes, it can be combined with turning rolls to complete the full cylinder welding process.
