D16 Series Cast Steel 3D Welding and Assembly Table System
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200m |
| Delivery Period: | 15-25 work days |
| Payment Method: | Western Union,T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Material:
HT300 Cast Iron /Q355 Steel
Hole Diameter:
Φ16 Mm
Grid Spacing:
50 × 50 Mm
Hole Tolerance:
H7
Flatness:
0.1 Mm / 1000 Mm
Hole Center Distance Tolerance:
±0.03 Mm
Perpendicularity Of Working Surfaces:
0.1 Mm / 200 Mm
Standard Side Wall Height:
150mm
Feature:
5 Working Surfaces For 3D Multi-angle Positioning
Product Description

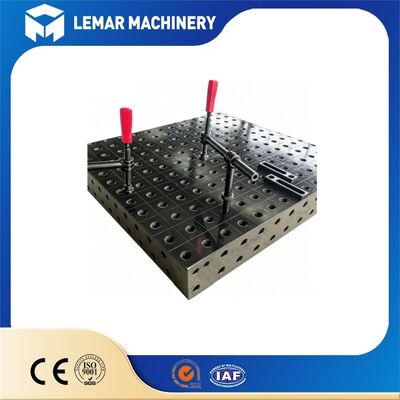

D16 Series Cast Steel 3D Welding and Assembly Table System
Our D16 Series Cast Steel 3D Welding and Assembly Table System represents a premium heavy-duty flexible fixturing platform. Constructed from high-strength cast steel raw material and undergoing rigorous stress elimination treatment, the table achieves outstanding dimensional stability and impact resistance.
Equipped with a universal D16 hole system and comprehensive modular accessories, it enables omnidirectional clamping in three-dimensional space. This system is widely applied in sheet metal processing, auto parts fabrication, and automated welding workshops. Optional nitriding surface treatment further enhances wear resistance and anti-spatter performance for long-term industrial use.
Product Advantages
| 3D Flexible Fixture Welding Table | Traditional Welding Table |
|---|---|
| A single table system that accommodates any product type | Can only be configured for one or a few products of the same type |
| Positioning accuracy within 0.05-0.1mm, without cumulative error | Welding processing is rough, generally with larger errors |
| Yield rate of clamped and welded products exceeds 95% | Defective product rate typically around 5%-10% |
| Reconfiguration in minutes without new tooling development | Tooling development, production, and debugging cycle up to half a month |
| Precision processed to ensure consistent quality | Tooling often has variations in accuracy and performance |
| Comprehensive training with videos and demonstrations - operational within 2 hours | Requires learning for each tooling set, making systematic training impossible |
| Standardized, modular system with numbered accessories for easy maintenance | Accumulated in various shapes, difficult to manage and maintain |
| One-time investment with long-term benefits | Requires continuous investment with higher overall costs |
Investment Value and Economic Advantages
- Elimination of dedicated tooling costs: A single flexible system replaces dozens of custom welding fixtures, drastically reducing design, machining, and storage expenses
- Rapid changeover: For high-mix, low-volume orders, fixture reconfiguration time reduced from days to under 30 minutes
- Stable, repeatable positioning: Improves dimensional consistency across batches and reduces rework rates
- Exceptional service life: 8-15 years with proper use, compared to the typical 2-3 year lifespan of traditional dedicated tooling
- Versatility: No need to purchase new base platforms when expanding production capacity or developing new products
Detailed Design Features
- Grid Layout of Bottom Reinforcement Ribs: Features an integrated cast structure combining grid pattern with radial ribs, ensuring uniform load distribution and preventing localized deformation. Rib thickness is graduated based on tabletop dimensions.
- Integrated Lifting Lugs: Large tables (≥1500×1000 mm) feature pre-cast lifting lugs or threaded lifting holes. High-end cast steel platforms utilize integrated lifting points for safe transport via forklifts or overhead cranes.
- Welded Grounding Structure: Standard M16 threaded grounding base ensures stable electrical conductivity, preventing damage from haphazard spot-welding. Meets international workshop safety regulations.
- 30° Chamfered Hole Edges: All D16 positioning holes feature chamfers on both top and bottom edges to facilitate rapid pin insertion, prevent edge damage, and reduce weld spatter accumulation.
Interested in the D16 Series Cast Steel 3D Welding and Assembly Table System?
We provide flexible configuration solutions and comprehensive matching accessories. Please contact us to get the latest pricing and product catalog.
