Precision D28 3D Welding Fixture Table for Tooling
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Hole System:
D28, Φ28 mm H7 Tolerance
Grid Pitch:
100 mm × 100 mm
Hole Layout:
Top Surface + Four Vertical Sides, Full 5‑sided 3D Hole Pattern
Available Material:
HT300 Grey Cast Iron / Q355 High‑Strength Steel Plate
Surface Treatment:
Ion Nitriding
Repeat Positioning Accuracy:
±0.05 mm
Hole‑to‑Hole Position Tolerance:
±0.05 mm
Adjacent Side Perpendicularity:
0.1 mm / 200 mm
Surface Roughness:
Ra 3.2 μm
Highlight:
3D welding fixture table for tooling
,Precision D28 welding table
,3D welding table with fixture
Product Description

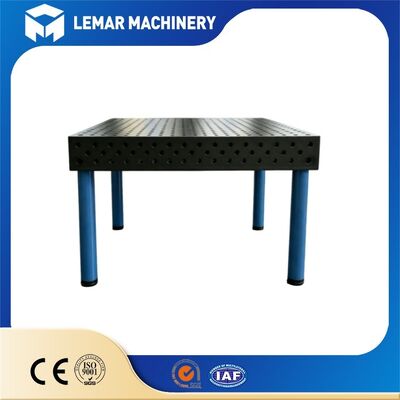

Precision D28 3D Welding Fixture Table for Tooling
Our Precision D28 3D Welding Fixture Table for Tooling is a heavy-duty modular fixturing platform built for tooling fabrication, heavy-duty assembly and high-precision welding jobs. Featuring full 3-sided / 5-sided hole pattern with Φ28 H7 holes on top and four vertical sides, this D28 welding fixture table delivers reliable X/Y/Z-axis positioning for building custom jigs, fixtures and tooling bases. Manufactured from stress-relieved HT300 cast iron or Q355 steel plate with full nitrided surface HV550-900, it ensures outstanding flatness, long-term stability and excellent anti-spatter performance. Fully compatible with global D28 modular clamping accessories, it eliminates high costs for dedicated single-purpose jigs and perfectly fits robot welding stations, mechanical frame production and low-medium volume mixed-part manufacturing.
Key Technical Precision Parameters
- Flatness: ≤0.1 mm/1000 mm (National industrial standard)
- Hole spacing accuracy: 100 mm ±0.05 mm
- Locating pin hole accuracy: H7; repeatability: ±0.05 mm
- Tabletop perpendicularity: 0.1 mm/200 mm
- Surface roughness: Ra 3.2 μm
- Load-bearing capacity: Static load 5-10 tons, dynamic welding load approx. 2 tons; significantly higher capacity than D16 series welding tables, designed primarily for heavy-duty workpieces
- Standard tabletop thickness: 25-30 mm; standard tabletop height: 200 mm (excluding support structure)
Standard Sizes (Customizable)
Common specifications (mm):
- 1000×1000
- 1500×1000
- 2000×1000
- 2000×1500
- 2000×3000
- 2000×4000
Supports modular splicing to create extra-large tooling welding tables.
Compatible supports: Fixed legs, steel frame bases, or hydraulic lifting bases are available; includes leveling feet.
Packaging and Shipping
- Export Packaging: Fumigated solid wood crates or fumigation-free plywood crates; protective rubber padding on the tabletop and protection for mounting holes; split packaging for large-sized units.
- Transport Risks: For long-distance sea or land transport, do not drop or throw the unit during unloading; use designated lifting lugs for hoisting; do not wrap steel cables directly around the tabletop.
- Installation upon Arrival: After delivery, uncrate the unit and let it sit for 24 hours to acclimate to the ambient temperature before leveling and verifying precision; rapid temperature fluctuations can cause temporary measurement deviations.
- Warranty: Standard 12-month warranty for welding tables; extended warranty (2-3 years) available for purchase; warranty excludes arc burns, damage from violent impact, and wear-and-tear parts.
Need more details about the Precision D28 3D Welding Fixture Table for Tooling?
Share your working conditions, preferred dimensions and material requirements with us. We will reply with professional advice and a favorable offer shortly. Submit your inquiry now.
