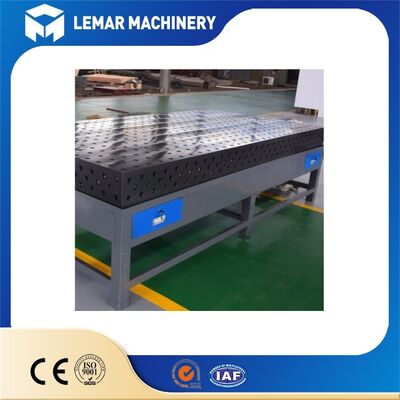

Style D28 3D Welding Table for Large Welded Constructions
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200 |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D28
Document
Hole System:
Φ28mm D10, 100×100mm Grid
Material:
Q355 High Strength Structural Steel
Surface Treatment:
Nitriding
Working Faces:
5-sided Machining (Top + 4 Vertical Sides)
Flatness Tolerance:
≤0.1mm / 1000mm
Standard Working Height:
620mm
Tabletop Thickness:
25mm
HS Code:
851590/732690
Shipping Method:
Sea Freight / Air Freight / Rail Freight / Express Delivery
Product Description
Style D28 3D Welding Table for Large Welded Constructions
The Style D28 3D Welding Table is a heavy-duty modular fixturing system specially designed for the production of large and heavy welded structures. Built with standard Φ28mm hole system on a 100×100mm grid and five fully machined working surfaces, it supports flexible clamping and positioning in X, Y and Z axes.
Constructed from high-strength Q355 steel and treated with plasma nitriding, this welding table features superior rigidity, high load capacity and reliable long-term precision. It can be freely spliced to form ultra-large working surfaces, perfectly meeting the fabrication demands of chassis, machinery booms and large steel frames, ideal for both manual welding stations and automated robotic welding lines.
Specifications
| Model | Table Size (L × W) | Tabletop Thickness | Hole Diameter | Grid Spacing |
|---|---|---|---|---|
| D28-1010 | 1000 × 1000 mm | 25 mm | Φ28 mm (D10) | 100 × 100 mm |
| D28-1012 | 1000 × 1200 mm | 25 mm | Φ28 mm (D10) | 100 × 100 mm |
| D28-2010 | 2000 × 1000 mm | 25 mm | Φ28 mm (D10) | 100 × 100 mm |
| D28-2412 | 2400 × 1200 mm | 25 mm | Φ28 mm (D10) | 100 × 100 mm |
| D28-3015 | 3000 × 1500 mm | 25 mm | Φ28 mm (D10) | 100 × 100 mm |
| D28-3020 | 3000 × 2000 mm | 25 mm | Φ28 mm (D10) | 100 × 100 mm |
| D28-4020 | 4000 × 2000 mm | 25 mm | Φ28 mm (D10) | 100 × 100 mm |
Multiple welding table modules can be rapidly assembled with a unified reference system, making them suitable for welding extra-long trusses, vehicle frames, and construction machinery structures.
Key Features
- Heavy-Duty Rigid Design - Features Φ28 large holes and a 100mm grid pattern with a robust fixture body, making it ideal for thick steel plates, heavy-duty frames, and construction machinery components; in contrast, D16 systems welding tables have smaller holes and lighter structures, suitable only for small-to-medium sheet metal and tubing.
- 3D Flexible Modular System - Eliminates the need for custom welding jigs. Using standardized accessories (locating pins, right-angle blocks, supports, quick-acting clamps, and V-blocks), fixtures can be assembled in minutes; enables rapid job changeovers, making it perfect for processing a wide variety of steel structures.
- Five-Sided Usability - The four side faces also feature D28 holes, allowing for lateral extensions to support and secure extra-long workpieces--perfectly suited for the assembly of large-scale components.
- Wear and Spatter Resistance - The nitrided table surface prevents weld spatter adhesion and ensures long-term dimensional accuracy.
- Global Standard - The D28 system welding table is the mainstream standard for heavy-duty welding fixtures in Europe; accessories are globally compatible and interchangeable with major European and American brands.
Support Leg System (Optional Configuration)
- Fixed legs: Standard height of 620 mm, rated load capacity of 2 tons per leg; equipped with leveling feet (adjustment range: ±50 mm) for floor leveling.
- Height-adjustable legs: Adjustable range of 750-920 mm to accommodate operators of different heights.
- Mobile caster assembly: Casters combined with lockable support feet; retract the feet when moving, and lower them to bear the load during stationary machining; ideal for frequent workpiece transport within the workshop.
Important Note: For extra-large platforms (3000×2000, 4000×2000), relying on casters for long-term load-bearing is not recommended; heavy loads must be supported by the feet resting on the floor.
Routine Maintenance Manual
- Daily after-work routine: Clean away welding slag and metal debris; do not allow slag to cool and adhere inside the tabletop holes.
- Weekly: Clean all positioning holes and apply a thin layer of anti-rust oil.
- Long-term storage: Cover with a rainproof and dustproof sheet; store indoors.
- Surface protection: Do not use an angle grinder for large-area grinding on nitrided welding table, as this will damage the hardened surface layer.
- Precision verification: Periodically verify flatness using a level; if precision declines, the unit can be returned to the factory for regrinding and restoration.
Tired of inefficient custom jigs for oversized workpieces?
The Style D28 3D Welding Table for Large Welded Constructions is your ideal choice.
Share your working dimensions and demands, and we will provide professional configuration suggestions and a formal quotation without delay.
