D16 1000x1000mm Modular Welding Table for Small Parts Assembly Operations
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI , CHINA
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole Standard:
Φ16 Locating Hole, 50×50mm Uniform Grid
Hole Layout:
Full 5-sided Holes (tabletop + Four Vertical Sides)
Tabletop Material:
Q355 Thick Welded Steel/HT300 Stress-relieved Cast Iron
Surface Treatment:
Nitriding
Repeat Positioning Accuracy:
±0.05mm
Flatness Tolerance:
≤0.1mm/1000mm
Hole Tolerance:
Φ16.065 ~ Φ16.149 Mm
Vertical Perpendicularity Of Side Face:
≤0.05mm / 200mm
Surface Hardness:
HV 500+
Highlight:
modular welding table for assembly
,small parts welding table
,1000x1000mm 3D welding table
Product Description

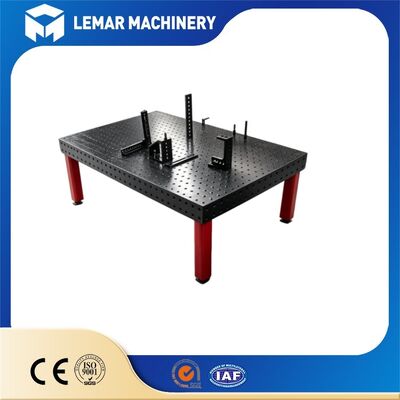

D16 1000x1000mm Modular Welding Table for Small Parts Assembly Operations
The D16 1000x1000mm Modular Welding Table for Small Parts Assembly Operations is a space-saving modular welding workbench designed exclusively for small metal component assembly and precision welding. With full five-sided Φ16 locating holes on a 50mm grid, it enables flexible multi-angle clamping without custom tooling. Available in cast iron and welded steel versions with wear-resistant nitrided finish, this D16 modular table delivers stable precision, reduces production costs and perfectly fits limited-space small parts processing workshops.
Modular Welding Table Size Specifications
| Table Dimension (Length × Width) | Standard Table Height | Approx. Cast Iron Net Weight | Uniform Distributed Load |
|---|---|---|---|
| 1000 × 800 mm | 100/150 mm | 110 KG | 2 Ton |
| 1000 × 1000 mm | 100/150 mm | 130 KG | 2 Ton |
| 1200 × 800 mm | 100/150 mm | 128 KG | 2.2 Ton |
| 1200 × 1000 mm | 100/150 mm | 148 KG | 2.2 Ton |
| 1500 × 1000 mm | 100/150 mm | 185 KG | 2.5 Ton |
| 1500 × 1500 mm | 100/150 mm | 230 KG | 2.5 Ton |
| 2000 × 1000 mm | 100/150 mm | 245 KG | 3 Ton |
| 2000 × 1500 mm | 100/150 mm | 310 KG | 3 Ton |
| 2500 × 1200 mm | 100/150 mm | 365 KG | 3.5 Ton |
| 2500 × 1500 mm | 100/150 mm | 410 KG | 3.5 Ton |
| 3000 × 1500 mm | 100/150 mm | 475 KG | 4 Ton |
| 3000 × 2000 mm | 100/150 mm | 560 KG | 4 Ton |
| 4000 × 2000 mm | 100/150 mm | 720 KG | 5 Ton |
Key Design Advantages
- Universal Standardized Fixture System - Compatible with standard modules such as L-shaped squares, locating pins, quick-acting clamps, V-blocks, height spacers, and extension plates; all components fit the D16 system with 50mm hole spacing.
- 3D Clamping Capability - Features horizontal positioning on the table surface combined with vertical positioning on the sides; capable of securing irregular small parts, tubular components, and bent sheet metal. Enables clamping at any angle, solving positioning challenges for the assembly, tack welding, and full welding of complex small parts.
- Rapid Production Changeover & Reduced Trial-and-Error Costs - Setting up tooling for new products takes only 10-20 minutes, compared to days for traditional dedicated fixtures. Switching between different small-part varieties requires no new jig fabrication, significantly reducing idle tooling inventory--making it ideal for R&D prototyping and multi-specification, small-batch orders.
- High Repeat Positioning Accuracy - Machining tolerances for the hole grid are extremely tight, allowing the same tooling setup to be disassembled and replicated repeatedly. This ensures high dimensional consistency across batches of small parts, thereby reducing welding rework and scrap rates.
Support Bracket Types
The welding table weighs approximately 120 kg for the cast iron version and 90 kg for the steel plate version; when paired with a support frame, both have a rated uniform load capacity of 2 tons:
- Fixed Base Legs (Most Common) - Four independent steel tubular legs featuring rubber leveling feet at the bottom, allowing for ±30 mm of height fine-tuning. Provides a standard standing working height of 800-900 mm with excellent stability and no wobbling; ideal for fixed workstations and R&D prototyping areas.
- Mobile Frame with Locking Casters - Equipped with heavy-duty polyurethane swivel casters and dual brakes at the base, allowing the unit to be moved to welding robots or inspection stations. The rated load capacity is reduced to 1 ton during movement; the preferred choice for the multi-station transfer of small-batch, small-sized components.
- Hydraulic Lifting Frame (High-End Custom Option) - Offers a hydraulic lifting range of 600-1050 mm, accommodating seated assembly and small-scale robotic loading/unloading; suitable for assembly lines producing medical devices or precision electronic components.
- Reinforced Integrated Steel Frame - Features a frame welded from square tubing with integrated horizontal and vertical bottom reinforcements, increasing the total load capacity to 5 tons. Capable of supporting stacked tooling and the concentrated assembly of heavy, small-sized parts.
Warranty and After-Sales Service System
- Warranty Period: 2-year warranty for the welding table body and 1-year warranty for accompanying fixtures; free warranty coverage excludes damage caused by human error (such as impacts) or severe burns from weld spatter.
- After-sales Support: 24-hour technical support for overseas customers via email or WhatsApp; provision of fixture configuration drawings and plans.
- Warranty Service: Free replacement or factory recalibration for defects in casting or drilling precision during the warranty period; free replacement parts in the event of fixture breakage.
- Value-added Services: Provision of English factory inspection reports, precision test data sheets, and CE certification documentation to meet import customs clearance requirements in Europe and the Americas.
FAQ
Q: Can this welding table be used for purposes other than welding?
A: Absolutely. Besides MIG/TIG welding, it works as a dedicated station for component assembly, dimensional inspection, layout marking and jig calibration.
Q: Can multiple small D16 tables be spliced together?
A: Yes. We supply splicing lock pins to connect several tables seamlessly, expanding the working area without purchasing one extra-large table. Dust collecting trays, welding fume brackets and transparent anti-spatter shields are also optional add-ons.
Q: What is your MOQ and production lead time?
A: MOQ is 1 piece for standard sizes 1000×800mm to 4000×2000mm. Standard models take 15-20 working days; customized sizes or special surface treatment take 25-30 working days.
Q: How to maintain the nitrided tabletop daily?
A: Clean welding spatter inside holes with nylon brushes only (no steel wire brushes). Apply thin anti-rust oil to holes weekly for humid coastal workshops. Lubricate moving parts of clamps regularly to avoid rust jamming.
Q: The locating pin cannot insert smoothly into holes, how to fix it?
A: The main reason is accumulated welding slag or slight rust inside holes. Clean residues and spray anti-rust lubricant. Never grind the hole inner wall to protect positioning precision.
Stop wasting time and cost on disposable custom jigs — our D16 1000x1000mm Modular Welding Table for Small Parts Assembly Operations is the cost-effective long-term solution for your small parts assembly operations.
We offer one-stop service including size selection, stand matching, complete D16 accessory sets and export packaging. Leave your message with your required table dimension, workpiece type and order quantity, and our sales manager will reply with a competitive quotation of the D16 1000x1000mm Modular Welding Table for Small Parts Assembly Operations within 24 hours. Start your inquiry now!
