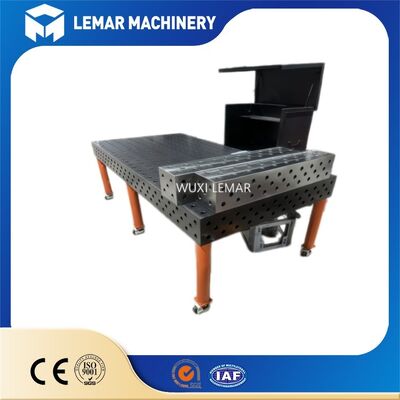

Custom Thickness D28 3D Welding Table 150mm 200mm Cast Plate
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
D28 3D welding table cast plate
,Custom thickness welding table 150mm
,200mm cast plate welding table
Our Custom Thickness D28 3D Welding Table (150mm / 200mm Cast Plate) is a heavy-duty, fully customizable cast iron welding platform designed for professional fabrication, mechanical engineering, and robotic welding production lines. Built with high-grade HT300 gray cast iron, this 5-sided 3D fixturing table delivers extreme rigidity, zero thermal deformation, and long-term precision stability for heavy-load, high-frequency welding work.
Available in 150mm standard heavy thickness and 200mm super heavy-duty thickness, and fully custom thickness upon request. All tables adopt standard D28 (Φ28mm) hole system with 100×100mm grid, fully compatible with universal 3D welding jigs, clamps, pins, and fixture accessories.
| Material | High-grade HT300 Gray Cast Iron |
| Hole Standard | D28 (Φ28mm), 100×100mm grid pitch |
| Table Thickness | Standard 150mm / 200mm (custom available) |
| Flatness Accuracy | ≤0.1mm / 1000mm (0.05mm ultra-precision optional) |
| Positioning Accuracy | ±0.03mm repeat tolerance |
| Surface Hardness | HB170-210 (base), HV400-700 (nitrided) |
| Structure | One-piece casting + reinforced bottom grid ribs |
| Processing | Rough milling + fine finishing + stress relief annealing |
| Optional Treatment | Shot blasting, integral nitriding, precision grinding, anti-rust coating |
- High Precision HT300 Cast Iron Body - One-piece cast structure with stress relief annealing treatment, completely avoiding bending, warping, and deformation after long-time high-temperature welding.
- Customizable Table Thickness - Standard 150mm / 200mm solid plate; support 250mm, 300mm custom thickness for special load requirements.
- Full 5-Sided D28 Hole Grid - Top surface + four vertical sides fully drilled with standard D28 holes, realizing 3D multi-angle clamping and positioning for frames, boxes, chassis, and irregular structures.
- Super Reinforced Bottom Rib Structure - Grid-type thickened reinforcing ribs greatly improve overall rigidity, shock absorption, and load capacity, ensuring no shaking during heavy clamping and robotic welding.
- Nitrided Anti-Stick Welding Surface - Optional integral ion nitriding treatment (HV400-520 hardness), high temperature resistance, anti-slag adhesion, easy cleaning, and strong wear resistance.
- High Repeat Positioning Accuracy - Hole tolerance H7, flatness ≤0.1mm/1000mm, verticality ≤0.05mm/200mm, suitable for mass production and precision welding.
- Free Splicing & Expansion - Multiple welding tables can be seamlessly combined to form ultra-large working surface for large structural parts and batch production lines.
Automotive frames, forklift & construction machinery parts
Robot automatic welding production lines
Steel structure fabrication, chassis & cabinet welding
Agricultural machinery, new energy equipment frames
Precision inspection, marking, and assembly workstations
Custom welding table length and width sizes
Nitriding / precision grinding / anti-corrosion treatment
Side T-slot, grounding holes, lifting holes, anchor holes
Heavy-duty adjustable legs, damping base, splicing accessories
2-year warranty for the cast iron table body
1-year warranty for supporting legs and accessories
Overseas installation guidance & English operation manual
Precision repair and surface refurbishment service
Compared with ordinary steel welding tables, our custom thick cast iron platform provides permanent stability, no deformation, higher precision, lower maintenance cost, and longer service life.
It is the preferred high-end fixture equipment for modern intelligent welding workshops and automated production lines, helping customers reduce rework rate, save custom fixture costs, and improve production consistency.
