High Precision 3D Welding Table 1000x1000mm D16 Welding Table
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 1-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
High Precision 3D Welding Table 1000x1000mm
,D16 Welding Table with Fixture
,1000x1000mm Welding Fixture Table

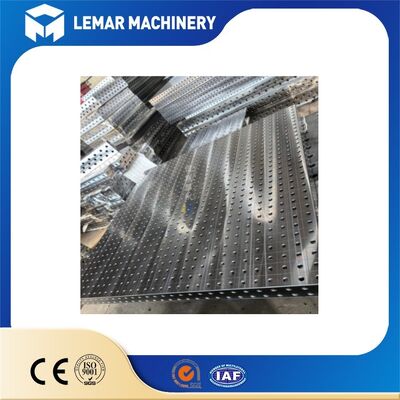

The D16 1000x1000mm high-precision 3D welding table is a professional modular fixturing platform designed for precision metal fabrication, robotic welding, custom assembly, and small-batch multi-variety production. Adopting the international standard D16 (Φ16mm) hole system with a dense 50mm grid pitch, this 5-sided fully perforated welding platform delivers ultra-high positioning accuracy and excellent thermal stability, perfectly solving the problems of traditional welding jigs such as poor versatility, low repeatability, and easy deformation.
Available in heavy-duty HT300 cast iron and lightweight Q355 steel versions, with full surface nitrided treatment, the table features wear resistance, splash resistance, and long-term precision retention. It is the ideal standard workstation for precision sheet metal, new energy parts, medical equipment, and automated robot welding workshops.
| Item | Technical Parameters |
|---|---|
| Product Model | 1000×1000mm D16 3D Welding Table |
| Overall Dimension | 1000mm (L) × 1000mm (W) |
| Hole Standard | D16 (Φ16mm standard positioning hole) |
| Grid Pitch | 50×50mm high-precision grid (±0.05mm) |
| Table Flatness | ≤0.1mm/1000mm (High precision 0-grade: ≤0.05mm/1000mm) |
| Hole Center Distance Tolerance | ±0.03~±0.05mm |
| Verticality of Side & Tabletop | ≤0.05mm/200mm |
| Surface Treatment | Full integral nitriding, HRC 42-48 hardness |
| Nitriding Layer Thickness | 0.08-0.12mm |
| Static Uniform Load | 2000KG (2 Tons) |
| Single Point Load | ≤500KG |
| Applicable Environment Temperature | ≤480℃ instantaneous welding temperature resistance |
| Structure | 5-sided full hole perforated design (top + four sides) |
| Optional Material | HT300 Grey Cast Iron / Q355 High Strength Steel |
- Eliminates the need for custom-made tooling: Traditional custom tooling for single-part production costs thousands to tens of thousands, whereas a single D16 welding table accommodates dozens of workpiece types, allowing the purchase cost to be recouped within 1-3 months
- 80% increase in changeover efficiency: Traditional tooling changeovers take 2-4 hours, while D16 modular fixtures enable setup changes in just 5-10 minutes
- Improved dimensional consistency: Manual marking errors range from 0.3 to 1 mm, whereas platform positioning offers ±0.05 mm accuracy, thereby reducing scrap rates
- Reduced labor costs: Eliminates the need for dedicated personnel to fabricate or modify tooling, thereby reducing fitter man-hours
Connection method: Uses extended locating pins and locking blocks via the side-mounted D16 holes; multiple 1-meter tables can be joined to form various configurations, such as 2000×1000, 2000×2000, or 3000×1000 mm
Assembly precision: Overall flatness error after assembly is ≤0.15 mm/2 m, with no stepped misalignment
Scalability advantage: Customers can initially purchase a single welding table for trial and add more tables later as needed, resulting in a lower initial investment
- Precision Upgrade: Class 0 ultra-high precision model, flatness ≤0.05mm/1000mm, designed for robotics applications
- Custom Dimensions: Selectable side heights of 100mm or 150mm, with increased tabletop thickness
- Custom Branding: Laser-engraved customer logo and model number on the tabletop
- Surface Finish Upgrade: Choice of black nitriding or natural-finish nitriding
- Complete Solution: Includes a matching set of D16 fixtures
- Special Processing: Integrated cable routing channels, dedicated tooling positioning slots, and anti-spatter guards
- ISO 9001 Quality System Certification
- CE Machinery Safety Certification (mandatory for EU market access)
- Factory CMM accuracy inspection report (listing measured values for flatness, hole spacing, and perpendicularity)
- Material analysis report (composition report for cast iron HT300 or steel plate Q355)
- Nitriding hardness inspection report
We provide customized sizes, full D16 fixture sets and factory direct prices.
Submit your inquiry below to get a detailed quotation within 24 hours.
