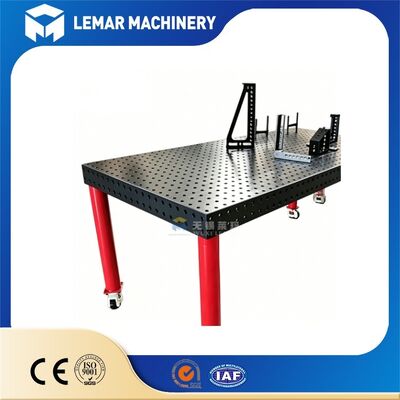

High precision D16 3D welding table for complex metal assembly
| MOQ: | 1 |
| Price: | 500-1000 USD |
| Standard Packaging: | 3000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/A,D/P,T/T,Western Union |
| Supply Capacity: | 500 units/month |
High precision D16 3D welding table for complex metal assembly
- Three-dimensional flexibility, one-time clamping: Five-hole system + full series of fixtures eliminate the need for multiple flipping/aligning of complex components, completing welding in a single clamping, improving efficiency by 30-50%.
- High precision, less rework: Micron-level flatness and hole position accuracy, controllable welding deformation, good dimensional consistency, and reduced rework rate.
- High versatility, reduced costs: One platform adapts to multiple varieties, eliminating the need for repeated customization of special tooling, making it extremely cost-effective for small and medium batch production.
- Good rigidity, deformation resistance: Thickened panels + reinforcing ribs + nitriding treatment ensure no deformation under heavy loads and stable precision over long-term use.
- Easy operation, labor saving: Standardized fixtures allow for quick positioning/locking, eliminating the need for highly skilled technicians; ordinary welders can operate with precision.
Accuracy Specifications:
- Flatness: ≤0.02mm/1000mm
- Hole Spacing Tolerance: ±0.05mm
- Hole Center Accuracy: ±0.03mm
- Perpendicularity: ±0.1mm/200mm
| NO. | Product Type | Size (mm) | Height (mm) | Number of Compatible Support Legs |
|---|---|---|---|---|
| 1 | 3D Steel / Cast iron Welding table | 1000x1000 | 200/150/100 | 4 |
| 2 | 3D Steel / Cast iron Welding table | 1000x1200 | 200/150/100 | 4 |
| 3 | 3D Steel / Cast iron Welding table | 1000x1500 | 200/150/100 | 4 |
| 4 | 3D Steel / Cast iron Welding table | 1000x2000 | 200/150/100 | 4 |
| 5 | 3D Steel / Cast iron Welding table | 1500x1500 | 200/150/100 | 4 |
| 6 | 3D Steel / Cast iron Welding table | 2400x1200 | 200/150/100 | 4 |
| 7 | 3D Steel / Cast iron Welding table | 3000x1500 | 200/150/100 | 4 |
| 8 | 3D Steel / Cast iron Welding table | 4000x2000 | 200/150/100 | 4 |
| 9 | 2D Steel / Cast iron Welding Table | 1000×1000 | 200/150/100 | 4 |
| 10 | 2D Steel / Cast iron Welding Table | 1200×1200 | 200/150/100 | 4 |
| 11 | 2D Steel / Cast iron Welding Table | 1500×1500 | 200/150/100 | 4 |
| 12 | 2D Steel / Cast iron Welding Table | 2000×1000 | 200/150/100 | 4 |
This is our standard size welding table. Besides, we also provide non-standard customized services. Please feel free to contact us for more details if you have any requirements.
Machining Process: Overall blank annealing for stress relief → rough milling → finish milling of the table surface and five-hole system → CNC drilling and reaming of positioning holes → overall gas nitriding → precision grinding to correct flatness.
Stress relief treatment prevents long-term welding and heat deformation, ensuring consistent accuracy.
Hole Standards: D16 standard hole diameter, 50mm grid, internationally compatible, fully interchangeable with mainstream European and American brand parts, no need for custom-made fixtures.
Standard package includes: flatness inspection report, hole spacing accuracy inspection report, and material analysis report; CE certification and ISO quality system related documents can be provided to meet customs clearance and factory audit requirements for customers in Europe, America, the Middle East, and Australia.
If you're interested in the High Precision D16 3D Welding Table for complex metal assembly and want to purchase it, please feel free to contact us for detailed information.
