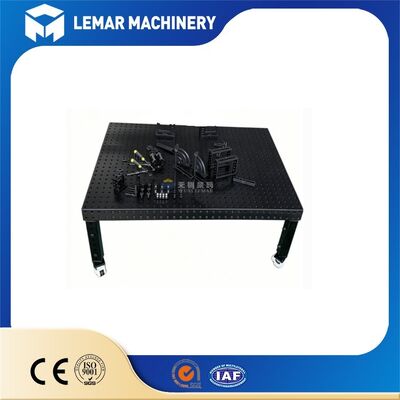

D16 3D Welding Table 2400X1200mm Heavy Duty Steel Modular Welding Station
| MOQ: | 1 |
| Price: | 500-1000 USD |
| Standard Packaging: | 3000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | L/C,D/P,T/T,Western Union,D/A |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Table Dimension:
2400mm × 1200mm
Hole Diameter:
Φ16mm
Grid Spacing:
50mm × 50mm Standard Matrix
Working Surface:
5-sided Full Hole Design (top + Four Side Faces)
Main Material:
Q355 / S355J2N High-strength Steel/HT300 Cast Iron
Flatness:
±0.1mm / 1000mm
Hole Position Accuracy:
±0.03mm
Verticality Of Working Surface:
±0.1mm / 200mm
Nitriding Hardness:
HV450–630
Product Description
D16 3D Welding Table 2400X1200mm Heavy Duty Steel Modular Welding Station
Our premium 2400×1200mm heavy-duty D16 steel 3D modular welding station delivers superior quality and efficient performance, safeguarding the quality and efficiency of your welding projects.
- High-precision positioning: Hole grid accuracy ±0.05mm, high repeatability, ensuring consistency of batch workpieces and reducing rework.
- Flexible and versatile: One platform + fixture can adapt to various workpieces, eliminating the need for special tooling and shortening changeover time (from days to hours).
- Heavy-duty stability: Q355 steel/cast iron + reinforcing ribs, high rigidity, and deformation resistance, suitable for heavy workpieces and long-term welding operations.
- 3D three-dimensional operation: Five working surfaces support multi-angle clamping, enabling one-time clamping and welding of complex structural components (such as frames, boxes, trusses).
- Durable and easy to maintain: Nitrided surface has high hardness, preventing weld slag and corrosion, simple daily cleaning, and long service life.
Key Technical Parameters
| Model | 2400×1200mm D16 3D Welding Table (Customizable in any size) |
| Material | Tabletop - Q355 steel / HT300 cast iron; reinforced rib base + heavy-duty support legs |
| Working Surface | 5-sided fully machined (top surface + 4 side faces), side face height: 100-200mm |
| Squareness | ≤0.1mm/200mm |
| Flatness | ≤0.1mm/1000mm |
| Load Capacity | Static load capacity 2-5 tons (depending on material and structure) |
| Tabletop Thickness | 12mm |
Production Process Details
- Overall Cutting: The entire machine uses laser cutting of a single plate, eliminating spliced fragments, resulting in strong integrity and resistance to cracking and deformation
- CNC Milling: The table and five working surfaces are all precision milled by CNC, achieving hole positions and flatness in a single operation, reaching a precision unattainable by manual grinding
- Hole Machining Process: D16 round holes are machined using a three-step process of drilling, boring, and reaming, resulting in smooth, burr-free inner walls, smooth pin insertion and removal, and no play over long-term use
- Overall Tempering: After welding, stress-relieving tempering treatment is performed to completely eliminate internal stress, ensuring no warping or deformation under long-term heavy loads and high-temperature welding
- Surface Treatment: Standard blackening for rust prevention, optional overall gas nitriding, resistant to weld slag burning, spatter, and oil stains, making daily cleaning simple
Load Bearing and Safety Performance
- Static uniform load-bearing capacity: The tabletop weighs 3 tons, and the overall load-bearing capacity of the frame can reach 6 tons
- Heavy pressure resistance: Can withstand heavy pressure and lifting pressure of heavy workpieces without collapsing or twisting
- Stable leveling: Leg strap with horizontal adjustable foot cup, can be leveled even on uneven ground, and placed firmly without shaking
- Safety design: Edge and corner processing to avoid collision and injury in the workshop, industrial safety design
Packaging, Logistics, and After-Sales Service
- Packaging: Solid wood tray + rainproof wrapping film, export standard fumigation packaging, anti collision, anti moisture
- Logistics: Suitable for sea, land, and full container/bulk cargo transportation, with size standards suitable for container loading
- After sales: The precision of the countertop is guaranteed, the structure will not crack or deform for life, and accessories can be supplied for a long time
Frequently Asked Questions
Q: Is it easy to operate for new workers?
A: Very easy. No need to draw reference line or make customized fixture. Workers can finish positioning and clamping in a few minutes.
Q: What industries is this table suitable for?
A: Metal fabrication, chassis & frame welding, automotive parts, engineering machinery, warehouse rack, trailer frame, school welding training and custom non-standard structures.
Q: Do you support customized size and design?
A: Yes. We provide custom size, leg type, hydraulic lifting, caster moving base and special fixture package.
Q: What is your warranty policy?
A: 1 year warranty for whole structure, permanent technical support. Spare parts and accessories can be supplied all the time.
Q: Can several tables be connected together?
A: Sure. Multiple 2400×1200 tables can be spliced freely to make a larger working area for long and big workpieces.
Got your eye on our D16 3D Welding Table 2400×1200mm Heavy-Duty Steel Modular Welding Station? Reach out now to get your exclusive quote and the best possible price!
