Professional D16 3D Nitriding Welding Table with Modular Fixturing System
| MOQ: | 1 PCS |
| Price: | 500-1000 USD |
| Standard Packaging: | 3000*2000*200mm |
| Delivery Period: | 15-20 work days |
| Payment Method: | T/T,D/P,Western Union,D/A,L/C |
| Supply Capacity: | 500 units/month |
Detail Information
Place of Origin
WUXI
Brand Name
WUXI LEMAR
Certification
CE
Model Number
D16
Document
Hole Diameter:
50 Mm × 50 Mm (±0.05 Mm)
Table Flatness:
≤0.1 Mm/m
Perpendicularity:
0.05 Mm/200 Mm
Positioning Accuracy:
±0.05 Mm
Surface Hardness:
HRC 45 (after Nitriding)
Surface Roughness:
Ra 3.2 μm
Loading Capacity:
2–5 Tons
Material:
High-strength Steel (Q355/S355J2N)/HT300
Surface Treatment:
Gas Nitriding
Highlight:
D16 3D welding table with fixturing system
,Modular welding table for professional use
,Nitriding welding table with durable surface
Product Description

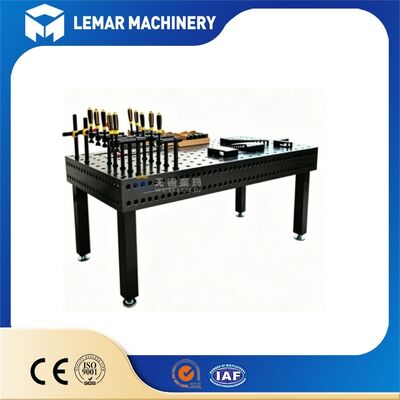

Professional D16 3D Nitriding Welding Table with Modular Fixturing System
Product Overview
The Professional D16 3D Nitriding Welding Table with Modular Fixturing System is an industrial welding platform featuring high precision, three-dimensional positioning, surface hardening, and freely combinable fixtures. Designed for precision welding, assembly, and inspection of small and medium-sized parts.
- 3D Positioning: 5-face system with D16 precision mesh enables accurate workpiece positioning at any spatial position/angle, with repeat positioning accuracy of ±0.03mm
- Quick Clamping: Modular fixtures lock quickly with D16 positioning pins/bolts, eliminating need for welding/drilling - complex workpiece clamping completed within 10 minutes
- Rigid Support: Thick tabletop with reinforced ribs and adjustable support feet prevents deformation and shaking during welding, ensuring weld seam consistency
- Nitriding Protection: Hard surface resists welding slag adhesion and splash corrosion, maintaining stable accuracy for long-term use with minimal daily maintenance
Technical Specifications
Custom configurations available upon request.
| NO | Welding Table Specification | Hole Diameter | Flatness | Material |
|---|---|---|---|---|
| 1 | 3000mm × 1500mm | D16 welding table | 0.1/1000mm | Cast iron/steel |
| 2 | 2400mm × 1200mm | 0.1/1000mm | Cast iron/steel | |
| 3 | 2000mm × 1500mm | 0.1/1000mm | Cast iron/steel | |
| 4 | 2000mm × 1000mm | 0.1/1000mm | Cast iron/steel | |
| 5 | 1500mm × 1000mm | 0.1/1000mm | Cast iron/steel | |
| 6 | 1200mm × 1000mm | 0.1/1000mm | Cast iron/steel | |
| 7 | 1000mm × 1000mm | 0.1/1000mm | Cast iron/steel |
Typical Application Scenarios
- Automotive Industry: Welding and testing of frames, chassis components, seat frames, and new energy battery frames
- Construction Machinery: Welding of small structural components, boxes, brackets, and pipelines
- Sheet Metal/Precision Manufacturing: Splicing of thin plates, complex cavities, welding of aluminum/stainless steel parts
- Robot Welding: High-precision positioning, suitable for robot automated welding lines
Recommended Accessories
- Supporting Feet: Adjustable horizontal feet (±50mm) with locking casters for easy movement and fixation
- Expansion Parts: U-shaped/L-shaped square box, extension table top for oversized D16 welding tables
- Auxiliary Tools: Positioning pins, M16 bolts, anti-welding slag cover plates, precision testing rulers
Frequently Asked Questions
Can we visit your factory?
Of course, you are welcome to visit us anytime!
How can we get a quotation?
Please provide specifications including material, size, aperture, and other requirements.
How long is the delivery time?
Typically 15-20 days after we receive your payment.
What is the packaging?
Inner packing - plastic bag. Outer packing - export wooden box.
Can I get the products with our logo and design?
Yes, most of our products can be customized according to your requirements.
Interested in our Professional D16 3D Nitriding Welding Table with Modular Fixturing System? Contact us for more details today.
