High flatness D16 3D welding table for precise component alignment
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D16 3D welding table
,high flatness welding table
,welding fixture table alignment

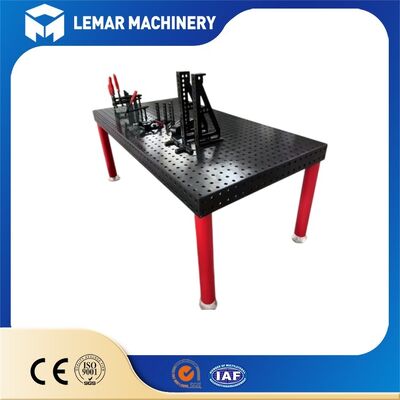

This D16 3D welding fixture platform uses Φ16 H7 precision holes and a 50 mm grid layout. Five-side machined surfaces enable 3-axis fixturing to hold parts aligned accurately during assembly and welding. Stress relief and nitriding options prevent deformation and spatter buildup. All D16 clamps, pins and blocks are cross-compatible. Suitable for manual and robotic welding of sheet metal and tubular structures.
| Item | Specification |
|---|---|
| Hole System | Φ16 mm, H7 tolerance |
| Grid Pitch | 50 × 50 mm (±0.05 mm) |
| Machined Faces | 5 sides (top + four sides) |
| Flatness | ≤0.1 mm / 1000 mm (standard); ≤0.05 mm / 1000 mm (precision robotic grade) |
| Verticality | ≤0.1 mm / 200 mm |
| Material | Q355 steel / HT300 cast iron |
| Surface Treatment | Nitriding (HV550–900) / black oxide |
| Stress Relief | Heat treatment stress relief optional |
| Compatibility | All D16 fixtures interchangeable, multi-table splicing supported |
| Custom | Custom sizes available upon request |
Accessories for the D16 and D28 welding table systems are not interchangeable. The accessory system includes:
- Positioning: Quick-locking pins (wedge-style / ball-lock pins), positioning stops, V-blocks (for positioning round tubes), L-shaped square blocks, angle squares, and locating pins.
- Clamping: Screw clamps, toggle clamps, pneumatic clamps, and hydraulic clamps.
- Support: Adjustable support pins, riser blocks, and angled support blocks.
- Auxiliary: Grounding clamps, spatter trays, protective cover plates, and measuring scales.
- Clean off weld spatter after each use; do not aggressively grind the table surface, as this can damage the nitrided layer and compromise flatness.
- Regularly clean and apply grease to locking pins to prevent wear or seizing within the holes.
- In humid environments, take precautions against rust; while nitrided surfaces offer superior rust resistance compared to standard steel, they are not permanently rust-proof.
- Periodically verify the flatness of the table using a spirit level and make fine adjustments via the leveling feet; avoid subjecting the table surface to high-impact blows from heavy objects at any single point.
- Do not strike an arc directly on the table surface using high current for extended periods, as this can cause ablation (erosion) of the working surface.
We provide a 12-month warranty for the D16 welding table, covering manufacturing defects (processing error, material problem). The warranty does not cover damage caused by improper operation, impact, overload, arc burning on the tabletop, or normal wear of fixtures, locking pins and clamping parts.
Lifetime free technical consultation. We support fixture layout guidance, splicing scheme design, flatness inspection guidance and installation instruction. We can send you operation manuals, 3D files and installation videos on request.
All D16 standard accessories are in stock. We supply replacement pins, clamps, protective plugs and other wearing parts at factory cost anytime, with fast delivery worldwide.
Reply to your service inquiry within 24 working hours. If technical issues occur, we will provide troubleshooting steps and solutions remotely.
If you need to add new fixtures or extend your table set later, our D16 system keeps full compatibility for future expansion.
Available terms: EXW, FOB, CIF, CFR, DAP, DDP
- EXW: Factory pickup at our warehouse
- FOB: We handle export customs, you arrange sea/air freight
- CIF: We cover sea freight + insurance to destination port
- DAP / DDP: Door-to-door service (DDP includes import duty & tax, quote upon request)
Stop wasting time on inefficient custom jigs. Our High flatness D16 3D welding table for precise component alignment helps you achieve stable, repeatable component alignment and cut fixture costs. Drop your inquiry today, and let us work out a suitable plan for your workshop or robotic welding station.
