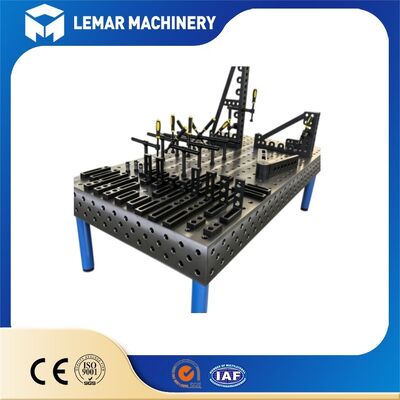

D28 2D 3D welding table for custom metal assembly
| MOQ: | 1 PCS |
| Price: | 500-1500 USD |
| Standard Packaging: | 4000*2000*200mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | T/T,D/P,D/A,L/C |
| Supply Capacity: | 500 units/month |
D28 2D 3D welding table
,welding table for metal assembly
,welding fixture table custom assembly
Our D28 2D 3D welding table for custom metal assembly is designed to solve the pain points of frequent job switching in custom metal shops. Adopting the industry-standard D28 100mm grid hole system, this table works for simple flat workpieces in 2D mode and complex spatial weldments with its 3D side holes. Stable flatness, strong load capacity and good heat-deformation resistance keep your assembly dimensions consistent batch after batch. It is fully compatible with mainstream D28 fixture kits and can be spliced together for extra-large workpieces, ideal for manual welding and automated robotic welding lines.
| Hole specifications | φ28 H7; grid spacing: 100mm ± 0.05mm |
|---|---|
| Flatness | ≤0.1mm/1000mm; high-precision version: 0.05mm/1000mm (for robotic welding) |
| Material options | HT300 cast iron (superior vibration damping) or Q355 steel (higher load-bearing capacity) |
| Surface treatment | Optional nitriding (HV550-900) for enhanced wear resistance and protection against weld spatter adhesion |
| Load capacity | 3–5 tons (standard static load); up to 10 tons for heavy-duty versions |
| Modular design | Units can be joined using locating pins to create large-scale, extra-long fixtures for steel structures |
| Accessories | Comprehensive range of clamping tools, including quick-locking pins, positioning squares, clamps, V-blocks, and support blocks |
The base is not merely a flat plate. For cast-iron welding tables, dense reinforcing ribs are cast directly into the structure; for steel-plate welding tables, a thickened base plate is combined with a welded grid of ribs. These designs are engineered to resist thermal deformation during welding and sagging under long-term heavy loads. Many low-cost competing products lack such robust reinforcement, causing them to quickly lose flatness after repeated welding or exposure to heavy pressure.
- Standard plate thickness: 25mm for steel models; 30mm for HT300 cast-iron models.
- Standard overall height: 200mm; a 150mm low-profile version is also available.
- A unified tooling system that accommodates a wide range of non-standard, custom-fabricated parts—eliminating the need for repeated, individual fixture fabrication and significantly reducing tooling costs.
- Switching between products requires only a reconfiguration of the clamps, enabling rapid changeovers—an ideal solution for metal fabrication shops handling high-mix, low-volume production.
- Features a standard D28 hole pattern, ensuring compatibility with a broad market of third-party fixtures and expansion components, so you are never locked into a single brand.
- Provides a stable, flat surface that minimizes welding distortion, reduces the need for rework, and lessens the effort required for post-weld correction.
- Compatible with both manual welding and robotic automation, offering a seamless path for future production line upgrades.
- Certification: CE-certified; material certificates, dimensional inspection reports, and heat treatment reports can be provided.
- Warranty: 12 months for the main tabletop; locking pins are considered consumables and are excluded from the warranty (extended warranty options are negotiable).
- Packaging: Fumigation-free solid wood export crates; tabletops are wrapped in protective film with rigid corner guards to prevent damage during ocean transit. Large items are shipped unpackaged but secured with steel strapping.
A: We supply PDF assembly instructions. Short installation videos can be shared via WhatsApp or email upon request. We do not send on-site technicians overseas by default.
A: Yes, dual metric/imperial laser marking is an available custom option, popular for customers in the US and mixed-unit workshops.
A: Standard common sizes are available within 15–20 working days. Custom dimensions, ultra-precision tolerance, special steel grades and nitriding upgrades usually take 15–25 working days.
A: Sure. We issue CI, PL and other supporting shipping documents matching your shipment term (EXW, FOB, CIF, DAP, DDP). We follow your instruction on product description and value declaration.
A: MOQ is 1 unit. We accept single-table orders for small fabricators, schools, robot integrators and workshop trial projects.
If you are looking for a reliable fixturing solution for your workshop, our D28 2D 3D welding table for custom metal assembly is ready to match your custom fabrication needs. Send us your workpiece drawings, size requirements or questions, and we will prepare a tailored quotation and technical proposal for you shortly.
