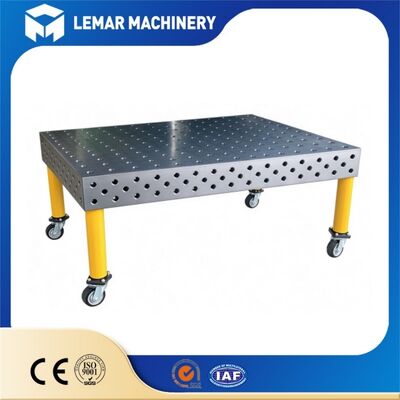

D28 Welding Table For Sheet Metal Fixture Setup Operations
| MOQ: | 1 |
| Price: | 500USD-1500USD |
| Standard Packaging: | 4000mm*2000mm*300mm |
| Delivery Period: | 15-25 work days |
| Payment Method: | D/A,L/C,D/P,T/T |
| Supply Capacity: | 500 units/month |
D28 welding table sheet metal
,welding fixture table setup operations
,D28 welding table fixture setup
Our D28 welding table is engineered specifically for sheet metal fabrication workshops, focusing on rapid fixture setup and repeatable alignment for thin metal components. The standardized 50 mm hole grid supports fast assembly of temporary jigs and locating blocks for sheet metal bending, tack welding and trimming work.
The solid Q355 steel plate undergoes strict nitriding treatment to resist spatter and surface abrasion, avoiding indentation and dimensional drift when clamping thin panels. Every unit is fully inspected before shipment to guarantee consistent flatness, which is critical for reducing rework in high-volume sheet metal production and custom job shop orders.
| Parameter | Specification |
|---|---|
| Grid System | D28 – 28 mm holes on 100 mm centers |
| Hole Tolerance | H7 precision |
| Tabletop Material | HT300 cast iron / Q355 steel |
| Tabletop Thickness | 100 mm |
| Surface Treatment | Nitrided (HV ≥ 600) |
| Flatness Tolerance | ±0.1 mm per m² |
| Static Load Capacity | 5,000 kg per table |
| Standard Sizes | 1500×1000, 2000×1000, 3000×1500 mm |
| Leg Height | 850 mm (custom heights available) |
| Leg Construction | 80×80 mm square tube, 5 mm wall |
| Leveling Feet | M24 threaded, 50 mm pad |
| System | Material | Size (mm) | Weight (kg) |
|---|---|---|---|
| D28/D16 | HT300 cast iron / Q355 steel | 1000×1000×200/150 | 300 |
| D28/D16 | HT300 cast iron / Q355 steel | 1000×2000×200/150 | 520 |
| D28/D16 | HT300 cast iron / Q355 steel | 1200×1200×200/150 | 400 |
| D28/D16 | HT300 cast iron / Q355 steel | 1200×2400×200/150 | 800 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×1000×200/150 | 420 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×1500×200/150 | 600 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×2000×200/150 | 800 |
| D28/D16 | HT300 cast iron / Q355 steel | 1500×3000×200/150 | 1150 |
| D28/D16 | HT300 cast iron / Q355 steel | 2000×3000×200/150 | 1500 |
| D28/D16 | HT300 cast iron / Q355 steel | 2000×4000×200/150 | 2100 |
The regular D28 hole grid lets operators build and tear down sheet metal fixtures in minutes. There is no need for custom machining for most standard panel shapes, greatly shortening preparation time for small-batch sheet metal runs.
The hard nitrided layer prevents sharp indentations and weld spatter buildup on the tabletop. It keeps the working surface smooth, so delicate thin sheet parts will not get scratched or deformed during clamping and welding.
The reinforced base plate structure distributes clamping pressure evenly. Even when securing thin and flexible sheet panels, the table surface stays stable and avoids local bending that causes assembly deviations.
All standard D28 clamps, stops and positioning blocks fit seamlessly. You can expand your fixture library gradually and reuse existing accessories across different sheet metal projects without extra modification.
Simple height adjustment on each support leg helps you calibrate the horizontal plane quickly. Stable leveling ensures uniform gaps when fitting paired sheet metal parts and minimizes fit errors.
Each table comes with a complete test report covering flatness, hole accuracy and hardness. These documents help sheet metal fabricators meet internal quality checks and customer audit requirements.
- Batch production of steel frame structural components
- Heavy steel beam welding and assembling work
- Construction machinery structural part manufacturing
- Container and trailer frame mass fabrication
- Steel workshop high-volume welding production lines
- Prefabricated metal component processing
- Large steel-structure prototype batch trial-production
- Future-Proof Investment – Buy once, expand forever. No more replacing tables as your business grows.
- Industry Standard Compatibility – The D28 grid works with all major accessory brands, with no proprietary lock-in.
- Precision That Lasts – Nitrided surface plus cast iron construction delivers years of accurate fixturing.
- Factory Direct Pricing – We manufacture our own tables. No middlemen, no markup – just quality at a fair price.
- Customization Available – Need a special size, height or feature? We build tables to your exact specifications.
If you are looking for a reliable precision platform to speed up sheet metal fixture setup in your workshop, send your preferred dimensions and accessory list to our team. We can prepare full quotations covering EXW, FOB and CIF terms for your target port. Secure your stable sheet metal fabrication workstation with our D28 welding table today.
